ABB REM615E_1G HBMBCAAJABC1BNN11G_Xiamen XingRuiJia Import and Export CO,LTD

Model：ABB REM615E_1G HBMBCAAJABC1BNN11G

Brand: ABB
Price range (USD): 1000-2000
Country: CHINA
Parameter: Product model: REM615E21G HBMBCAAJABC1BNN1G1
Manufacturer: ABB
Product type: Transformer protection and control relay
Overcurrent protection: multi-stage overcurrent protection (IEC/ANSI)
Differential protection: Transformer differential protection (87T)
Restricted ground fault protection: optional
Overload protection: supported
Low voltage protection: Supports
Overvoltage protection: Supports
Frequency protection: Supports
Communication interface: IEC 61850, Modbus RTU/TCP, DNP3
Working temperature: -40 ° C to+70 ° C
Installation method: disk mounted

ABB Relion ® The series of protection and control relays are widely used in power systems due to their excellent performance and comprehensive functions, and REM615E1G HBMBCAAJABC1BNN1G1 is a multifunctional intelligent device designed specifically for transformer protection and control in this series. This compact REM615E1G HBMBCAAJABC1BNN1G1 relay integrates multiple advanced protection algorithms, control functions, measurement and monitoring functions, providing reliable and comprehensive protection for power transformers and achieving intelligent management of transformers. As a relief ® A member of the 615 series, REM615E1G HBMBCAAJABC1BNN1G1 inherits the easy installation, debugging, and use characteristics of this series, while also possessing strong communication capabilities, which can be seamlessly integrated into substation automation systems for remote monitoring and control. It plays a crucial role in ensuring the safe and stable operation of power transformers, improving the reliability and intelligence level of the power grid.

Technical specifications
Product model: REM615E21G HBMBCAAJABC1BNN1G1
Manufacturer: ABB
Product type: Transformer protection and control relay
Overcurrent protection: multi-stage overcurrent protection (IEC/ANSI)
Differential protection: Transformer differential protection (87T)
Restricted ground fault protection: optional
Overload protection: supported
Low voltage protection: Supports
Overvoltage protection: Supports
Frequency protection: Supports
Communication interface: IEC 61850, Modbus RTU/TCP, DNP3
Working temperature: -40 ° C to+70 ° C
Installation method: disk mounted

Main features and advantages
The ABB REM615E21G HBMBCAAJABC1BNN11G transformer protection and control relay is renowned for its comprehensive protection functions and advanced technical features. It integrates multiple protection components, including multi-stage overcurrent protection, sensitive and reliable transformer differential protection (87T), and optional restrictive ground fault protection, which can effectively deal with various transformer faults such as winding turn to turn short circuit, phase to phase short circuit, ground fault, and external short circuit. In addition, REM615E1G HBMBCAAJABC1BNN1G1 also has functions such as overload, overvoltage/undervoltage, and frequency protection, providing comprehensive protection for the safe operation of transformers.

In addition to powerful protection functions, REM615E1G HBMBCAAJABC1BNN1G1 also has advanced control and monitoring functions. It can control primary equipment such as circuit breakers and isolating switches, and provide comprehensive measurement data, including current, voltage, power, electrical energy, etc. The built-in fault recording function can record the changes in electrical quantities when faults occur, providing strong basis for fault analysis and diagnosis. As a relief ® As a member of the series, REM615E1G HBMBCAAJABC1BNN1G1 supports multiple standard communication protocols, such as IEC 61850, Modbus RTU/TCP, and DNP3, making it easy to communicate with substation automation systems and achieve remote transmission and control of data. Its compact structural design and user-friendly interface make installation, debugging, and operation more convenient.

Application area

ABB REM615E1G HBMBCAAJABC1BNN11G transformer protection and control relay is widely used for the protection and control of power transformers of various voltage levels. REM615E1G HBMBCAAJABC1BNN1G1 can provide reliable protection for main transformers, step-up transformers, step-down transformers, and plant transformers in power plants, transmission substations, and distribution systems of industrial and mining enterprises. Its comprehensive protection functions and flexible configuration options enable it to adapt to transformers of different capacities and connection methods. By integrating into the substation automation system, REM615E1G HBMBCAAJABC1BNN1G1 can achieve remote monitoring, control, and diagnosis of transformers, improving the automation level and operational efficiency of the power grid. Whether it is the construction of a new substation or the renovation and upgrading of an existing substation, REM615E1G HBMBCAAJABC1BNN1G1 is an economical, efficient, and reliable solution for transformer protection and control.

Related products

The products related to REM615E21G HBMBCAAJABC1BNN11G transformer protection and control relays include:
Other Relions ® The 615 series relays, such as REL615 for line protection and REF615 for feeder protection, have similar hardware and software platforms and are easy to integrate and maintain.
Relion ® 620 series and 630 series relays: higher performance protection and control relays that provide more advanced functionality and a more flexible range of applications, suitable for more complex power systems.
ABB power automation system: including software platforms such as MicroSCADA Pro and PCM600, used for relay configuration, monitoring, and data management.
ABB circuit breakers and isolating switches: used in conjunction with REM615E21G HBMBCAAJABC1BNN1G1 to achieve protection and control of transformers.
Current Transformer (CT) and Voltage Transformer (VT): Provide accurate current and voltage signal inputs for REM615E1G HBMBCAAJABC1BNN1G1.
Communication module and interface converter: used to implement the conversion between REM615E21G HBMBCAAJABC1BNN1G1 and different communication media and protocols.
These related products together build a complete transformer protection and control system, ensuring the safe and stable operation of the power system.

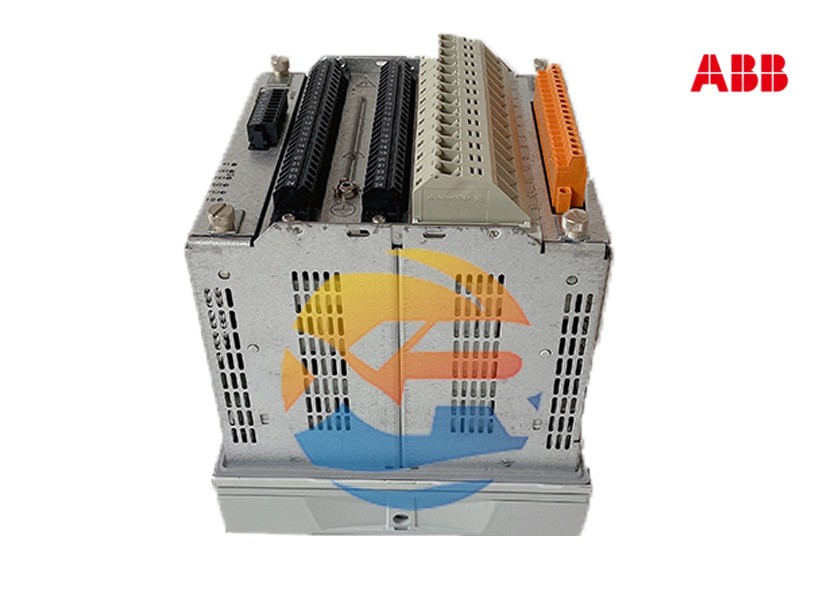

Photo Gallery
