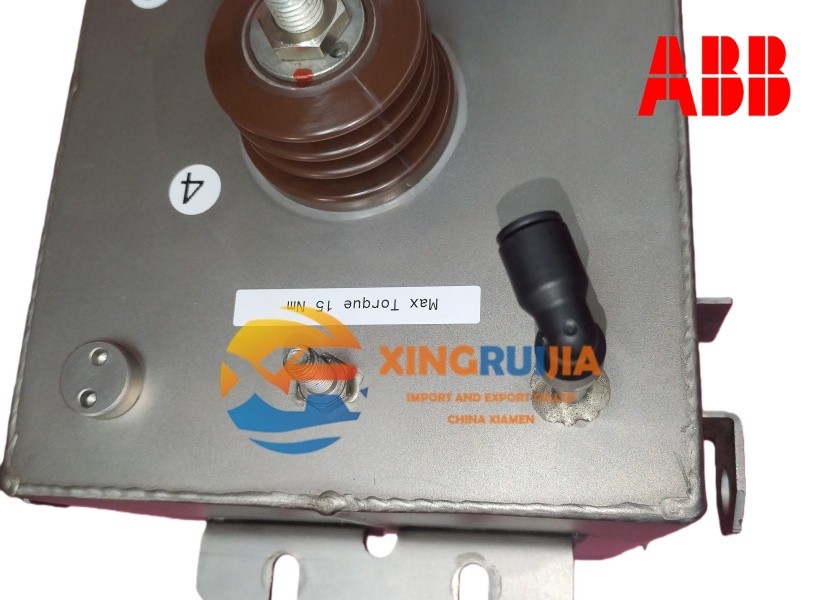

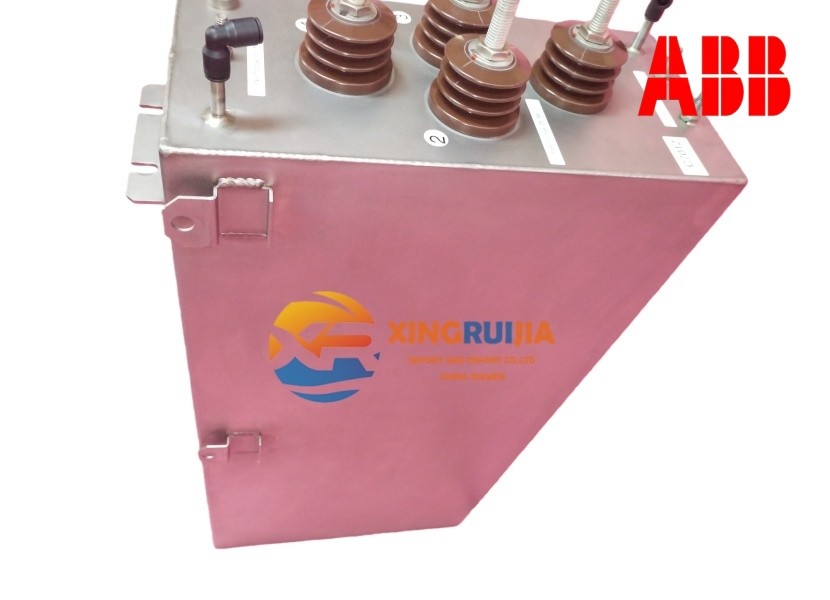

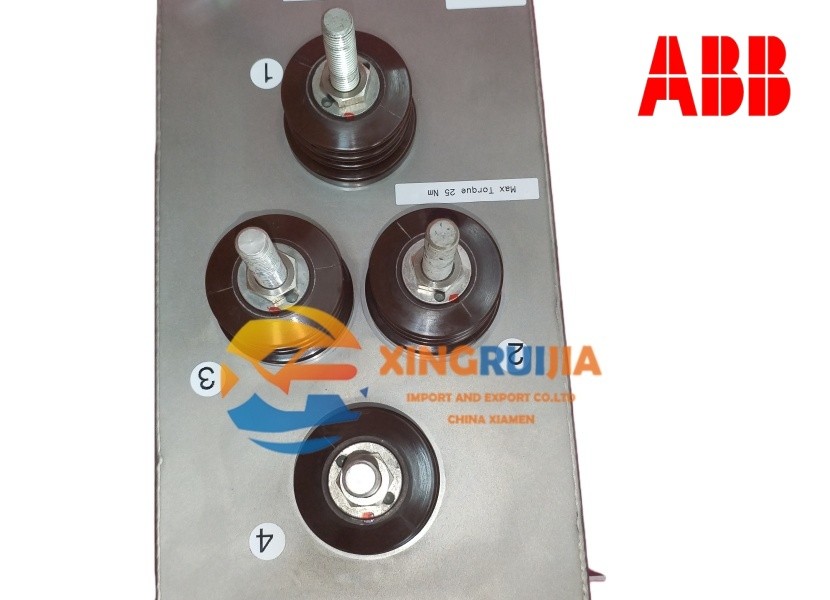

ABB DKTFM418B / 3BHB015651P0001 Product Overview

Product Type:
High-voltage film capacitor / thyristor triggering module. It is commonly used in ABB variable-frequency drives (VFDs), drive systems, and DCS (Distributed Control Systems) for power conversion and power-factor correction.

Key Technical Parameters

Rated capacitance: approx. 1600 µF

Rated voltage: approx. 2866 V (high-voltage withstand)

Operating frequency: kHz range (depending on the specific application)

Power range: suitable for medium- to high-power motor drives (from tens of kilowatts up to hundreds of kilowatts)

Cooling method: natural convection

Operating temperature: -20 °C to +60 °C

Mechanical dimensions: standard module size, suitable for panel or rack mounting

Main Functions

Provides high-voltage energy storage and filtering for inverters and drive systems, improving power factor and reducing harmonics.

Enables precise thyristor control via an adjustable firing angle, supporting a 0°–180° control range.

Equipped with built-in protection circuits such as overvoltage and mis-triggering protection, as well as status indicator LEDs for convenient on-site monitoring.

Typical Application Scenarios

Industrial automation fields such as power-plant DCS monitoring systems, intelligent flat glass tempering furnaces, PLC-based conveyor control, fire-fighting water supply control, and constant-flow control of chemical dosing systems.

Power conversion and energy storage in ABB medium- and high-voltage VFDs and drive systems.

Conclusion

The ABB DKTFM418B / 3BHB015651P0001 is a film capacitor and triggering module specifically designed for high-voltage power conversion. With large capacitance, high-voltage capability, low losses, and multiple protection features, it is widely used in industrial automation and electric drive systems.
