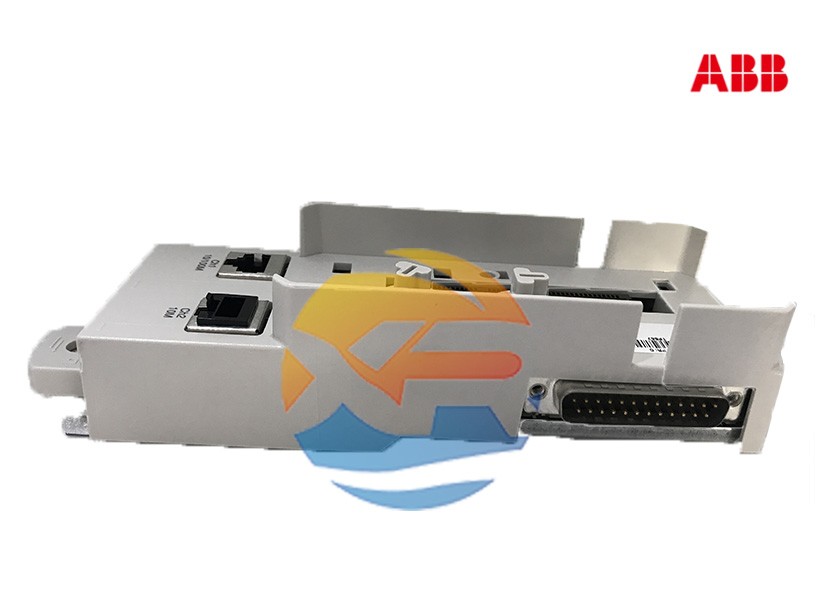

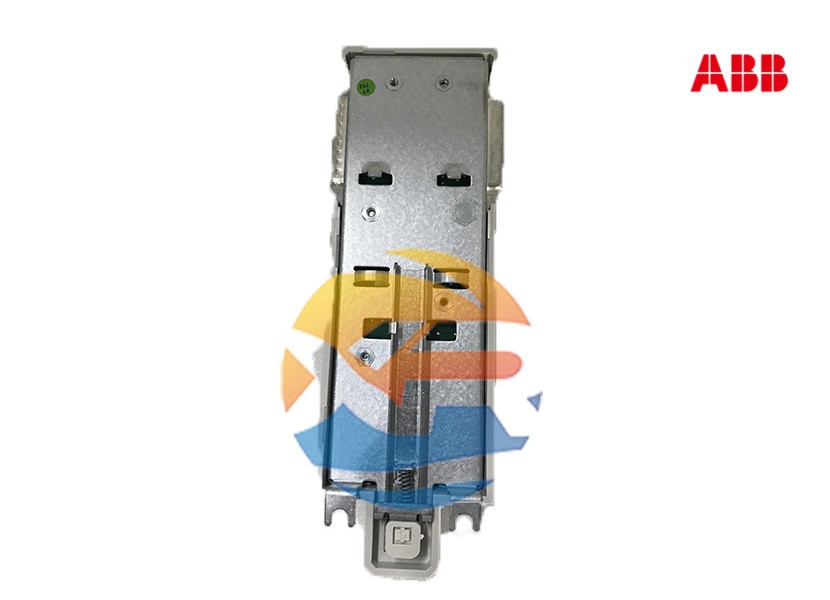

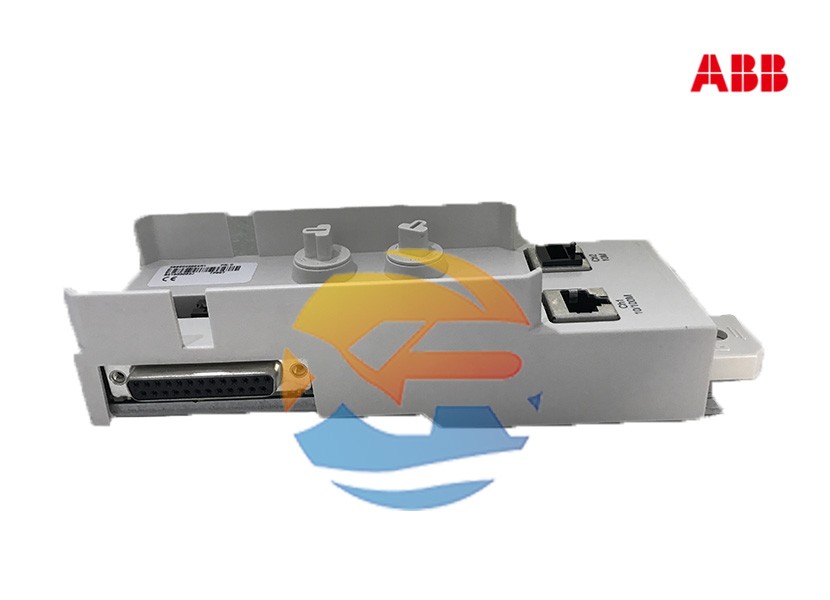

ABB TP867 3BSE043664R1
The ABB TP867 3BSE043664R1 is a baseboard/interface module designed for industrial automation and control systems. Below is a detailed technical parameter table based on the search results, followed by key explanations and applications:
Technical Parameter Table
| Parameter Category |
Specification |
|
| Brand |
ABB |
|
| Compatible Modules |
CI867, CI868, CI871, CI873, CI874 |
|
| Primary Function |
Serves as a baseboard for communication interface modules, enabling data transmission and processing in control systems. |
|
| Communication Protocols |
Supports multiple protocols (e.g., Modbus, Profibus, Ethernet/IP) via compatible interface modules. |
|
| Interface Types |
Digital I/O, analog I/O, communication interfaces (e.g., Ethernet, serial, CAN bus). |
|
| Design Features |
Modular design, high-quality materials, durable construction, easy installation. |
|
| Data Transfer Speed |
High-speed data transmission (specific speed may depend on connected modules, e.g., CI867 offers up to 100Mbps). |
|
| Security Features |
Includes security functions to protect data confidentiality and integrity against unauthorized access. |
|
| Operating Temperature |
Designed for industrial environments (compatible modules like CI867 operate at -40°C to +70°C). |
|
| Dimensions & Weight |
Compact form factor (exact dimensions not specified for TP867; CI867: 118mm x 53mm x 126mm, 210g). |
|
| Diagnostics & Monitoring |
Supports online diagnosis and real-time monitoring for fault detection and system alerts. |
|
| Application Domains |
Industrial automation, PLC systems, data acquisition, building automation, energy management. |
|
Key Explanations:
1. Functionality:
The TP867 acts as a baseboard for specific ABB communication interface modules (e.g., CI867, CI868) . It provides the electrical and physical foundation for these modules to operate, enabling data exchange between devices and control systems.
It supports multiple communication protocols (e.g., Modbus TCP/IP, PROFINET, Ethernet/IP) through its compatible modules, facilitating integration with diverse industrial devices
2. Design and Reliability:
Built with high-quality materials and a modular design, it ensures durability and ease of maintenance in harsh industrial environments
Features online diagnostics to monitor system status and detect issues in real-time, enhancing operational reliability
3. Performance:
While the TP867 itself does not specify data speeds, its compatible modules (e.g., CI867) support high-speed communication up to 100Mbps and full-duplex data transmission
It enables flexible configuration for various I/O needs (digital, analog) and network requirements
4. Applications:
Widely used in industrial automation (e.g., manufacturing, process control), PLC systems, energy management, and building automation
Ensures secure and efficient data exchange in critical infrastructure, such as power distribution and grid monitoring
