ABB PFTL101A 1.0KN

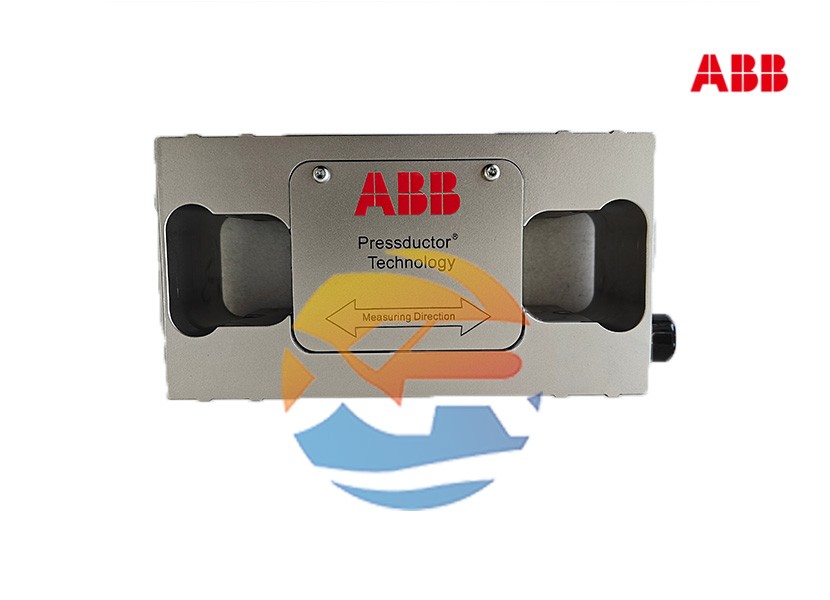

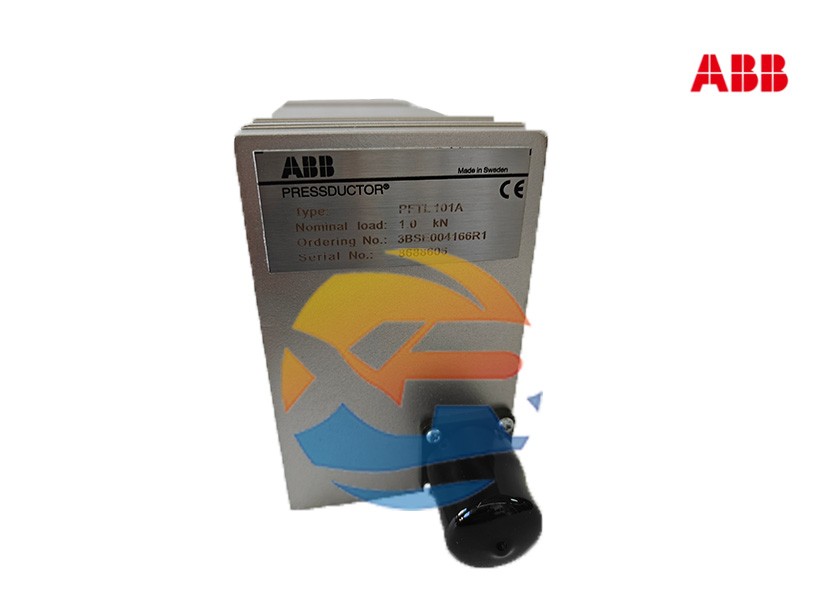

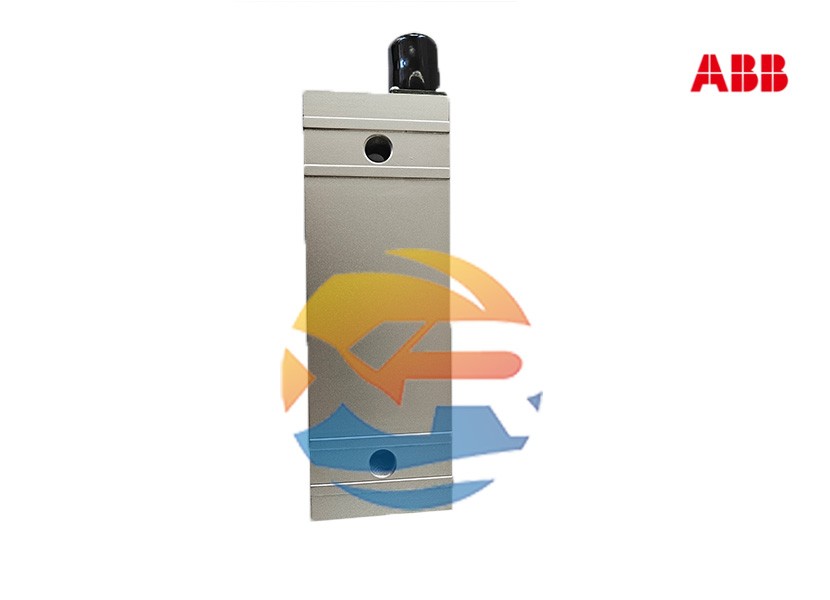

ABB PFTL101A 1.0KN Force Sensor


The ABB PFTL101A 1.0KN is a force sensor manufactured by ABB, widely used in industrial automation, robotics, material testing, aerospace, and automotive industries. This sensor offers high accuracy and reliability, making it suitable for applications requiring precise force measurement.

Technical Specifications

The technical specifications of the ABB PFTL101A 1.0KN are as follows:

Maximum Load: 1.0 kN

Accuracy Class: Typically 0.03% to 0.05% of full scale

Output Signal: 2 mV/V, excitation voltage 10V DC

Zero Drift: ±0.02%

Rated Temperature Range: -10°C to +40°C

Material: Stainless steel

Protection Class: IP67

Dimensions: 238 mm × 30 mm × 23 mm

Weight: Approx. 0.2 kg

Operating Temperature Range: -10°C to +40°C

Output Signal Type: Analog signal (e.g., 4–20 mA or 0–10 V)

Applications

The ABB PFTL101A 1.0KN force sensor is widely applied in industrial automation, robotics, aerospace, railway transportation, metal processing, papermaking, textiles, and printing industries.

In metal processing, it is used for real-time monitoring of strip tension to ensure rolling process stability and product quality.

In the paper industry, it helps monitor and control paper tension, ensuring product quality and production efficiency.

Product Features

High Accuracy: Provides high precision and reliability, ideal for applications requiring precise force measurement.

Durability: Excellent durability and protection level, suitable for harsh industrial environments.

Easy Installation and Maintenance: Compact design makes it convenient to install and maintain.

Model and Ordering Information

The ordering code for ABB PFTL101A 1.0KN is 3BSE004166R1.

Conclusion

The ABB PFTL101A 1.0KN is a high-performance force sensor that combines high precision, reliability, durability, and broad applicability. With its technical specifications and application range, it is an ideal choice for industrial automation and process control.

===================================================================================================================================================================
