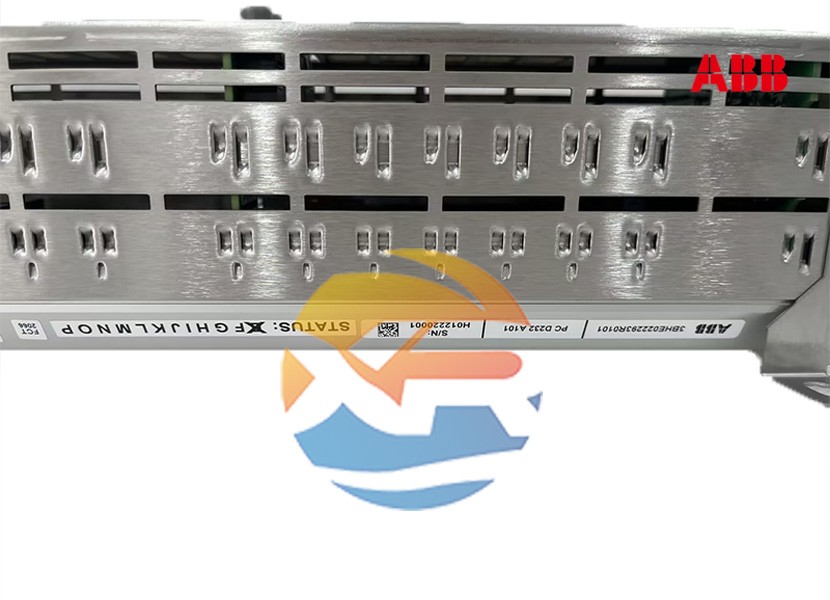

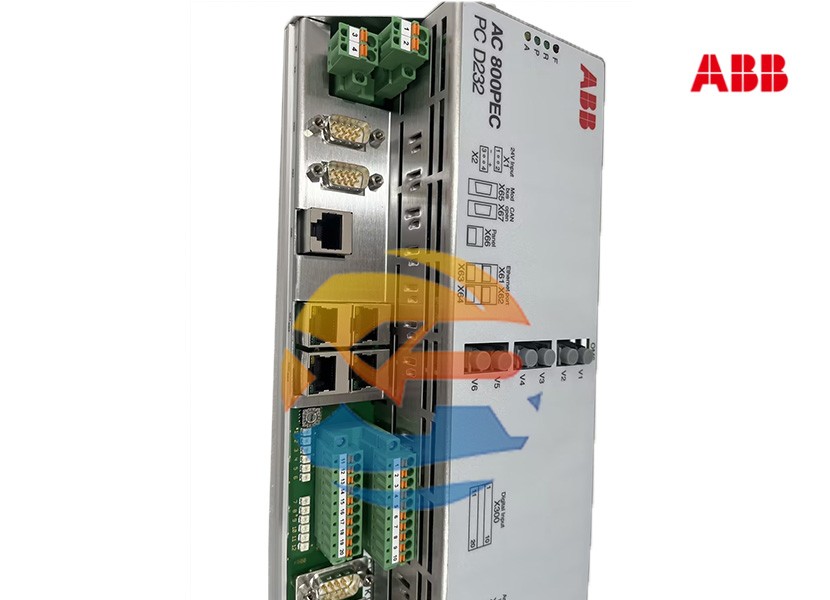

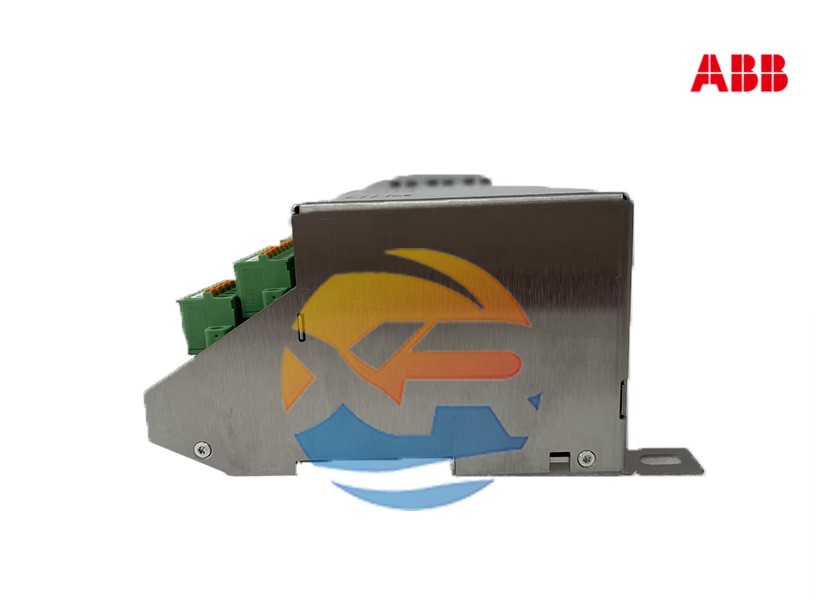

ABB PCD232A101 3BHE022293R0101

ABB PCD232A101 3BHE022293R0101 Technical Specifications Overview

1. Basic Electrical Characteristics

Input Voltage: 220 V AC ±10%

Signal Bandwidth: 0 ~ 50 kHz

Memory Capacity: 512 MB DDR3

Communication Interfaces: 2 × RS-485, 1 × EtherCAT

2. Environmental & Reliability

Protection Rating: IP67 (dustproof and waterproof)

Operating Temperature Range: -40 ℃ ~ +85 ℃

Compliance Standards: IEC 61131-2, CE certification

3. Mechanical Dimensions & Weight

4. Functional Positioning

Belongs to PEC80-CCM (Communication Module), used for high-speed and reliable communication within ABB PEC80 control systems or with external devices.

Designed with a compact structure, compatible with standard industrial racks or panel slots, making it suitable for installation in space-constrained environments.

5. Application Scenarios

Harsh industrial environments such as metallurgy, power, and petrochemicals (-40 ℃ ~ +85 ℃, IP67 protection).

Systems requiring high-speed signal acquisition or control (up to 50 kHz bandwidth) and compatibility with multiple fieldbus standards (RS-485, EtherCAT).

Summary

The ABB PCD232A101 3BHE022293R0101 is a high-performance, industrial-grade communication/control module featuring a wide operating temperature range, IP67 protection, versatile communication interfaces, and substantial memory capacity. It is well-suited for demanding automation systems. For detailed wiring diagrams or software configuration instructions, it is recommended to download the official ABB product manual or consult a local distributor for the latest documentation.

===================================================================================================================================================================
