ABB PFTL301E 3BSE019050R1000
Product Positioning

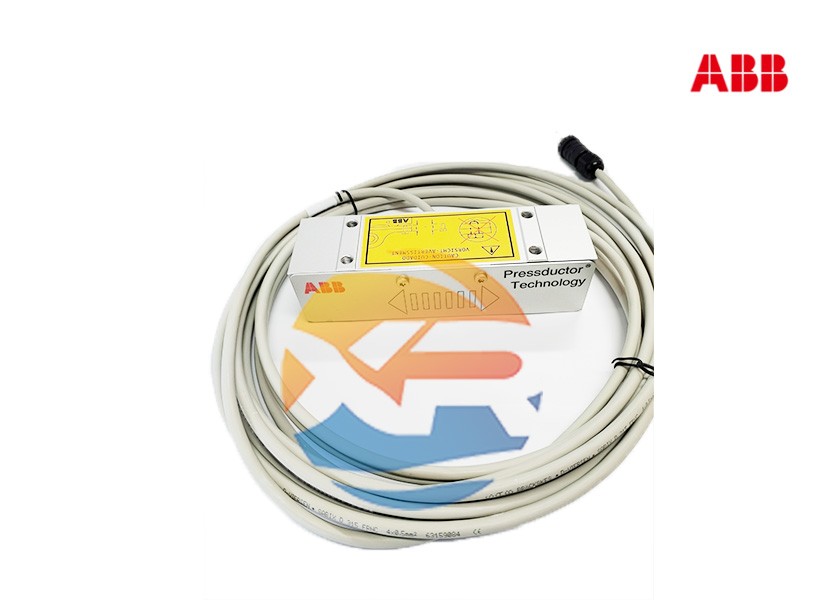

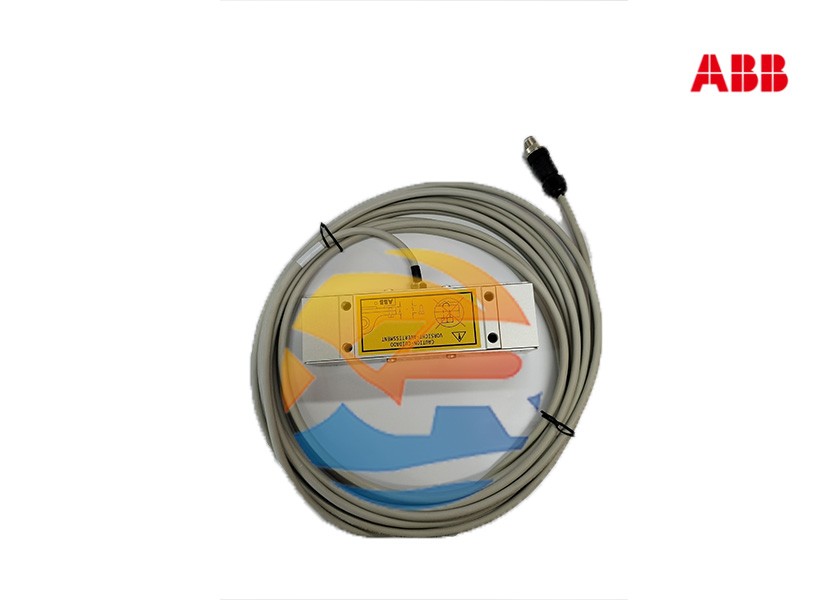

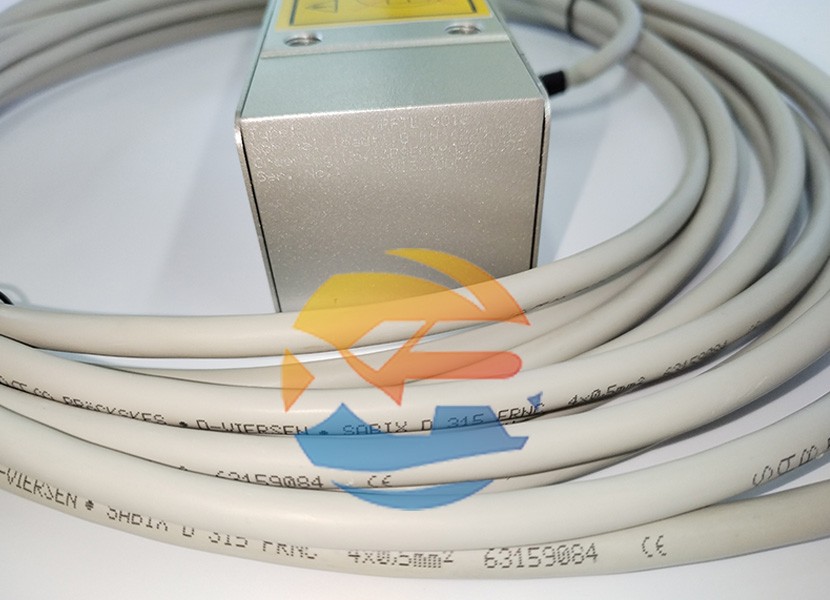

The ABB PFTL301E 3BSE019050R1000 is a tension/force sensor (Load Cell) from ABB, with a rated capacity of 1.0 kN (approximately 100 kgf).
It is commonly used in industrial applications such as paper web processing, plastic film manufacturing, textiles, printing and packaging, and metal forming, where it provides real-time tension or pressure measurement and feedback to PLC/DCS control systems.
Main Technical Specifications (Typical Values)
| Parameter | Value / Description |
|---|---|
| Measuring range | 1.0 kN |
| Non-linearity error | ≤ 0.05 % FS |
| Repeatability | ≤ 0.02 % FS |
| Creep | ≤ 0.03 % FS / 10 h |
| Zero stability | ≤ 0.02 % FS / 10 h |
| Output signal | mV/V (customizable) |
| Operating temperature | –10 °C ~ +50 °C |
| Protection class | IP67 (some models IP65) |
| Dimensions / Weight | Approx. 380 × 235 × 90 mm ; ≈ 12.4 kg |
| Power supply | 220 V (280 V for certain versions) |
| Communication interface | Supports 4-20 mA, 0-10 V, Ethernet, Modbus, etc. |
Key Features
High Accuracy: Error ≤ 0.05 % FS, ideal for processes requiring precise tension or pressure measurement.
Environmental Durability: IP67 protection ensures long-term operation in humid, dusty, or corrosive environments.
Multiple Output Options: Supports analog outputs (mV/V, 4-20 mA, 0-10 V) and digital communication for easy integration with various control systems.
Rugged Structure: Utilizes compression-magnet technology, providing high impact resistance, long lifespan, and suitability for heavy-load or high-duty production lines.
Flexible Installation: Available with flange or threaded mounting to fit diverse mechanical structures; horizontal compression heads can measure only the horizontal force component.
Typical Applications
Paper / Film Tension Control: Real-time tension monitoring on paper or printing machines to prevent web breakage or tension fluctuation.
Packaging Machinery: Measures the tensile force of packaging materials to ensure product quality.
Metal Processing: Monitors tension or pressure in rolling or stamping machines to enhance product consistency.
Energy and Power Monitoring: Serves as a load-monitoring element in power systems, integrated with ABB automation platforms.
Summary
The ABB PFTL301E 3BSE019050R1000 is a 1 kN high-precision tension/force sensor designed for demanding industrial applications. With IP67 protection, wide operating temperature range, and flexible analog/digital outputs, it is widely used in paper, packaging, and metal processing industries requiring accurate tension control.
Its reliability, robustness, and compatibility allow seamless integration with ABB and other PLC/DCS systems, enabling precise monitoring and regulation in automated processes.
