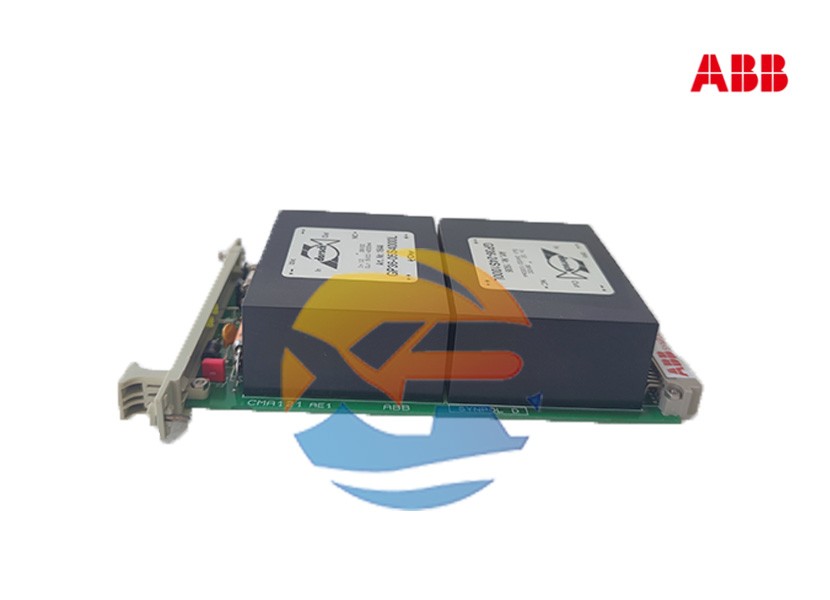

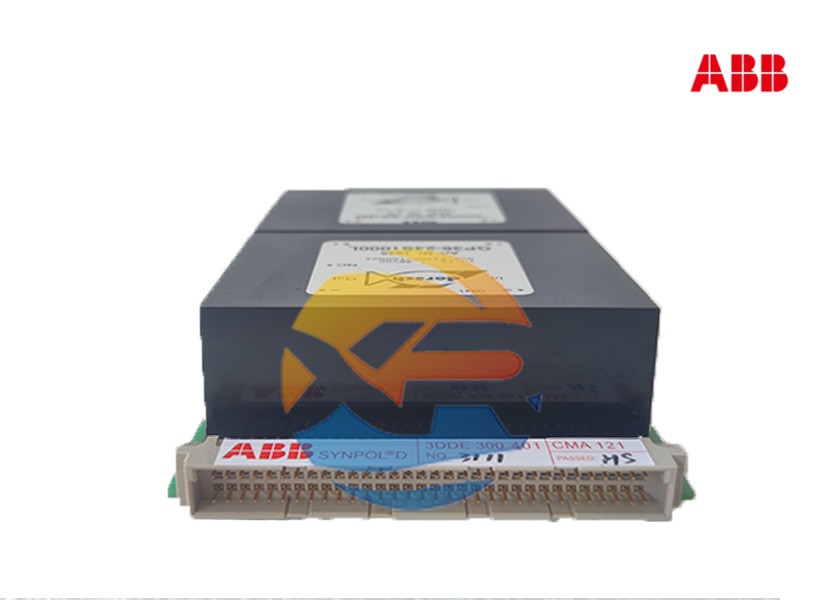

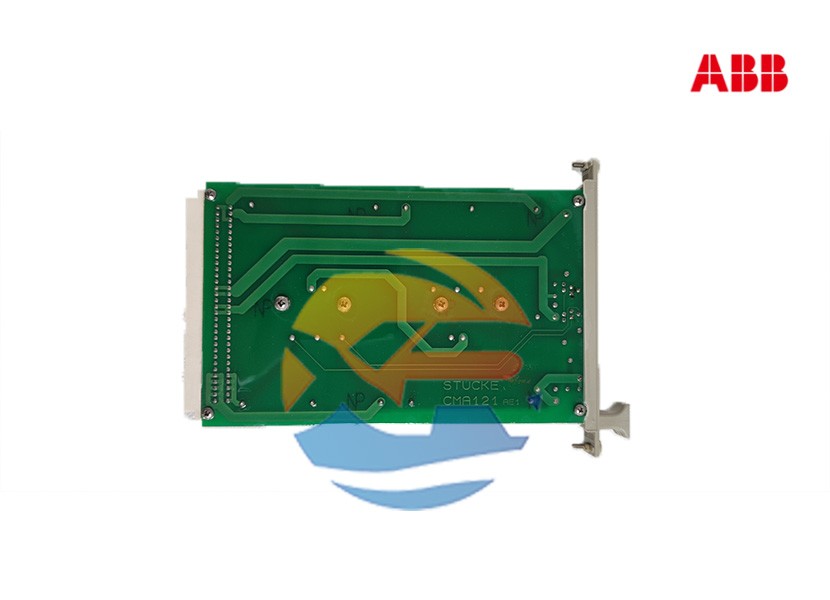

ABB CMA121 Overview

The ABB CMA121 is a power/control panel unit within the ABB Compact Modular Assembly (CMA) series, commonly used in ABB DCS, PLC, and other industrial automation systems.

Key Features

Model/Part Number: CMA121 (corresponding to 3DDE 300 401)

Function: Provides a 24 V DC power supply and integrates multiple I/O interfaces for power distribution and signal acquisition in ABB control systems.

Dimensions: Approximately 120 mm × 80 mm × 40 mm (W × D × H); compact size for efficient cabinet installation.

Operating Temperature Range: -40 °C to +85 °C, ensuring reliable operation in harsh industrial environments.

Interfaces: Supports RS-422/485, CAN bus, digital I/O, and analog I/O; compatible with common industrial protocols such as Ethernet, Modbus, and Profibus.

Applications: Ideal for process control, energy management, manufacturing lines, and robotic systems that require a stable power supply and multi-channel signal acquisition.

In summary, the ABB CMA121 is a compact, high-temperature-resistant power/control panel module featuring multiple communication interfaces, designed to meet the power supply and signal acquisition needs of ABB’s various automation control systems.
