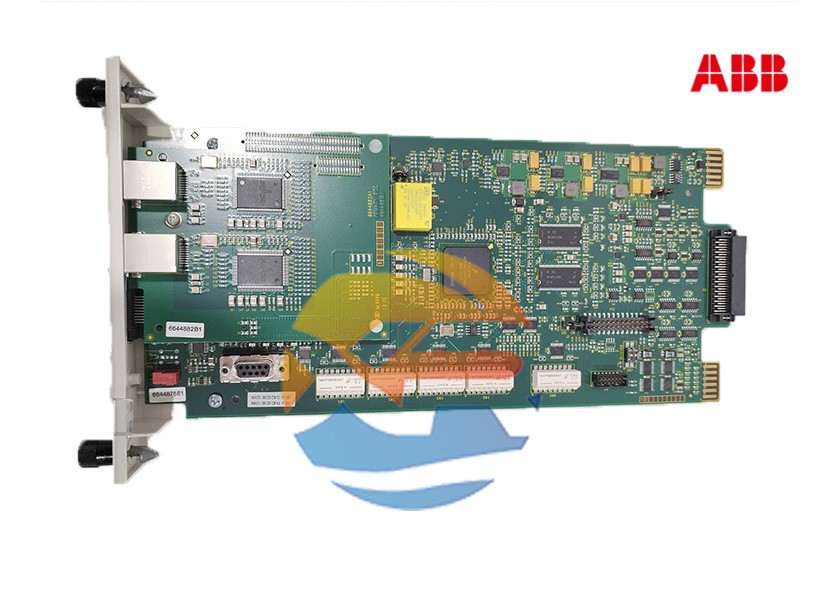

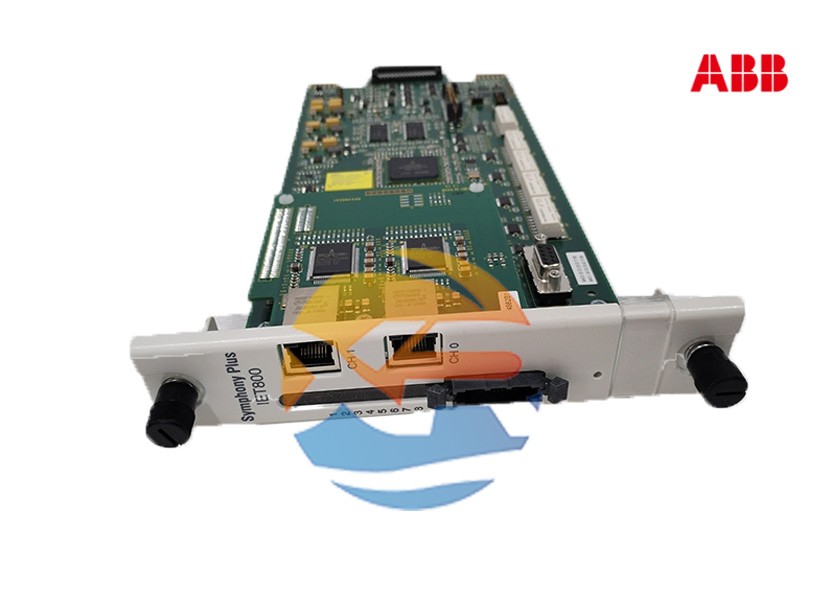

ABB SPIET800 Overview
The ABB SPIET800 is an Ethernet Communication Interface Unit (CIU) within ABB’s automation system portfolio. It is primarily designed to convert the ABB control system’s Infi-Net bus protocol into TCP/IP Ethernet, enabling fast and reliable data transmission with higher-level systems such as host computers, SCADA, and MES.
Main Functions and Features
| Function | Description |
|---|---|
| Protocol Conversion | Converts Infi-Net data to Ethernet TCP/IP, supporting remote monitoring, control, and data acquisition applications. |
| High-Speed Transmission | Equipped with dual 10/100 Mbps Ethernet ports to handle large volumes of industrial data efficiently. |
| Multiple Interfaces | Provides 2 × USB 2.0, 2 × RS-232, and 2 × RS-485 interfaces for flexible peripheral connections. |
| Powerful Processor | 32-bit RISC processor with 64 MB RAM and 128 MB Flash memory, offering ample computing and storage capacity. |
| High Reliability | Built with industrial-grade components, rated for -40 °C to +85 °C operation, and compliant with IP50 protection standards—ideal for harsh environments. |
| Easy Integration | Supports DIN-rail mounting and is compatible with ABB HR (Harmony Rack) controllers, allowing seamless cabinet integration. |
| Security and Redundancy | Supports redundant configurations to enhance system reliability and ensure continuous operation of critical processes. |
Typical Applications
Industrial Automation: Real-time data acquisition and monitoring for production lines and process control systems.
Power Systems: Remote monitoring and control of substations and distribution rooms.
Building and Facility Management: Centralized monitoring for building automation and energy management systems.
SCADA/DCS Systems: High-speed data exchange with supervisory systems, enabling unified monitoring platforms.
Technical Specifications (Typical Configuration)
| Item | Parameter |
|---|---|
| Processor | 32-bit RISC |
| Memory | 64 MB RAM, 128 MB Flash |
| Ethernet Ports | 2 × 10/100 Mbps |
| USB Ports | 2 × USB 2.0 |
| Serial Ports | 2 × RS-232, 2 × RS-485 |
| Operating Temperature | -40 °C ~ +85 °C |
| Protection Rating | IP50 |
| Mounting | DIN-rail |
Summary
The ABB SPIET800 is a high-performance Ethernet communication module designed for industrial environments. It provides seamless conversion between Infi-Net and TCP/IP, multiple communication interfaces, strong processing power, and industrial-grade reliability. Its versatility makes it ideal for automation, energy, power, and building management applications..jpg)
