Model：ABB DI801 digital input module

Brand: ABB 2025-11-05
Price range (USD): 2000-4000
Country: Sweden
Parameter: Model / Order Code DI801 / 3BSE020508R1
Function 16-channel digital input
Power Supply 24 V DC
Input Voltage Range 24 V DC, 120 V AC, 230 V AC (optional)

Contact Me

Xiamen Xingruijia Import and Export Co., Ltd. has been specializing in the sales of industrial control equipment spare parts for 20 years. For more ABB models, please refer to the product list . If you need other brands or models, please contact us. We have a variety of brands and models in stock, and we can purchase difficult to order models for you. We look forward to your inquiry!!!

First hand source//affordable price//Spot inventory!

•Shipping Port: Xiamen

•Manager: Rhonda

•E-mail: sales7@saulplc.com

•Tel/WhatsApp/Wechat: + 86-15359273796

•Ship to you via Fedex/DHL/TNT/UPS/EMS

•Package: Original packing with cartons

==============================================================================================================================================

ABB DI801 Digital Input Module Overview

Item	Description	Notes
Model / Order Code	DI801 / 3BSE020508R1	Commonly used in ABB Advant-800 xA and S800 I/O series
Function	16-channel digital input	Collects discrete signals from field devices such as switches and sensors; supports multiple voltage levels (24 V DC, 120 V AC, 230 V AC)
Power Supply	24 V DC	Compatible with ABB S800 I/O standard power specifications
Input Voltage Range	24 V DC, 120 V AC, 230 V AC (optional)	Different module versions support various voltage levels
Operating Temperature	–25 °C ~ +55 °C	Suitable for typical industrial environments
Dimensions	58.5 mm × 102 mm × 86.1 mm (approx.)	Compact design for easy cabinet installation
Key Features	• High-accuracy digital signal acquisition • Self-diagnostics and fault indication LEDs • Short-circuit, over-voltage, and over-temperature protection • Optical isolation and strong EMI resistance	Enhances system reliability and safety
Compatible Systems	ABB Advant-800 xA, S800 I/O, 800 M PLC, etc.	Seamlessly compatible with other ABB I/O modules (e.g., DI810, DO801)
Typical Applications	- Industrial automation in power, petrochemical, and pharmaceutical sectors - Discrete signal collection from field switches, limit sensors, and photoelectric sensors - Digital input layer for DCS, PLC, and distributed control systems	Widely used in high-reliability digital input applications

Brief Description
The ABB DI801 is a 16-channel digital input module designed for industrial automation. Featuring a modular and pluggable structure, it delivers stable and precise discrete signal acquisition even in harsh industrial environments. Supporting multiple input voltage levels, the DI801 offers comprehensive protection and self-diagnostic functions. It is fully compatible with ABB’s Advant-800 xA and S800 I/O systems, and can be combined with other modules such as DO801 (digital output), AI801 (analog input), and AO801 (analog output) to form a complete field I/O solution.

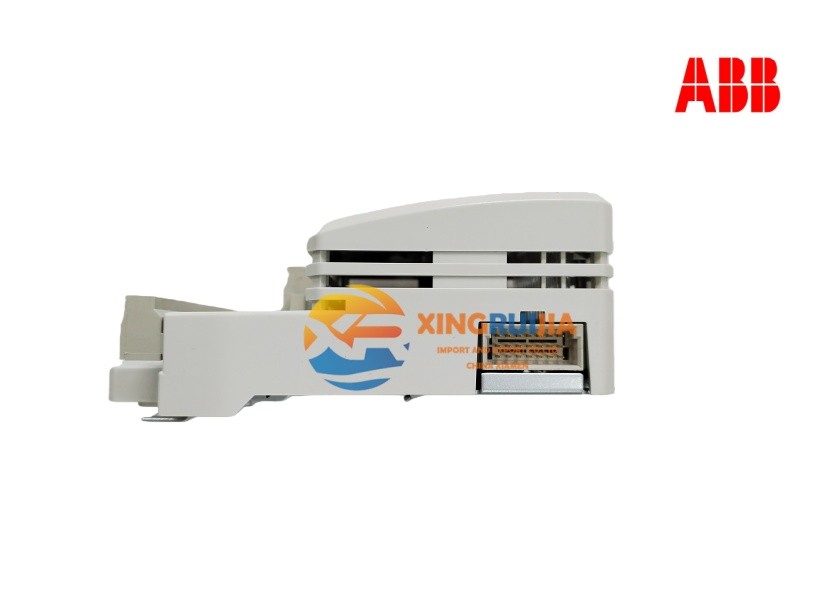

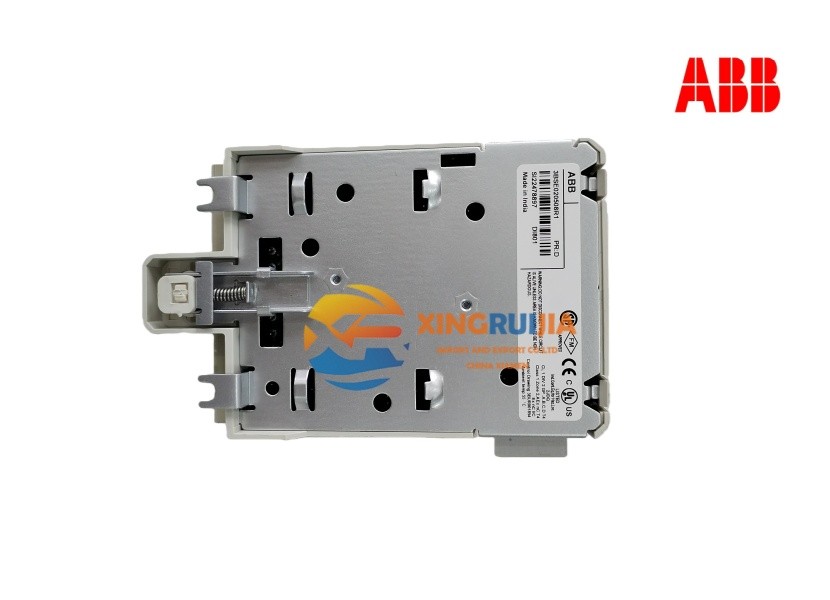

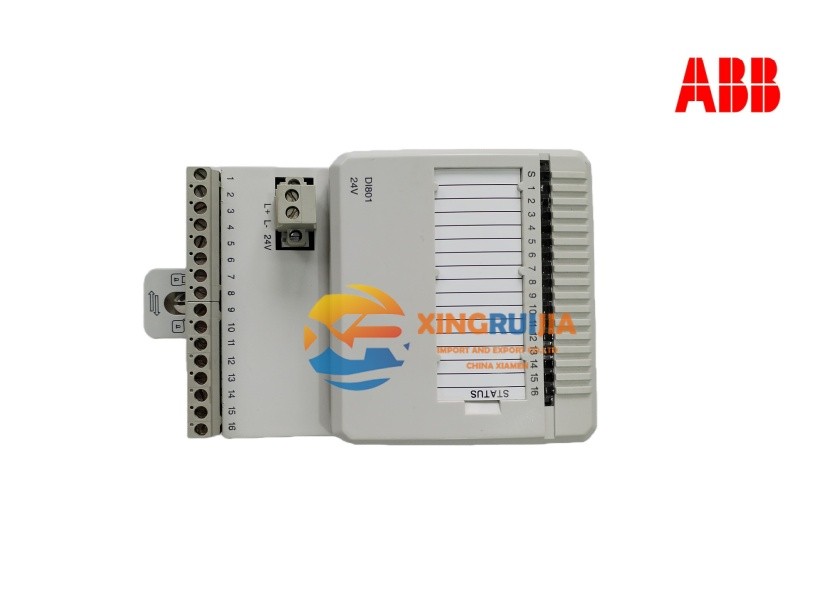

ABB DI801
