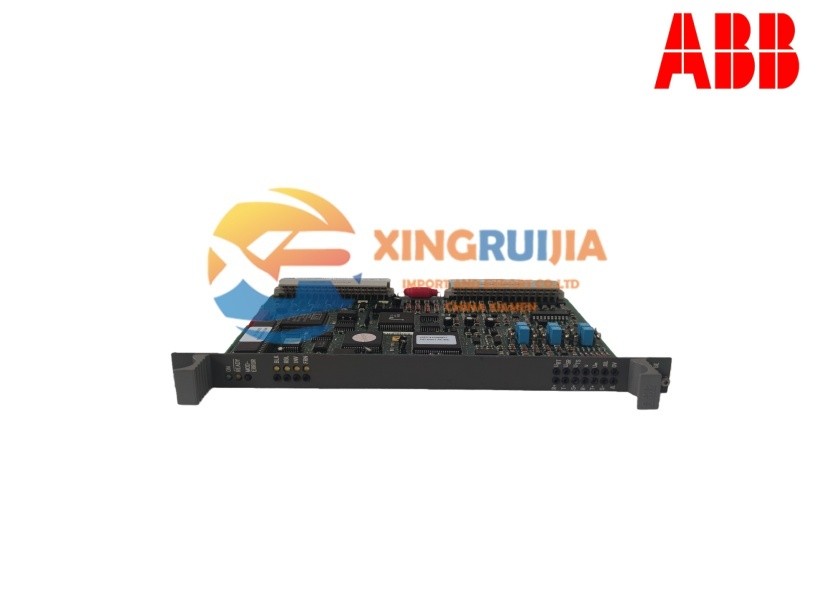

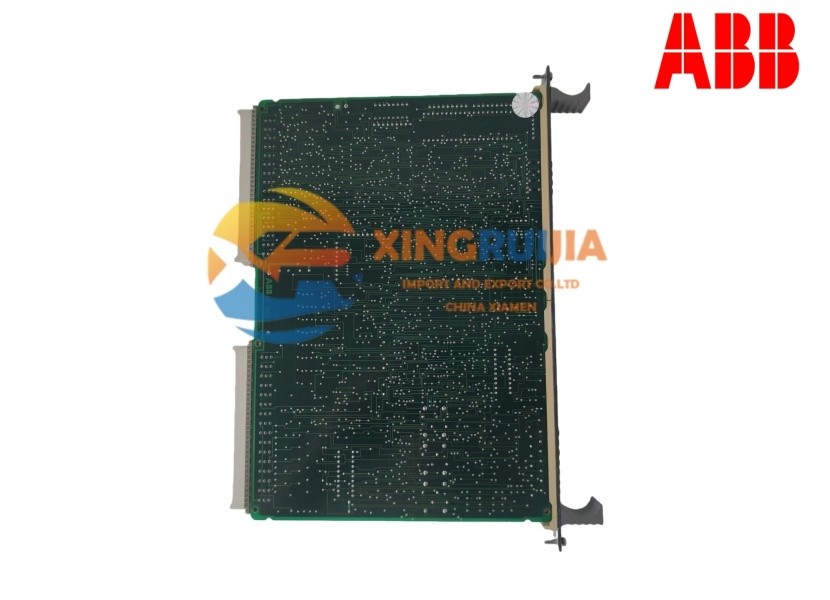

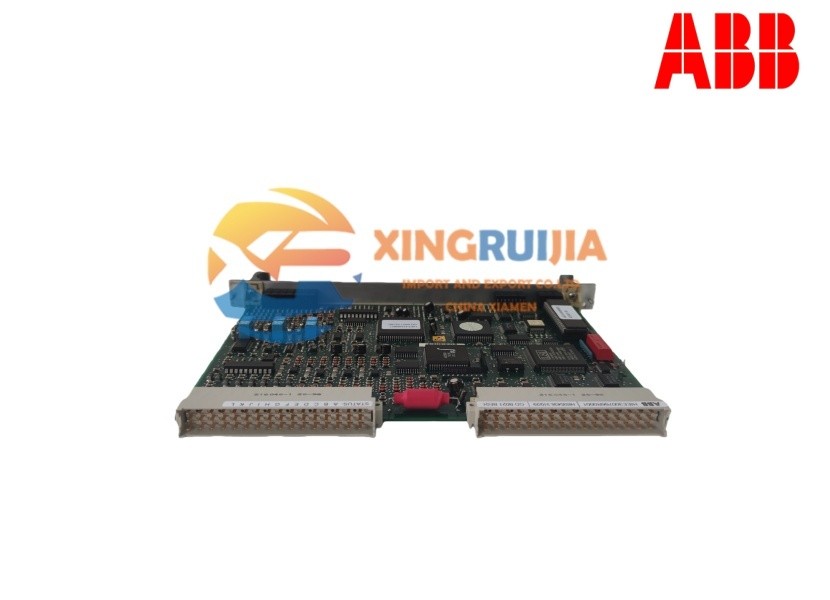

Model：ABB GDB021BE01 HIEE300766R0001 synchronizer module

Brand: ABB 2025-11-17
Price range (USD): 2000-4000
Country: Sweden
Parameter: Power Supply： 24 V DC
Output： 5 V DC or 8 V DC, power consumption < 20 W (< 5 W)
Rated Voltage / Current： 250 V AC (or 124 V DC), rated current 6 A, 4 contacts
Mechanical / Electrical Life： Mechanical life: 100,000 operations; Electrical life: 100,000 operations
Operating Temperature： −20 °C to +60 °C

Contact Me

Xiamen Xingruijia Import and Export Co., Ltd. has been specializing in the sales of industrial control equipment spare parts for 20 years. For more ABB models, please refer to the product list . If you need other brands or models, please contact us. We have a variety of brands and models in stock, and we can purchase difficult to order models for you. We look forward to your inquiry!!!

First hand source//affordable price//Spot inventory!

•Shipping Port: Xiamen

•Manager: Rhonda

•E-mail: sales7@saulplc.com

•Tel/WhatsApp/Wechat: + 86-15359273796

•Ship to you via Fedex/DHL/TNT/UPS/EMS

•Package: Original packing with cartons

==============================================================================================================================================

ABB GDB021BE01 (Part No. HIEE300766R0001) Overview

Item	Description
Product Type	Gating unit / Solid-state relay (SSR), can also function as a synchronizer module
Applications	Industrial automation, generator grid synchronization, access control, heating/air-conditioning, lighting, industrial motors, etc.
Power Supply	24 V DC
Output	5 V DC or 8 V DC, power consumption < 20 W (< 5 W)
Rated Voltage / Current	250 V AC (or 124 V DC), rated current 6 A, 4 contacts
Mechanical / Electrical Life	Mechanical life: 100,000 operations; Electrical life: 100,000 operations
Operating Temperature	−20 °C to +60 °C
Protection Rating	IP65 (or IP67)
Dimensions / Weight	Approx. 120 mm × 80 mm × 35 mm; weight approx. 0.42 kg (approx. 200–500 g)
Main Functions	• Automatic synchronization (voltage, frequency, phase matching)
• Multiple protections (overcurrent, overvoltage, short-circuit)
• Digital I/O and multi-protocol communication (CANopen, Modbus, etc.)
• Self-diagnostics and fault detection
Interfaces	Digital inputs/outputs, CANopen, Modbus, etc., with flexible software configuration

Key Features

High reliability:
Uses solid-state relay technology for fast switching with no mechanical wear, ideal for industrial loads involving frequent on/off cycles.

Automatic synchronization:
Built-in synchronization algorithms allow automatic grid connection when voltage, frequency, and phase conditions are met, widely used in generator-to-grid applications.

Flexible configuration:
Supports multiple communication protocols and software-based parameter settings, enabling quick adaptation to various field requirements.

Protection & environmental durability:
IP65/IP67 protection rating, operating temperature from −20 °C to +60 °C, and storage temperature from −40 °C to +85 °C, making it suitable for harsh industrial environments.

Compact DIN-rail installation:
Small size and lightweight design facilitate installation and maintenance in control cabinets or electrical panels.

Common Application Scenarios

Generator grid synchronization: Ensures safe synchronization between generators and the power grid in thermal, hydro, wind, and other power plants.

Access control systems: Functions as a gating unit with integrated card-reader interface for access control and monitoring.

Heating/air-conditioning systems: Controls the switching of high-power heaters and air-conditioning compressors.

Industrial motor and lighting control: Provides reliable load switching for automated production lines or building systems.
ABB GDB021BE01 HIEE300766R0001
