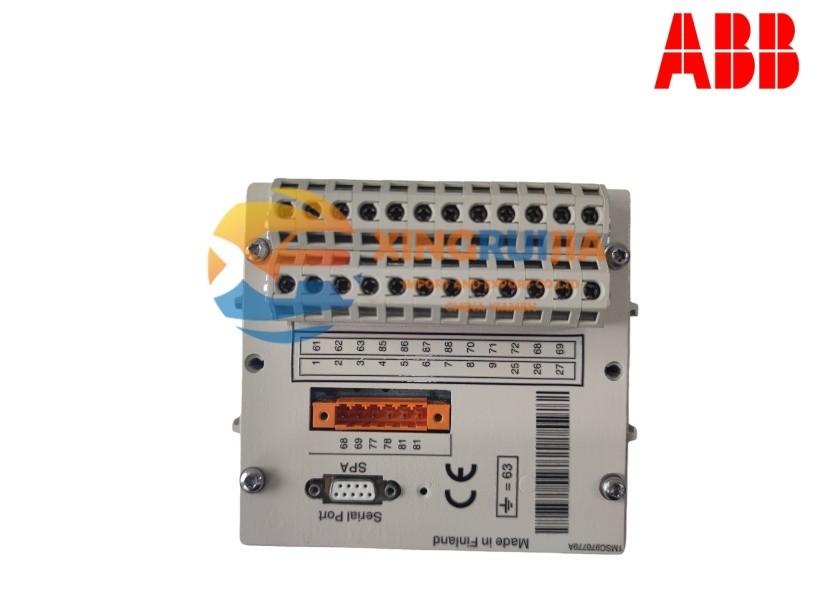

Model：ABB SPAJ140 highly integrated

Brand: ABB 2025-11-17
Price range (USD): 2000-4000
Country: Sweden
Parameter: Operating Voltage： 230 V AC (rated)
Operating Temperature： –20 °C to +85 °C
Protection Functions： Phase over-current, single/dual/three-phase over-current, non-directional earth-fault, over-voltage, under-voltage, breaker failure protection, etc.

Contact Me

Xiamen Xingruijia Import and Export Co., Ltd. has been specializing in the sales of industrial control equipment spare parts for 20 years. For more ABB models, please refer to the product list . If you need other brands or models, please contact us. We have a variety of brands and models in stock, and we can purchase difficult to order models for you. We look forward to your inquiry!!!

First hand source//affordable price//Spot inventory!

•Shipping Port: Xiamen

•Manager: Rhonda

•E-mail: sales7@saulplc.com

•Tel/WhatsApp/Wechat: + 86-15359273796

•Ship to you via Fedex/DHL/TNT/UPS/EMS

•Package: Original packing with cartons

==============================================================================================================================================

Overview of the ABB SPAJ140 Series

The SPAJ140 belongs to ABB’s SPACOM series of combined over-current and earth-fault relays, designed for distribution automation. It provides selective short-circuit and earth-fault protection for radial feeders and distribution networks.

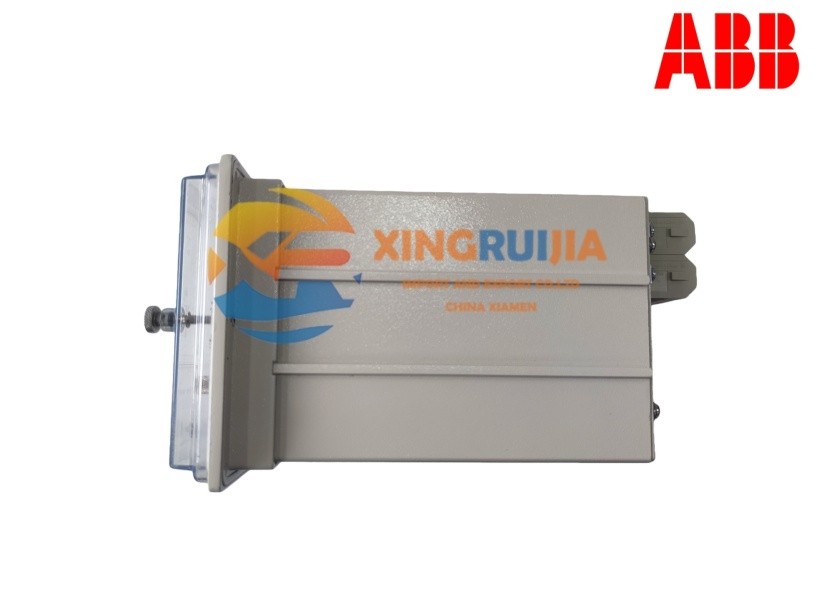

ABB SPAJ140

1. Key Technical Parameters (Typical Values)

Parameter	Description
Operating Voltage	230 V AC (rated)
Operating Temperature	–20 °C to +85 °C
Protection Functions	Phase over-current, single/dual/three-phase over-current, non-directional earth-fault, over-voltage, under-voltage, breaker failure protection, etc.
Communication Interfaces	Modbus RTU, RS-485, optical SPA bus, IEC 61850, IEC 60870-5-103, etc.
Certifications	IEC 61508, IEC 60255, CE, etc.
Rated Current	1 A to 5 A
Other Features	Local HMI, self-test/self-supervision, fault recording, remote parameter configuration

2. Functional Highlights

Combined protection: Provides over-current and earth-fault protection within a single device, simplifying switchgear panel layout.

Flexible time-current characteristics: Supports definite-time, inverse-time (IDMT), and instantaneous curves with customizable settings based on system requirements.

High reliability: MTBF over 20 years, with self-supervision for real-time monitoring of hardware and software status.

Local and remote access: Equipped with local display/buttons and supports serial/optical communication for centralized monitoring and remote diagnostics.

Compatibility: Supports ABB’s PYRAMID™ coordinated protection philosophy and integrates seamlessly with other ABB distribution automation products.

3. Typical Application Scenarios

Distribution feeder protection: Provides selective short-circuit and earth-fault protection for distribution systems with solid, resistance, or impedance grounding.

Industrial facility power distribution: Used in switchgear for large industrial plants to ensure reliable over-current and earth-fault protection.

Building automation: Ensures safe and reliable protection in commercial buildings and residential complexes.

Power system upgrades: Replaces standalone over-current or earth-fault relays in legacy systems to achieve functional integration and system simplification.

Conclusion

The ABB SPAJ140 series is a highly integrated, flexible, and reliable combined over-current and earth-fault relay, suitable for a wide range of distribution automation applications.

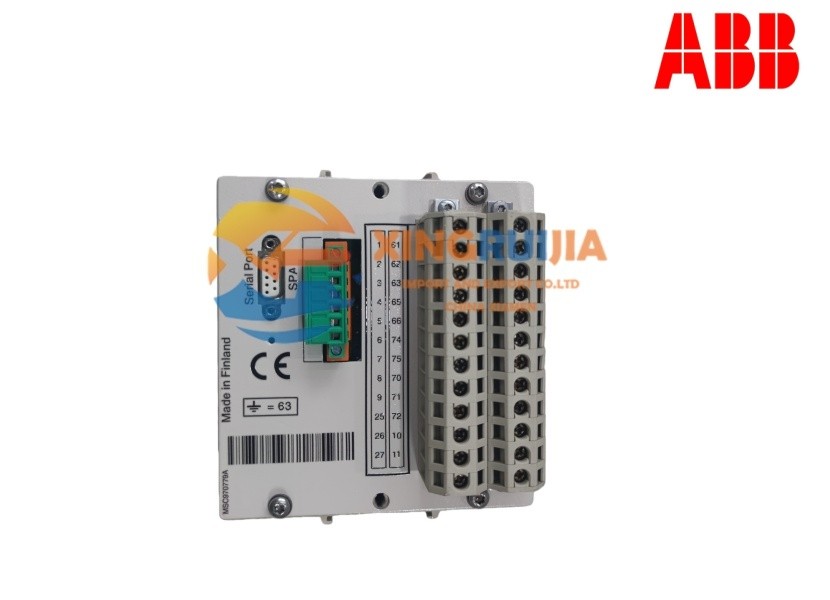

ABB SPAJ140
