Model：ABB AO02 output module

Brand: ABB 2025-11-26
Price range (USD): 2000-4000
Country: Sweden
Parameter: Number of channels: 2 channels (some variants offer 16 channels)
Output range: 0 V–10 V or 4 mA–20 mA (also configurable to 0–20 mA, 1–5 V)
Resolution: 12-bit (16-bit for some variants)
Accuracy: 0.1% of full scale (12-bit)

Contact Me

Xiamen Xingruijia Import and Export Co., Ltd. has been specializing in the sales of industrial control equipment spare parts for 20 years. For more ABB models, please refer to the product list . If you need other brands or models, please contact us. We have a variety of brands and models in stock, and we can purchase difficult to order models for you. We look forward to your inquiry!!!

First hand source//affordable price//Spot inventory!

•Shipping Port: Xiamen

•Manager: Rhonda

•E-mail: sales7@saulplc.com

•Tel/WhatsApp/Wechat: + 86-15359273796

•Ship to you via Fedex/DHL/TNT/UPS/EMS

•Package: Original packing with cartons

==============================================================================================================================================

ABB AO02 Overview

The ABB AO02 is an analog output module in the ABB Ability Symphony Plus series of I/O hardware. It is used to convert digital signals from the controller into analog voltage or current outputs to drive field actuators such as valves, variable-frequency drives (VFDs), and servo motors. The module is commonly used with ABB control platforms such as AC800M, S800, and AC500, and is suitable for industrial applications including process control, machine control, and building automation.

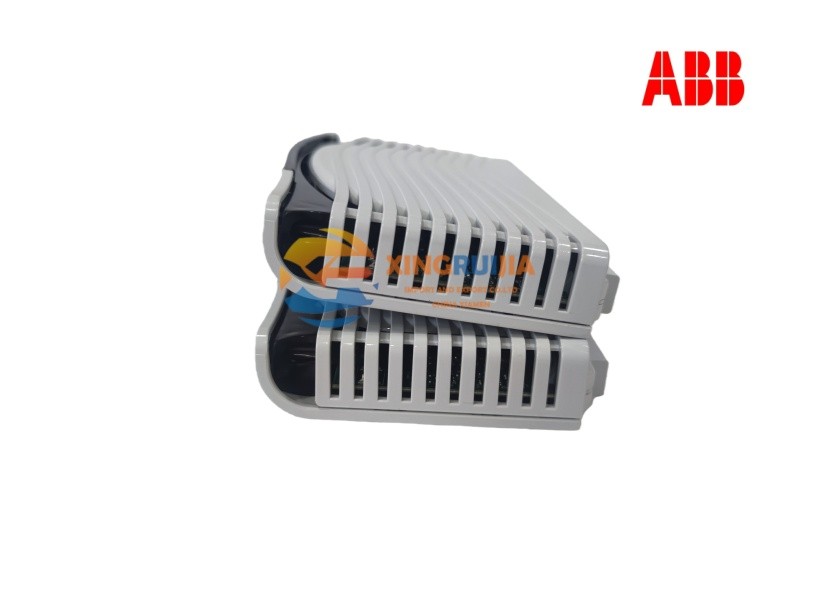

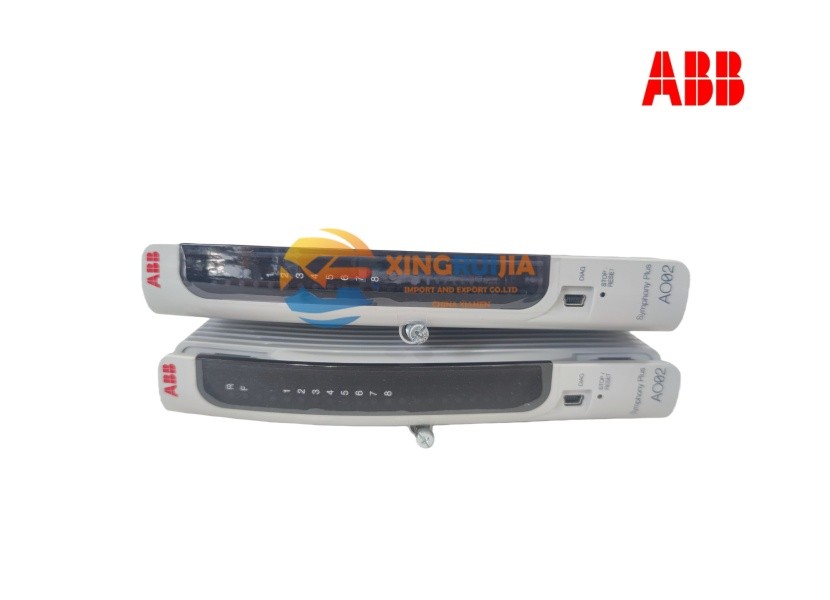

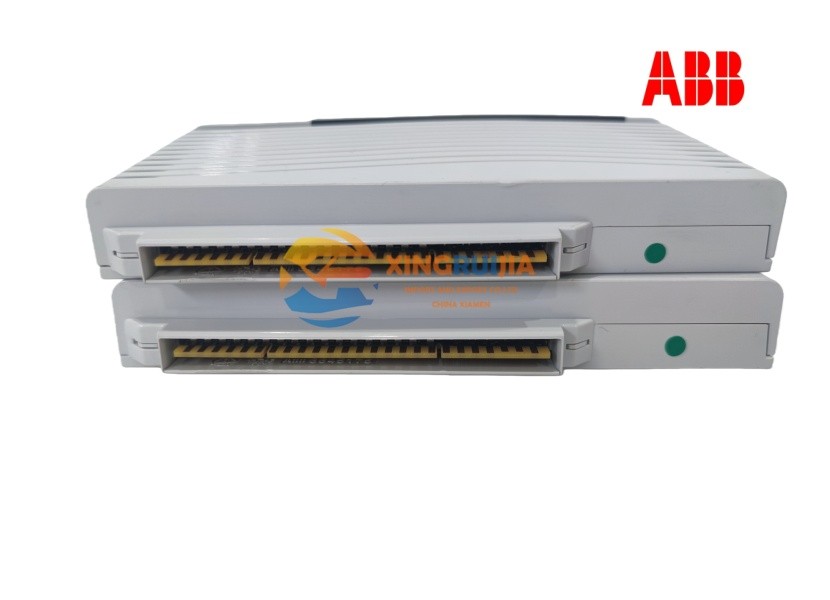

ABB AO02

Main Technical Specifications

Parameter	Description
Number of channels	2 channels (some variants offer 16 channels)
Output range	0 V–10 V or 4 mA–20 mA (also configurable to 0–20 mA, 1–5 V)
Resolution	12-bit (16-bit for some variants)
Accuracy	0.1% of full scale (12-bit)
Isolation	Optocoupler isolation per channel; supports channel-to-channel and power-ground isolation
Protection	Short-circuit, overload, and open-circuit detection (within 5 seconds)
Operating temperature	−20 °C to +60 °C
Power supply	24 V DC (±10%)
Dimensions / Weight	Approx. 82 mm × 50 mm × 23 mm; about 0.18 kg
Protection rating	IP20 (higher ratings optional)

Key Features

High accuracy, low noise: 12-bit D/A conversion with low error, suitable for precise control.

Fast response: Update rate up to 1 ms, meeting real-time control requirements.

Flexible configuration: Each channel can be independently set to voltage or current mode; supports HART v5.4 instrument communication.

High reliability: Built-in short-circuit, open-circuit, and overload protection; wide operating temperature range suitable for harsh environments.

Easy integration: Standard wiring terminals and compact size, installable directly on DIN rails or inside control cabinets.
