ABB 3BHE006373R0101

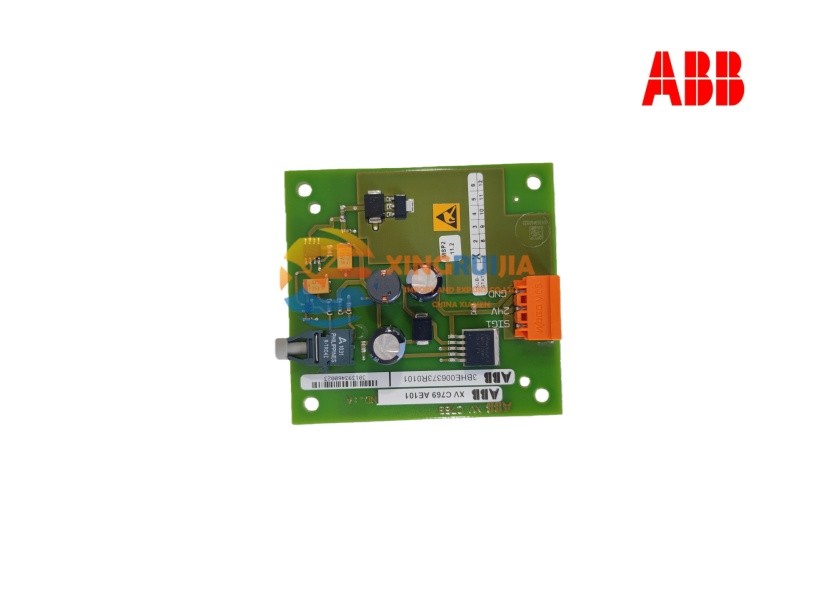

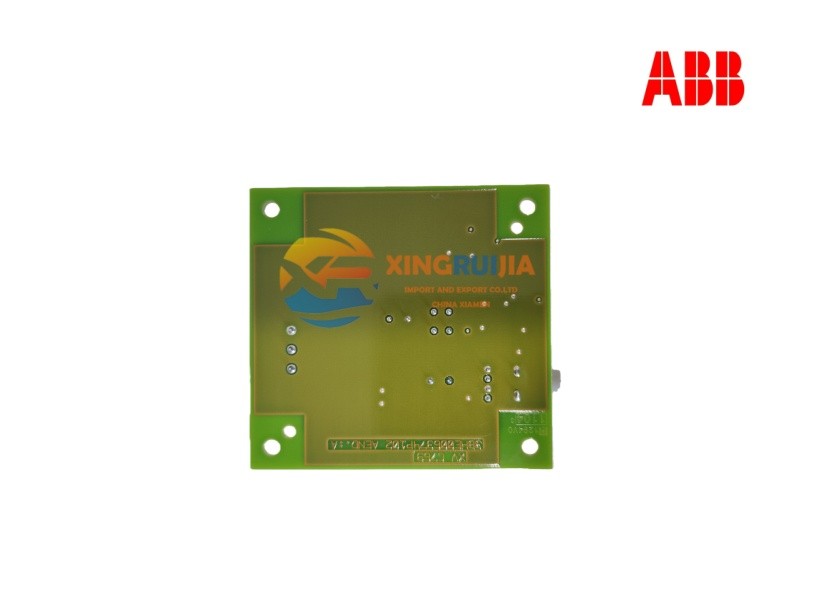

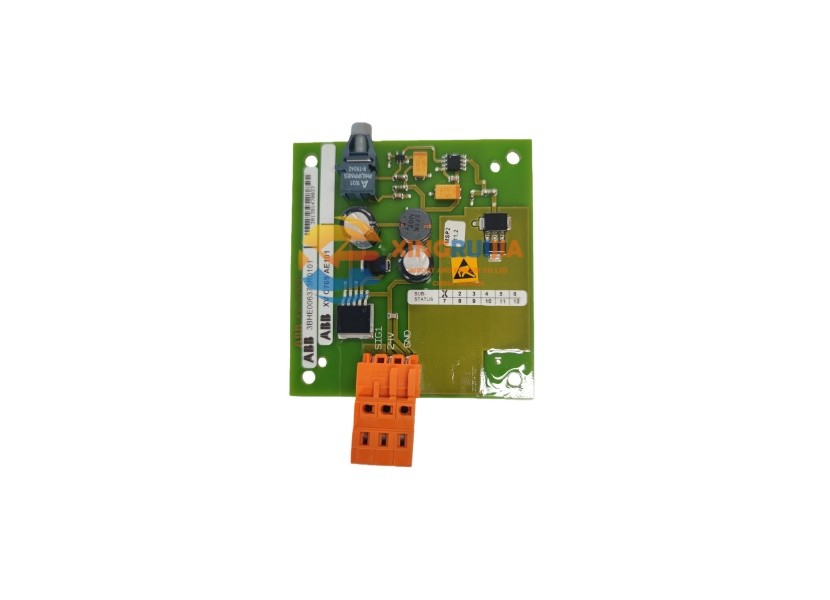

ABB 3BHE006373R0101 (corresponding model XVC769AE101) is a control board (OEI-BOARD/XVC series) designed for industrial automation and process control systems, commonly used in DCS, PLC, and ACS800 series drives.
Basic Specifications
| Item | Specification |
|---|---|
| Rated Voltage | 220 V or 380–480 V |
| Output Current | Up to 10 A |
| Maximum Power | 240 W |
| Dimensions | 150 mm × 80 mm × 45 mm |
| Housing Material | Aluminum alloy |
| Operating Temperature | –20 °C to +70 °C |
| Protection Class | IP20 |
| Output Frequency | 30 kHz |
| Origin | Switzerland |
| Certification | Compliant with relevant industrial certifications |
Features
High-precision control: Supports vector control from 0.5 Hz to 60 Hz, compatible with ACS800 series variable-frequency drives.
Multiple protection functions: Includes overload and short-circuit protection to enhance equipment safety.
Modular design: Easy to install and maintain, and compatible with multiple ABB automation platforms.
Wide voltage compatibility: Operates under both 220 V and 380–480 V, meeting diverse industrial site requirements.
Typical Applications
Distributed Control Systems (DCS): Used for centralized monitoring and process optimization.
Drive systems: Serves as a control board for ACS800 series drives, enabling smooth motor operation.
Robotics and photovoltaic systems: Provides stable power and control for robotics and solar-energy applications.
Oil & gas, chemical, power, and water treatment industries: Maintains high reliability in harsh environments, suitable for mission-critical sectors.
In summary, ABB 3BHE006373R0101 (XVC769AE101) is a highly reliable industrial control board featuring a wide voltage range, precise output-frequency control, and comprehensive protection functions. It is widely used in DCS systems, drive control, robotics, and new-energy applications..jpg)
