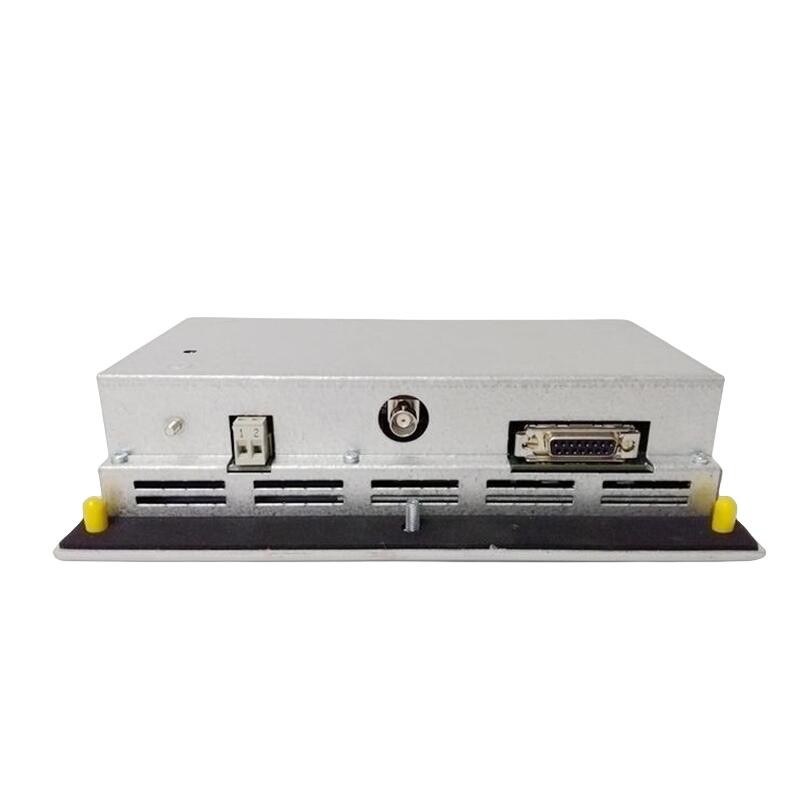

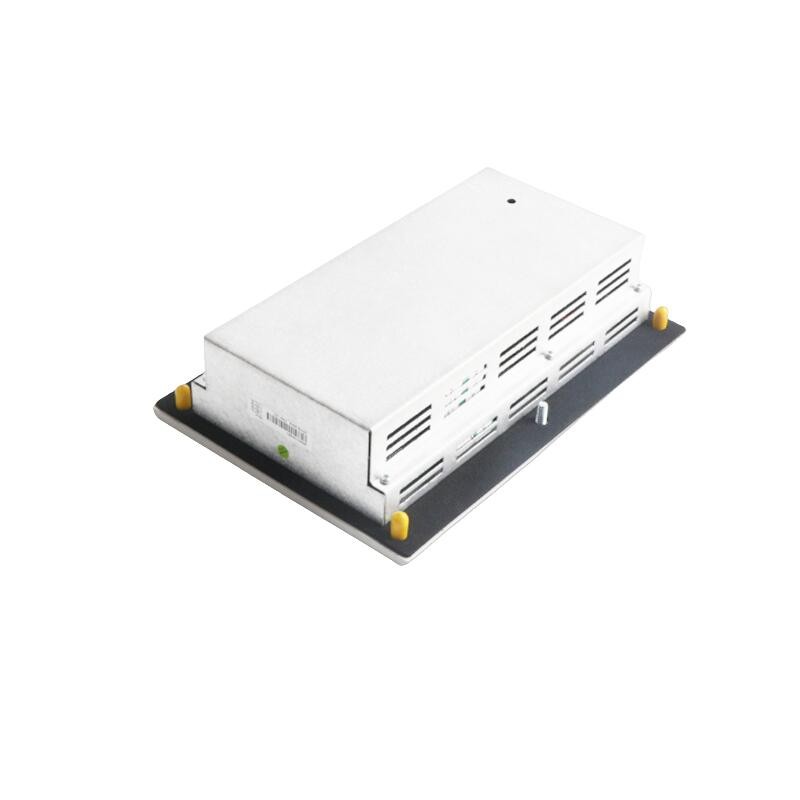

ABB PXAH401 3BSE017235R1 Millmate Operator Unit 400 HMI

The ABB PXAH401 (3BSE017235R1) is a rugged industrial Human-Machine Interface (HMI) designed for reliable monitoring, visualization, and control of automation systems. Developed by ABB, this operator unit is widely used in demanding process industries such as metals, pulp & paper, power generation, oil & gas, and manufacturing.

Built for continuous operation in harsh industrial environments, the PXAH401 provides real-time data visualization, intuitive control, and seamless integration with ABB PLC and DCS platforms.

Key Features

• 10.1-inch industrial color touchscreen display
• Intuitive operator interface with multi-language support
• High reliability for harsh industrial environments
• Real-time process monitoring and visualization
• Ethernet and industrial communication compatibility
• IP65 front protection against dust and water
• Designed for seamless integration with ABB automation systems

Technical Specifications

Model: PXAH401
Part Number: 3BSE017235R1
Product Type: Millmate Operator Unit 400 HMI
Display Size: 10.1 inch color touchscreen
Resolution: 800 × 600
Touch Technology: Resistive touchscreen
Power Supply: 24 VDC
Front Protection: IP65
Operating Temperature: −20°C to +60°C
Humidity: 0–95% RH (non-condensing)
Dimensions: 264 × 176 × 63 mm
Weight: Approx. 2.3 kg

Industrial Applications

The ABB PXAH401 HMI is designed for demanding industrial control and monitoring tasks, including:

• Rolling mills and strip processing lines
• Process automation systems
• Manufacturing and production lines
• Power generation facilities
• Oil and gas plants
• Heavy industrial machinery monitoring

Its real-time visualization and diagnostics capabilities help operators monitor system performance, detect faults quickly, and improve production efficiency.

Advantages of ABB PXAH401

Enhanced Operator Efficiency
Clear visualization and intuitive control simplify machine operation and reduce training time.

Reliable Industrial Performance
Rugged construction ensures stable operation in extreme temperature, dust, and humidity conditions.

Seamless System Integration
Fully compatible with ABB control systems, PLCs, and DCS environments.

Long-Term Operational Stability
Designed for continuous industrial use with minimal maintenance requirements.

Conclusion

The ABB PXAH401 3BSE017235R1 is a dependable industrial HMI solution that combines durability, usability, and high-performance monitoring. It is an ideal choice for industries seeking reliable human-machine interaction and efficient process visualization in demanding automation environments.
