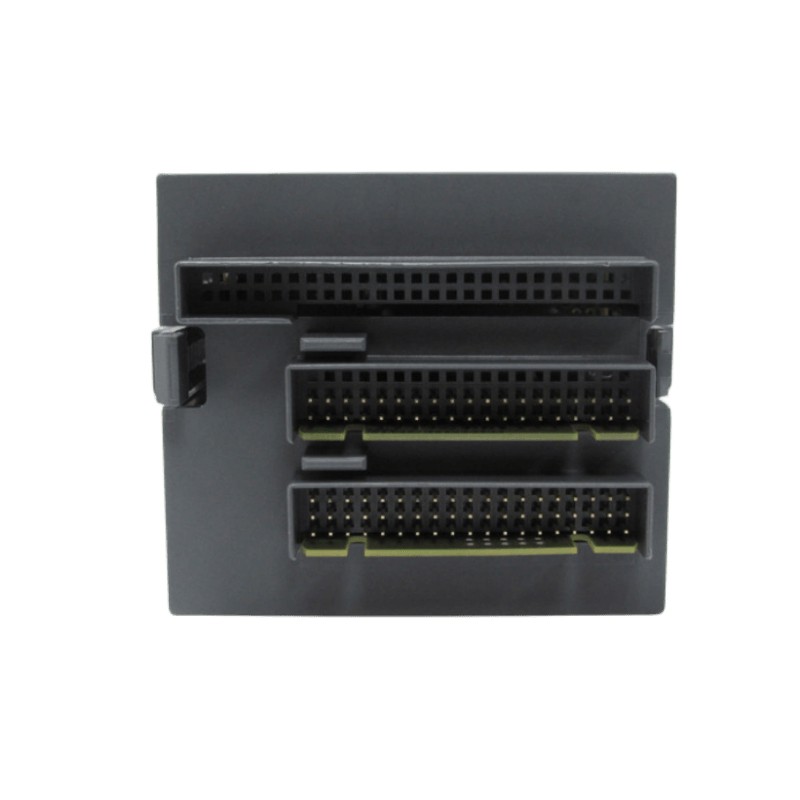

ABB 1SAP130300R0271

The ABB PM573-ETH is a mid-range CPU module within the AC500 platform, positioned as the core controller for distributed automation equipment and small to medium-sized control systems. It integrates onboard Ethernet communication and a built-in display, providing flexible connectivity between field devices and upper-level systems. The module supports multitasking and password protection, and can be programmed using ABB's Automation Builder software.

Technical Specifications

The following table summarizes the key technical parameters based on ABB official documentation and distributor information:

Product Features

• Balanced Performance and Memory: Equipped with 512 kB each of program and data memory, the processing speed is sufficient for logic operations and PID control tasks in most mid-range projects. Executing 1,000 logic instructions takes only about 0.05–0.06 ms, while floating-point operations take approximately 0.5–0.7 ms.

• Comprehensive Communication Capabilities: A core advantage lies in its onboard communication interfaces. The Ethernet port enables direct connection to plant networks, facilitating high-speed data exchange with SCADA/MES systems. The two configurable RS232/485 serial ports support protocols such as Modbus RTU and ASCII, making it easy to connect to third-party devices like drives and instruments.

• Convenient On-Site Diagnostics and Maintenance: The integrated LCD display and function keys allow operators to check CPU and I/O status and perform basic diagnostics without connecting a programming PC, greatly improving on-site debugging and troubleshooting efficiency. When paired with ABB Automation Builder software, it enables unified engineering management from hardware configuration to network debugging.

• Reliable Industrial Design: With an IP20 protection rating, the module must be installed inside a control cabinet. Its operating temperature range of 0 to +60 °C suits most industrial environments. The module holds multiple international certifications, including CE, UL, and CSA, ensuring reliable operation.

Structural Composition

The PM573-ETH module itself is a compact unit, with the following core structural components:

• Processor Core: Based on a 32-bit ARM architecture processor, which serves as the core for logic operations and data processing.

• Built-in Memory: Includes Flash EPROM for program storage and RAM for data storage, both with a capacity of 512 kB. Additionally, an SD card slot supports program transfer and firmware updates.

• Communication Interfaces: All communication interfaces are integrated into the module or its base, including one RJ45 Ethernet port, two serial communication ports (COM1 and COM2), and one interface for connecting an FBP adapter.

• Human-Machine Interface (HMI): The front panel features an LCD display for status indication, function keys for operation, and LED indicators showing running, stopped, and error states.

• Mounting and Power Supply: The module is mounted on a standard DIN rail and powered by a 24 V DC supply.

Application Fields

The PM573-ETH is suitable for automation projects requiring medium-scale I/O points and Ethernet communication, and is commonly found in the following areas:

• Manufacturing: Serves as the main PLC for packaging machinery, printing equipment, assembly lines, and material handling systems, coordinating motion control, closed-loop temperature/pressure regulation, and interlocking logic between equipment.

• Infrastructure: Applied in pumping stations, small water treatment plants, fan control, tunnel ventilation, and traffic control scenarios. It connects to field instruments via multiple serial ports and uploads data to central control rooms via Ethernet for remote monitoring and management.

• Process Control: In simple process control applications within industries such as food & beverage and chemicals, it handles data acquisition, logic control, and remote communication tasks.

Conclusion

The ABB PM573-ETH (1SAP130300R0271) is a well-rounded, precisely positioned mid-range PLC CPU module. It strikes an excellent balance between performance, communication capabilities, and cost. It offers the Ethernet connectivity and convenient onboard diagnostics required in modern automation systems, while retaining the flexibility to communicate with a variety of field devices. For users looking to build or upgrade small to medium-sized control systems, the PM573-ETH is a mature and reliable solution.
