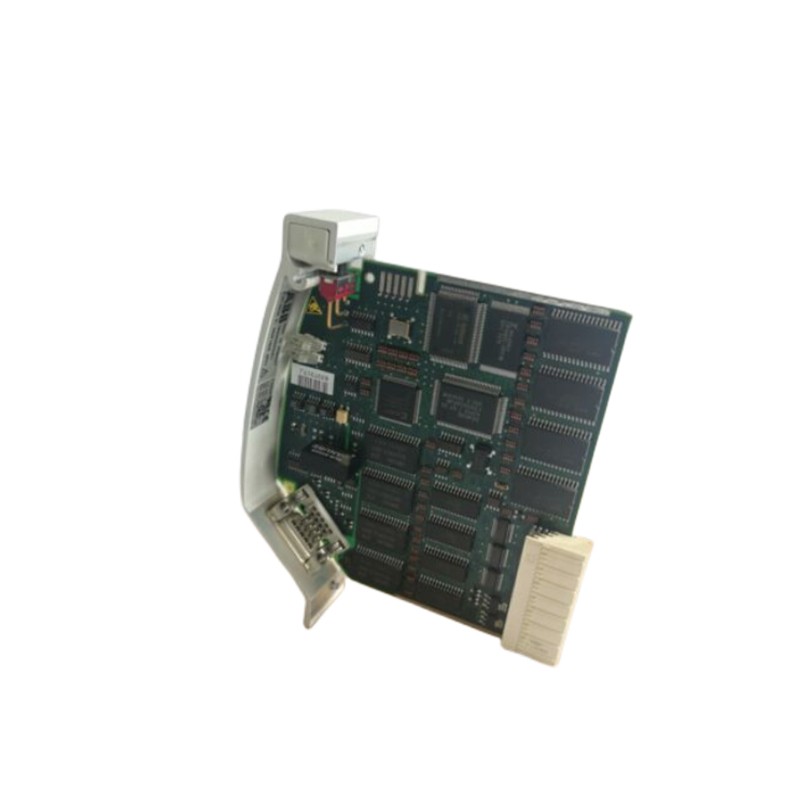

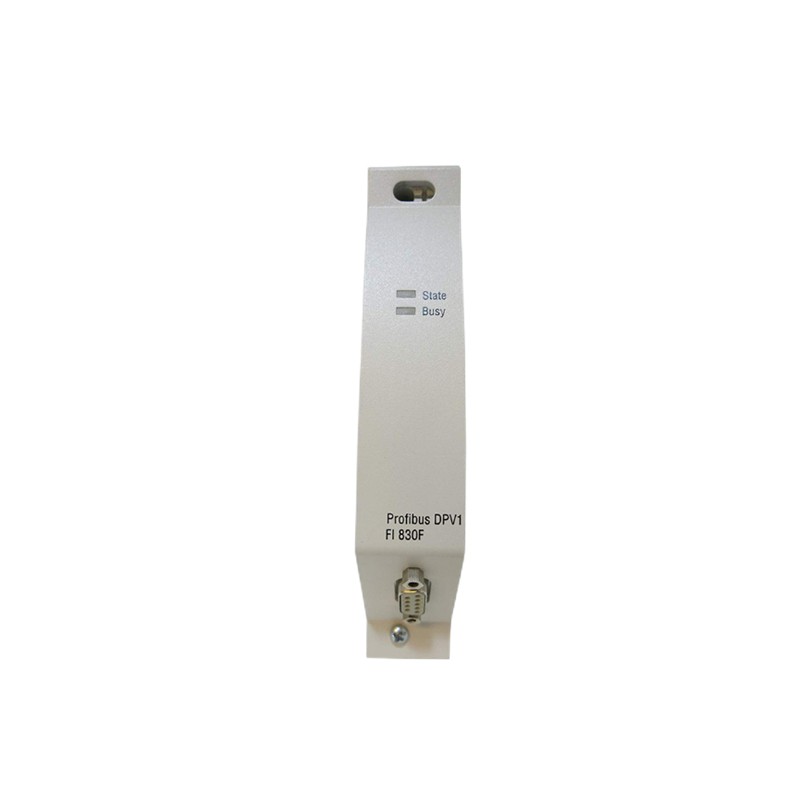

ABB 3BDH000032R1 FI 830F

Product Name: ABB FI 830F PROFIBUS-DP Fieldbus Module
Article Number: 3BDH000032R1
Manufacturer: ABB
System: ABB Freelance DCS / AC 800F Controller Platform

Product Overview

The ABB FI 830F (3BDH000032R1) is a PROFIBUS-DP Fieldbus Communication Module designed for the ABB Freelance DCS system. It provides a communication interface between the AC 800F controller and PROFIBUS-DP field devices, enabling reliable data exchange between control systems, remote I/O stations, drives, and intelligent field instruments.

The module is mainly used with ABB PM 802F or PM 803F processor units and acts as the PROFIBUS-DP master on the network.

Technical Specifications

Key Features

• PROFIBUS-DP Master Function
  • Provides high-speed communication between ABB controllers and distributed field devices.
  • Supports PROFIBUS-DP V1 functionality.
• High-Speed Data Communication
  • Supports baud rates up to 12 MBd, suitable for demanding industrial automation applications.
• Large Network Capacity
  • Allows connection of up to 126 PROFIBUS-DP slave devices.
• System Redundancy Capability
  • Supports redundant master configurations when used with redundant AC 800F controllers.
  • PROFIBUS line redundancy can be achieved with external redundancy equipment.
• Easy Engineering Integration
  • Configuration and parameterization can be performed directly through ABB Freelance engineering tools without additional PROFIBUS configuration software.

Application Areas

The ABB FI 830F module is widely used in:

• Process automation systems
• Power generation plants
• Chemical and petrochemical industries
• Water and wastewater treatment
• Manufacturing automation
• Distributed control systems (DCS)
• Remote I/O and intelligent field device networks

It is suitable for applications requiring stable PROFIBUS communication between central controllers and field-level equipment.

Compatible ABB Systems

• ABB Freelance DCS
• ABB AC 800F Controller
• ABB PM 802F Processor Unit
• ABB PM 803F Processor Unit

Conclusion

The ABB FI 830F (3BDH000032R1) is a reliable PROFIBUS-DP communication module for ABB Freelance automation systems. With high-speed RS-485 communication, support for up to 126 field devices, redundancy capability, and seamless integration with AC 800F controllers, it is an important component for modern industrial control and process automation networks.
