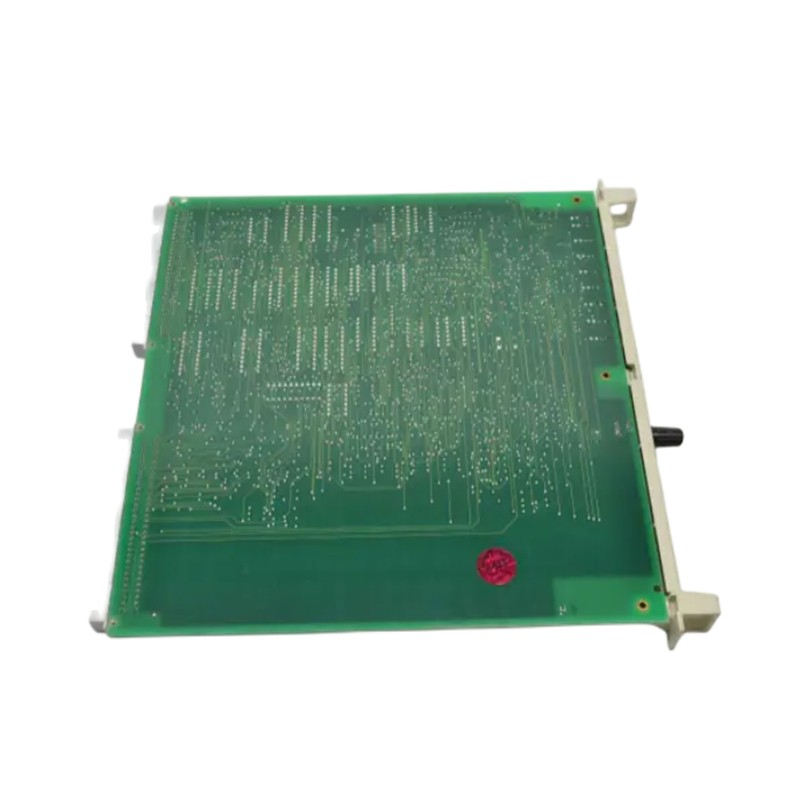

ABB 3BSE012211R1 DSBC 174

1. Product Identification

• Manufacturer: ABB
• Product ID: 3BSE012211R1
• Type Designation: DSBC 174
• Product Name: DSBC 174 Bus Extender S100 I/O Bus
• Product Type: Communication Module / Bus Extension Module
• System Family: ABB Advant OCS / S100 I/O System

The ABB DSBC 174 is an S100 I/O Bus Extender used to expand the I/O communication bus in ABB process control systems. It is installed as a bus extension interface, allowing additional S100 I/O racks to be connected to the controller system.

2. Technical Parameters

3. Product Features

S100 I/O Bus Expansion

The DSBC 174 extends the S100 I/O bus, enabling additional I/O racks to be connected when the standard controller bus capacity is insufficient.

Integration with ABB Control Systems

It is designed for use with ABB automation platforms including:

• Advant Controller systems
• MasterPiece 200 / 200-1 systems
• Advant OCS systems
• ABB 800xA environments using S100 I/O interfaces

Reliable Industrial Communication

The module provides stable communication between the controller and distributed S100 I/O modules, supporting large-scale process automation installations.

4. Structural Composition

The DSBC 174 typically consists of:

• Bus interface circuitry – manages communication between controller and S100 I/O bus.
• Backplane connection interface – provides rack-level integration.
• S100 I/O extension interface – connects remote I/O bus segments.
• Status indicators – provide operating and diagnostic information.
• Connection accessories – may be used with DSBC 174 connection kits such as cable assemblies and terminators.

5. Application Fields

Typical applications include:

• Power generation plants
  • Turbine control
  • Generator auxiliary systems
  • Plant monitoring
• Chemical and petrochemical industries
  • Continuous process control
  • Distributed I/O systems
• Oil & gas facilities
  • Large-scale automation networks
  • Remote instrumentation
• Water treatment and infrastructure
  • Distributed control systems
• Industrial manufacturing
  • Process monitoring and control systems

6. Compatible System Context

The DSBC 174 is commonly used as a bus extender slave module installed at the end position of an ABB S100 I/O rack. ABB documentation lists DSBC 174 as an adaptor/bus extender unit for S100 I/O racks.

Related accessories include:

• DSBC 174K11 connection kit
• DSBC 174K12 connection kit
• DSBC 174K21 / K25 / K26 / K41 / K45 / K46 extension kits

7. Maintenance Notes

• Verify the module type before replacement: DSBC 174 = 3BSE012211R1.
• Check S100 bus cabling and termination units during communication faults.
• Inspect connector contacts and rack backplane connections.
• Confirm compatibility with the existing Advant/800xA configuration before installation.
• Keep ESD protection during handling.

8. Conclusion

The ABB 3BSE012211R1 DSBC 174 is a dedicated S100 I/O Bus Extender Module designed for ABB Advant and related process control systems. It provides reliable expansion of S100 I/O networks, enabling larger distributed control architectures in industrial automation applications.
