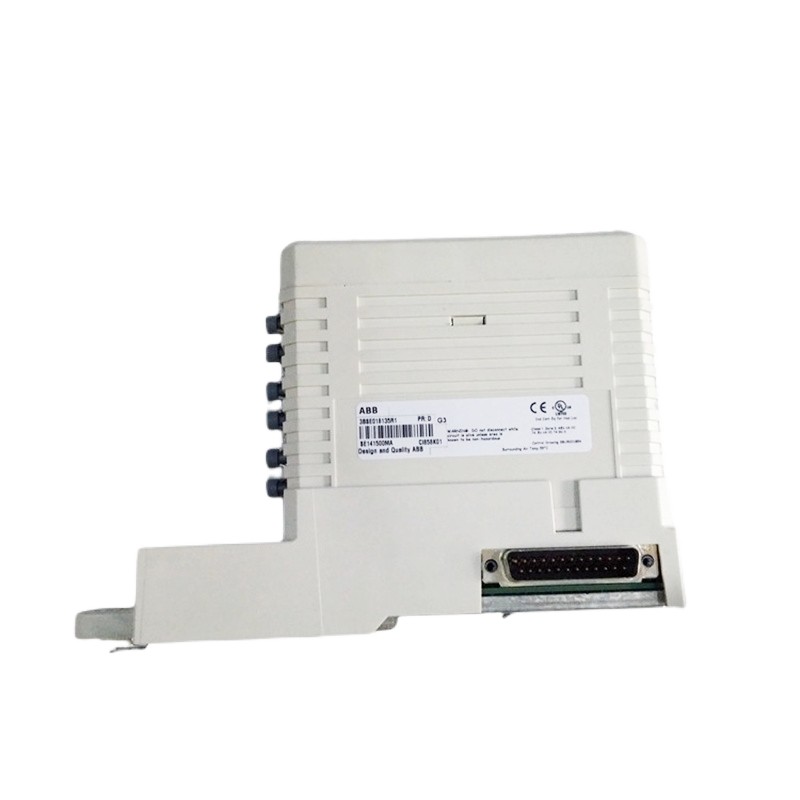

ABB 3BSE018135R1 CI858K01

1. Product Identification

• Manufacturer: ABB
• Product ID: 3BSE018135R1
• ABB Type Designation: CI858K01
• Product Name: CI858K01 DriveBus Interface
• Product Type: Communication Interface Module
• System Family: ABB Advant / AC 800M Controller System
• Protocol: ABB DriveBus communication

The ABB CI858K01 (3BSE018135R1) is a communication interface module used in ABB AC 800M automation systems. It provides a connection between the controller and ABB drives through the DriveBus network, enabling high-speed drive control, diagnostics, and parameter communication.

2. Technical Specifications

3. Package Composition

The CI858K01 kit includes:

• CI858 Communication Interface Module
• TP858 Baseplate

The TP858 provides the mechanical mounting and electrical connection interface for installation in an AC 800M controller configuration.

4. Main Features

DriveBus Communication

• Provides real-time communication between ABB controllers and ABB drive systems.
• Supports drive status monitoring, control commands, alarms, and parameter exchange.
• Designed for applications requiring synchronized drive operation.

Optical Communication Interface

The CI858 includes optical connectors for:

• DriveBus connection
• I/O-related communication
• Engineering/tool connection for ABB drive commissioning tools such as DriveWindow or DriveDebug.

AC 800M Integration

• Directly integrates with ABB AC 800M controllers.
• Installed through the CEX-Bus communication expansion interface.
• No additional external power supply is required.

5. Structural Composition

Typical hardware structure:

1. CI858 Communication Board
   • Processor and communication circuitry
   • Optical communication ports
   • Diagnostic LEDs
2. TP858 Baseplate
   • Mounting interface
   • CEX-Bus connection
   • Mechanical keying protection
3. Terminal/Optical Interfaces
   • DriveBus optical ports
   • Engineering communication interface

6. Typical Applications

The CI858K01 is commonly used in:

• Industrial drive control systems
  • ABB ACS series drives
  • Multi-drive production lines
• Process industries
  • Chemical plants
  • Oil & gas facilities
  • Pulp and paper production
• Power generation
  • Pump and fan control
  • Auxiliary drive systems
• Manufacturing automation
  • Rolling mills
  • Printing machines
  • Packaging lines

7. Advantages

• High-speed deterministic DriveBus communication
• Reliable ABB-native drive integration
• Reduced field wiring compared with traditional I/O connections
• Supports online diagnostics and commissioning
• Suitable for continuous industrial operation

8. Replacement / Maintenance Notes

When replacing a CI858K01:

• Verify compatibility with the existing AC 800M CPU and Control Builder configuration.
• Confirm the correct TP858 baseplate is installed.
• Check DriveBus optical cable type and connection.
• Ensure firmware compatibility between the CI858 and connected ABB drives.

9. Summary

The ABB 3BSE018135R1 CI858K01 DriveBus Interface is a dedicated AC 800M communication module for ABB DriveBus networks. It provides reliable, high-speed communication between ABB controllers and drives, making it an important component in automated production lines and process control systems.
