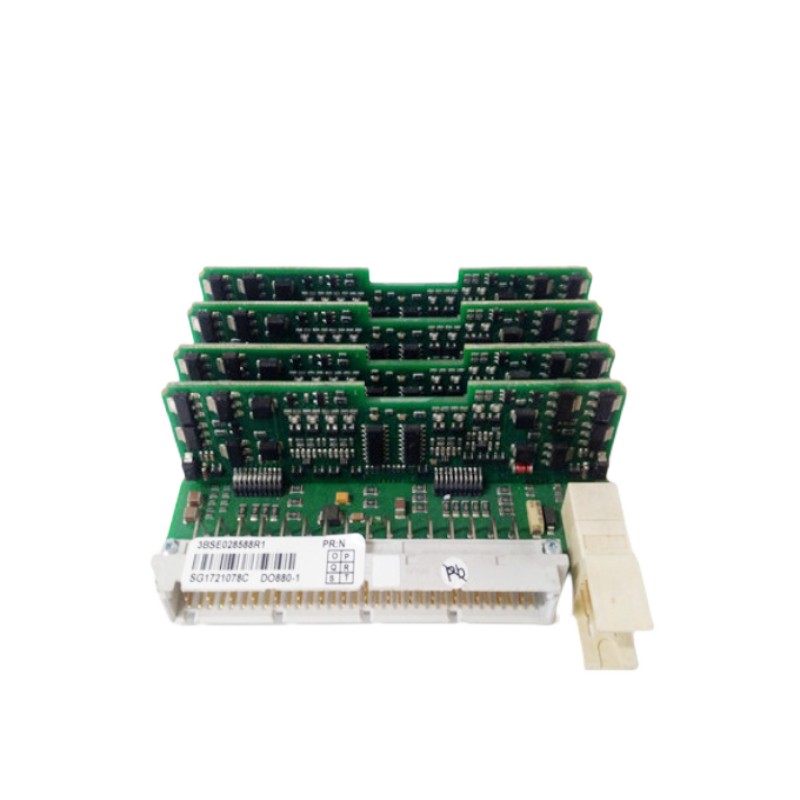

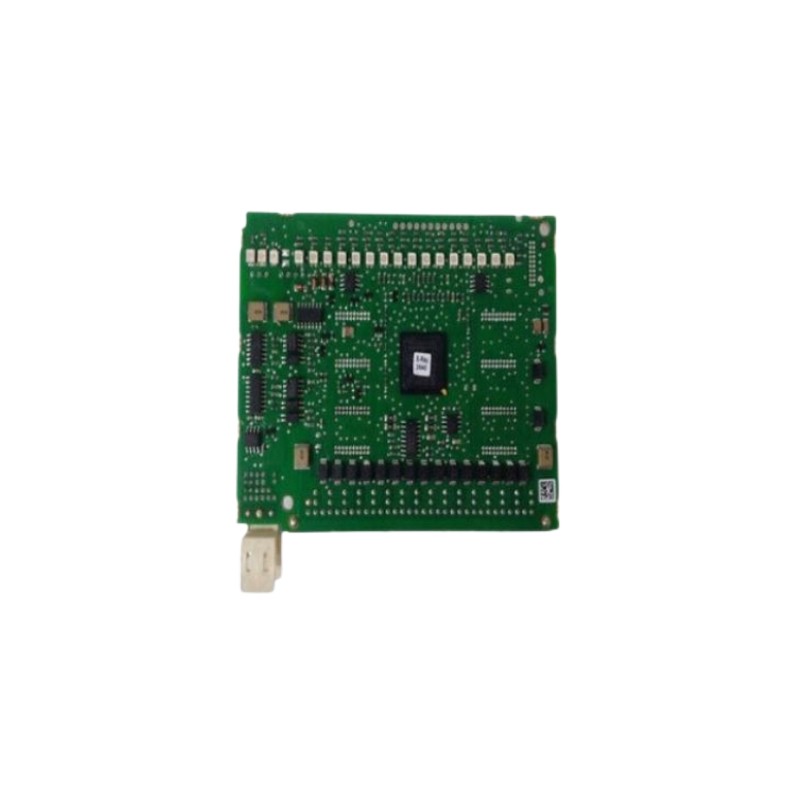

ABB 3BSE028588R1 DO880-1

ABB 3BSE028588R1 DO880-1 is a High Integrity Digital Output Module from the ABB S800 I/O family, designed for use with ABB System 800xA / AC 800M distributed control systems (DCS). It provides reliable 24 V DC digital output control for industrial actuators and safety-related applications.

1. Product Overview

The ABB DO880-1 is a 16-channel digital output (DO) module that delivers 24 V DC current-sourcing outputs. It supports both single and redundant configurations, making it suitable for high-availability process automation systems.

The module is designed to interface the control system with field devices such as:

• Solenoid valves
• Relays and contactors
• Actuators
• Motor control devices
• Alarm indicators
• Process shutdown equipment

It includes built-in diagnostics, channel protection, and safety features for demanding industrial environments.

2. Technical Parameters

3. Key Features

High Integrity Operation

• Supports safety-related applications.
• Designed for systems requiring high availability.
• Supports fault tolerance features for output drivers.

Advanced Diagnostics

The DO880-1 provides:

• Output status indication LEDs
• Channel-level fault monitoring
• Loop supervision
• Short-circuit detection
• Open-load monitoring
• Internal module diagnostics

Output Protection

Each output channel includes:

• Current limitation
• Over-temperature protection
• EMC protection
• Inductive load suppression

These functions improve reliability when driving field loads.

4. Structural Composition

The module typically consists of:

• S800 I/O electronics module
  • Processor and diagnostic circuitry
  • Output driver circuits
  • Communication interface
• Output channel circuits
  • 16 independent 24 V DC output channels
  • High-side driver technology
  • Protective components
• LED indicators
  • Module status
  • Run/fault indication
  • Individual channel status
• Terminal connection interface
  • Connects through compatible ABB Module Termination Units (MTUs)

5. Application Fields

ABB DO880-1 modules are commonly used in:

Power Generation

• Turbine control systems
• Boiler control
• Generator auxiliary systems

Oil & Gas

• Emergency shutdown systems
• Valve control
• Compressor control

Chemical & Petrochemical

• Process interlocks
• Batch control systems
• Safety instrumented functions

Water Treatment

• Pump control
• Valve automation
• SCADA-connected systems

Manufacturing

• Machine control
• Sequence automation
• Industrial equipment monitoring

6. Compatible ABB Systems

The DO880-1 is typically integrated with:

• ABB System 800xA
• ABB AC 800M controllers
• ABB S800 I/O stations

Common supporting components include:

• S800 I/O Module Termination Units (MTUs)
• ABB AC 800M controllers
• ABB Modulebus communication interfaces

7. Advantages

• High-density 16-channel output design
• Suitable for redundant architectures
• Strong diagnostic capability
• Reduced downtime through hot maintenance capability
• Industrial-grade reliability
• Suitable for safety-oriented automation applications

Conclusion

The ABB 3BSE028588R1 DO880-1 is a robust S800 I/O high-integrity digital output module designed for reliable 24 V DC field control in ABB automation environments. With 16 protected output channels, redundancy support, advanced diagnostics, and SIL3 capability, it is widely used in process industries requiring dependable and safe control of field devices.
