ABB 3BSE032401R1 PU515A

1. Product Introduction

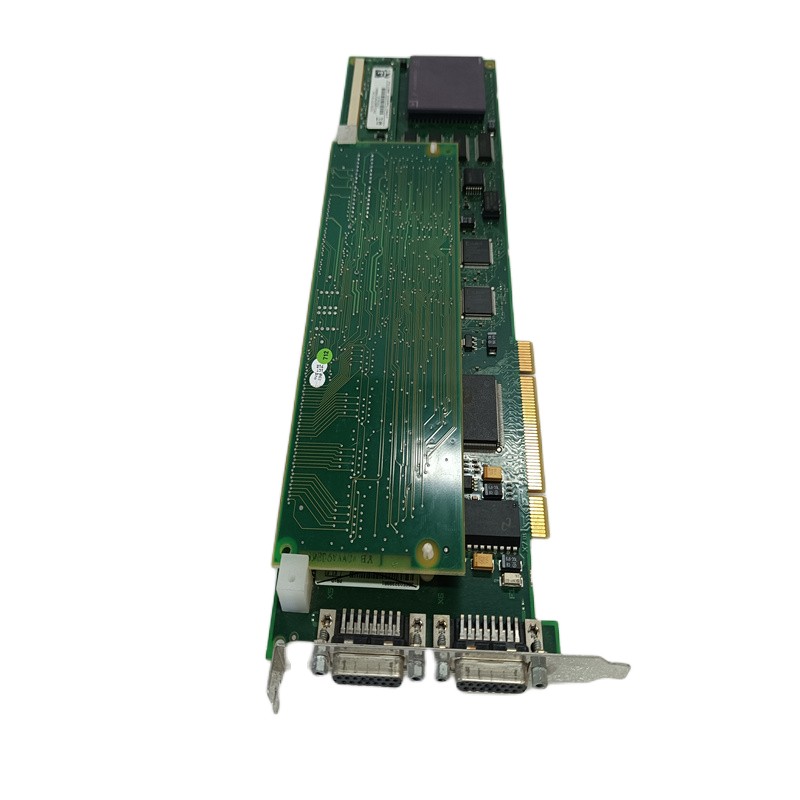

ABB 3BSE032401R1 (PU515A) is a Real-Time Accelerator (RTA) board designed for ABB Advant OCS / Advant Master / MOD eDCN systems. It functions as a high-speed communication and processing interface installed in industrial computer workstations, providing real-time communication between operator stations and ABB control system components.

The PU515A integrates a CS503V1 dual-channel MB300 communication module and is designed for PCI-based computer platforms.

2. Product Model Information

3. Technical Parameters

4. Main Features

Real-Time Communication Processing

• Provides dedicated processing resources for ABB control system communication.
• Reduces workstation communication load and improves response performance.
• Supports ABB proprietary MB300 control network communication.

Dual-Channel Communication

• Equipped with two MB300 communication channels.
• Enables connection to multiple ABB control system nodes.

PCI-Based Integration

• Designed for industrial PCs and ABB operator workstation environments.
• Supports installation in standard PCI and PCI-X expansion slots.

5. Structural Composition

The PU515A consists mainly of:

• PCI interface circuit
• Real-time accelerator processor unit
• CS503V1 dual-channel MB300 communication module
• 16 MB memory subsystem
• Dual D-sub communication connectors
• Board-level diagnostic and communication circuitry

6. Application Fields

ABB PU515A is mainly used in legacy ABB automation environments, including:

• Power generation control systems
• Oil & gas process automation
• Chemical plants
• Manufacturing process control
• ABB Advant Master operator stations
• MOD 300 eDCN communication systems

Typical applications include:

• Operator station communication
• Controller data exchange
• Real-time process monitoring
• Industrial network interface acceleration

7. Compatibility and Replacement Notes

The PU515A was used in ABB Advant Master-based systems. ABB documentation indicates that PU515A is no longer supported in 800xA for Advant Master 6.0, and systems upgraded to that version require replacement with newer RTA hardware such as PU410.

For existing legacy systems, PU515A remains important as a spare part for maintaining installed Advant OCS/Master platforms.

8. Conclusion

The ABB 3BSE032401R1 PU515A Real-Time Accelerator Board is a specialized communication accelerator used in ABB Advant automation systems. With dual-channel MB300 communication, PCI interface compatibility, and dedicated real-time processing capability, it provides reliable communication performance for legacy ABB DCS installations. Due to its legacy status, it is primarily maintained through spare-part channels, refurbishment, or system migration projects.
