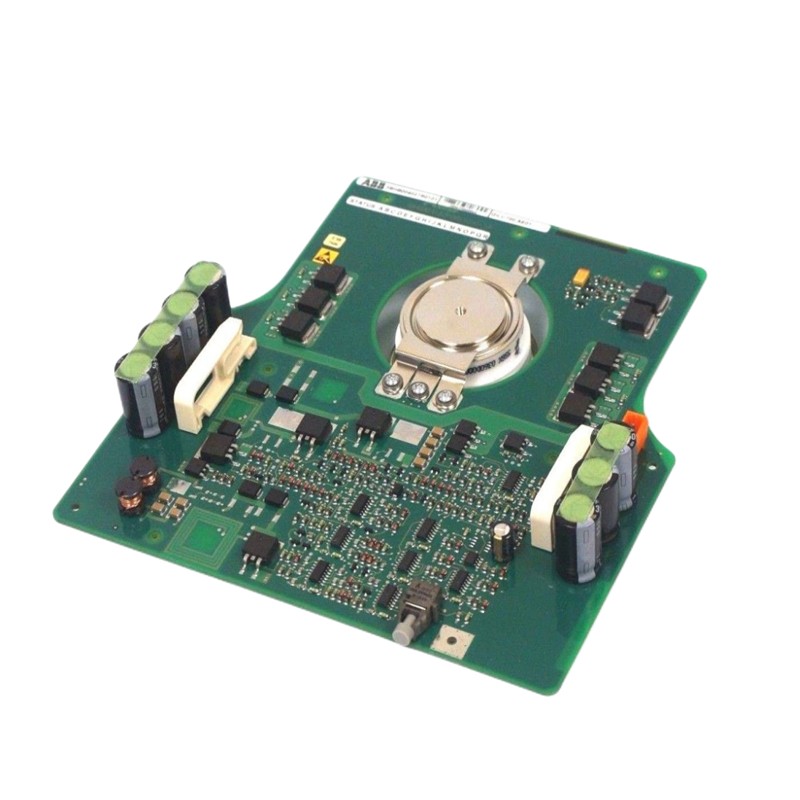

ABB 5SGY3545L0009 3BHL000986P3004

The ABB 5SGY3545L0009 (3BHL000986P3004) is a high-power IGCT semiconductor module designed for medium- and high-voltage power conversion applications. It combines the high current capability of a thyristor with the fast switching performance of an IGBT, making it suitable for demanding industrial power electronics systems.

This IGCT module is widely used in ABB high-power converters, medium-voltage drives, power transmission equipment, and industrial energy conversion systems where high efficiency, reliability, and rugged performance are required.

2. Technical Specifications (Typical)

Note: Actual operating parameters depend on the specific ABB converter platform and application conditions. Refer to ABB official datasheets for exact specifications.

3. Product Features

High Voltage and High Current Capability

The 5SGY3545L0009 is designed to handle extremely high electrical power levels, making it suitable for MW-class power conversion systems.

Fast Switching Performance

IGCT technology provides fast switching capability compared with conventional thyristors, improving system efficiency and reducing switching losses.

High Reliability

The module is engineered for continuous industrial operation with excellent thermal performance and long service life.

Low Conduction Loss

The device offers low on-state losses during high-power operation, helping improve overall system efficiency.

Modular Design

The compact semiconductor module structure allows easy integration into ABB power converter assemblies.

4. Structural Composition

The ABB 5SGY3545L0009 IGCT module typically consists of:

• IGCT semiconductor wafer assembly
• Integrated gate drive interface
• High-current power terminals
• Insulated housing structure
• Thermal interface components
• Mechanical mounting system

The module normally operates together with dedicated cooling systems, gate driver units, and converter control equipment.

5. Application Areas

The ABB 5SGY3545L0009 is commonly used in:

• Medium-voltage variable frequency drives (MV Drives)
• Large motor drive systems
• Industrial power converters
• Static Var Compensation (SVC) systems
• Power transmission and grid stabilization equipment
• Mining, metallurgy, and heavy industrial applications
• Marine propulsion systems
• Renewable energy power conversion systems

6. Installation and Maintenance Notes

Before replacement or installation, verify:

• Exact IGCT model compatibility
• ABB part number matching (3BHL000986P3004)
• Gate driver compatibility
• Cooling system requirements
• Mechanical mounting conditions

Recommended handling procedures:

• Use proper ESD protection
• Ensure correct tightening torque for power connections
• Check insulation resistance before operation
• Inspect terminals and connectors for damage

7. Conclusion

The ABB 5SGY3545L0009 / 3BHL000986P3004 IGCT module is a high-performance power semiconductor component designed for demanding high-voltage and high-current applications. With excellent switching performance, low losses, and high reliability, it is a key component in ABB medium-voltage drives, industrial converters, and advanced power electronics systems.
