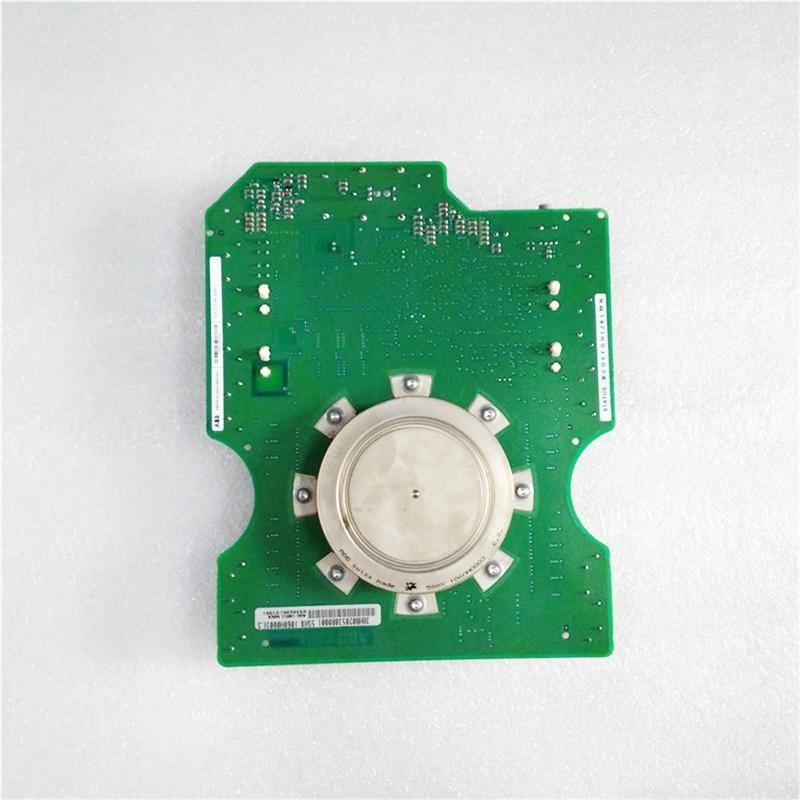

ABB 5SHX1060H0003 3BHB020538R0001 3BHE024415R0101 GVC714A101

1. Product Identification

• Manufacturer: ABB
• Product Type: IGCT (Integrated Gate-Commutated Thyristor) Power Semiconductor Module
• Main Part Number: 5SHX1060H0003
• ABB Article Number: 3BHB020538R0001
• Related Part Number: 3BHE024415R0101
• Module Type / Designation: GVC714A101
• Category: Medium-voltage drive & high-power converter component

The ABB 5SHX1060H0003 is an advanced IGCT power switching module designed for high-power electrical conversion systems. It integrates high-speed switching capability with high voltage and current handling, making it suitable for demanding industrial power applications.

2. Technical Parameters (Typical)

Note: Exact electrical ratings should be confirmed from ABB official datasheet documentation for the specific revision.

3. Product Features

High Power Density

The IGCT technology combines the robustness of traditional thyristors with the controllability of transistor-based switching devices, allowing efficient operation in high-power conversion systems.

Fast Switching Performance

• Supports high-frequency switching operations
• Reduces switching losses
• Improves converter efficiency

Integrated Gate Control

The IGCT design incorporates a dedicated gate driver interface, enabling precise control of the semiconductor switching process.

High Reliability

The press-pack structure provides:

• Excellent thermal performance
• Mechanical strength
• Long service life under industrial operating conditions

4. Structural Composition

The module typically consists of:

1. IGCT Semiconductor Chip
   • Main power switching element
   • Handles high voltage and current loads
2. Anti-parallel Diode
   • Provides reverse current conduction path
   • Improves converter operation stability
3. Gate Drive Assembly
   • Controls IGCT switching behavior
   • Provides fast triggering and turn-off capability
4. Press-Pack Housing
   • Ensures electrical insulation
   • Provides effective heat transfer

5. Application Fields

ABB 5SHX1060H0003 modules are mainly used in:

• Medium Voltage AC Drives
• High-power industrial inverters
• Power conversion systems
• Mining and metals equipment
• Marine propulsion systems
• Renewable energy converters
• Industrial energy management systems

They are commonly associated with ABB high-power drive platforms such as medium-voltage converter systems.

6. Advantages

• High voltage and current capability
• Low conduction losses
• Efficient power conversion
• Robust industrial design
• Suitable for continuous-duty operation
• Long operational lifetime

7. Conclusion

The ABB 5SHX1060H0003 (3BHB020538R0001 / 3BHE024415R0101 / GVC714A101) is a high-power IGCT module assembly intended for ABB medium-voltage drives and industrial power conversion equipment. It provides reliable high-speed switching, efficient energy conversion, and strong thermal performance for demanding industrial applications.
