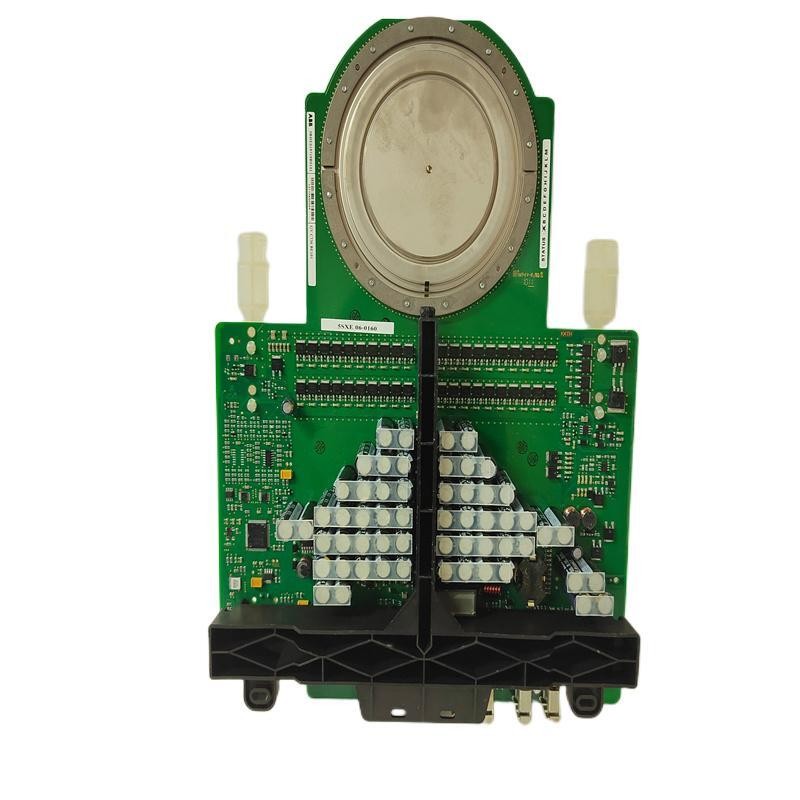

ABB IGCT 5SHY3545L0016

The ABB 5SHY3545L0016 is a high-power Integrated Gate-Commutated Thyristor (IGCT) semiconductor device designed for medium-voltage and high-power conversion systems. It belongs to ABB’s advanced IGCT power semiconductor family and is mainly used as the core switching component in medium-voltage drives, industrial converters, and high-power energy conversion equipment.

Compared with conventional GTO thyristors, IGCT technology integrates the gate drive unit directly with the semiconductor device, providing faster switching performance, lower conduction losses, and higher operational reliability for demanding industrial applications.

---

2. Product Parameters

Parameter	Specification
Manufacturer	ABB
Product Type	IGCT (Integrated Gate-Commutated Thyristor)
Model	5SHY3545L0016
ABB Assembly Reference	3BHB020720R0002
Semiconductor Technology	IGCT / Power Thyristor Technology
Voltage Class	Approx. 4.5 kV
Current Capability	High-current class (around 3.5 kA level depending on application configuration)
Package Type	Press-pack hermetic package
Gate Control	Integrated gate drive interface
Cooling Method	Forced cooling (system dependent, typically liquid cooling in high-power assemblies)
Application Platform	ABB ACS6000 and other high-power converter platforms
Communication Interface	Fiber-optic isolated gate control



---

3. Core Functions

The primary function of the 5SHY3545L0016 IGCT is to act as a high-power electronic switch in inverter and converter circuits.

Its main functions include:

High-speed power switching

The IGCT controls high-voltage and high-current energy flow by rapidly switching between conduction and blocking states.

Efficient energy conversion

It enables efficient conversion between:

• AC and DC power
• DC voltage levels
• Motor drive power flow

Controlled turn-off capability

Unlike traditional thyristors that require external commutation circuits, IGCT devices can actively turn off through gate control, simplifying converter design.

High overload capability

The press-pack structure provides strong resistance against thermal cycling and electrical stress, improving long-term reliability in industrial environments.

---

4. Design Features

Integrated Gate Structure

The IGCT combines:

• Power semiconductor wafer
• Gate electrode
• Gate drive connection

into a compact switching unit.

This reduces parasitic inductance and improves switching performance compared with traditional GTO solutions.

---

Press-Pack Mechanical Design

The press-pack structure provides:

• Uniform mechanical pressure distribution
• Improved thermal transfer
• Better resistance to vibration
• Reliable short-circuit failure behavior

Unlike solder-based semiconductor packages, press-pack technology avoids common issues such as solder fatigue and bond-wire failure.

---

High Power Density

The device is optimized for applications requiring:

• High voltage blocking capability
• Large current handling
• Compact converter design

It allows ABB converters to achieve higher power output with fewer semiconductor components.

---

Low Switching Loss

Compared with older GTO technology, IGCT provides:

• Faster turn-off operation
• Reduced switching energy loss
• Higher converter efficiency



---

5. Hardware Composition

A typical ABB 5SHY3545L0016 power switching assembly consists of several key elements:

1. IGCT Semiconductor Element

The core silicon device responsible for:

• Current conduction
• Voltage blocking
• Switching operation

---

2. Gate Drive Unit

The gate driver provides:

• Turn-on pulses
• Turn-off control
• Protection monitoring

Typical ABB gate-control components include GVC-series gate units used with IGCT assemblies.

---

3. Cooling Interface

The IGCT requires effective heat removal through:

• Liquid cooling plates
• Heat sinks
• Thermal contact surfaces

to maintain semiconductor junction temperature within limits.

---

4. Mechanical Clamping Structure

The press-pack assembly includes:

• Compression hardware
• Electrical contact surfaces
• Insulation components

ensuring stable electrical and thermal performance.

---

6. Application Scenarios

Medium Voltage Drives

The 5SHY3545L0016 is widely used in ABB medium-voltage drive systems such as:

• Mining equipment drives
• Steel mill drives
• Marine propulsion systems
• Large pump and fan applications

These systems require high torque output and continuous operation.

---

Industrial Power Converters

Typical applications include:

• High-power AC/DC converters
• Motor regenerative systems
• Industrial energy conversion equipment

---

HVDC and Grid Power Applications

IGCT technology is also used in advanced power conversion systems requiring:

• High efficiency
• High reliability
• Compact converter structures



---

Renewable Energy Systems

Potential applications include:

• Wind power converters
• Large-scale energy storage converters
• Grid stabilization equipment

---

7. Maintenance Points

1. Check Cooling System

Because IGCT devices operate at high power levels, technicians should regularly inspect:

• Cooling flow rate
• Cooling liquid quality
• Heat exchanger performance
• Thermal contact surfaces

---

2. Inspect Gate Drive System

Important checks include:

• Gate pulse waveform
• Fiber-optic communication status
• Driver fault alarms
• Insulation condition

Abnormal gate signals can cause switching failures.

---

3. Monitor Electrical Parameters

Regular monitoring should include:

• DC-link voltage
• Switching current
• Overcurrent events
• Voltage imbalance between devices

---

4. Mechanical Inspection

For press-pack IGCT assemblies:

• Verify clamping force
• Check contact surfaces
• Inspect signs of overheating
• Confirm correct installation torque

Improper mechanical pressure may cause thermal failure.

---

5. Replacement Considerations

When replacing an IGCT module:

• Confirm exact ABB part number compatibility
• Check matching gate driver versions
• Verify cooling assembly condition
• Perform insulation and switching tests before commissioning

---

8. Comprehensive Evaluation

The ABB 5SHY3545L0016 IGCT represents ABB’s high-power semiconductor technology for demanding industrial converter applications.

Its main advantages are:

• Excellent high-voltage and high-current capability
• Fast and controllable switching
• High thermal reliability
• Robust press-pack construction
• Long service life in continuous industrial operation

Compared with traditional thyristor solutions, IGCT technology provides a more compact and efficient approach for modern medium-voltage power conversion.

Overall, the 5SHY3545L0016 is a high-reliability power switching component designed for heavy-duty industrial energy conversion systems, especially where efficiency, durability, and operational stability are critical.
