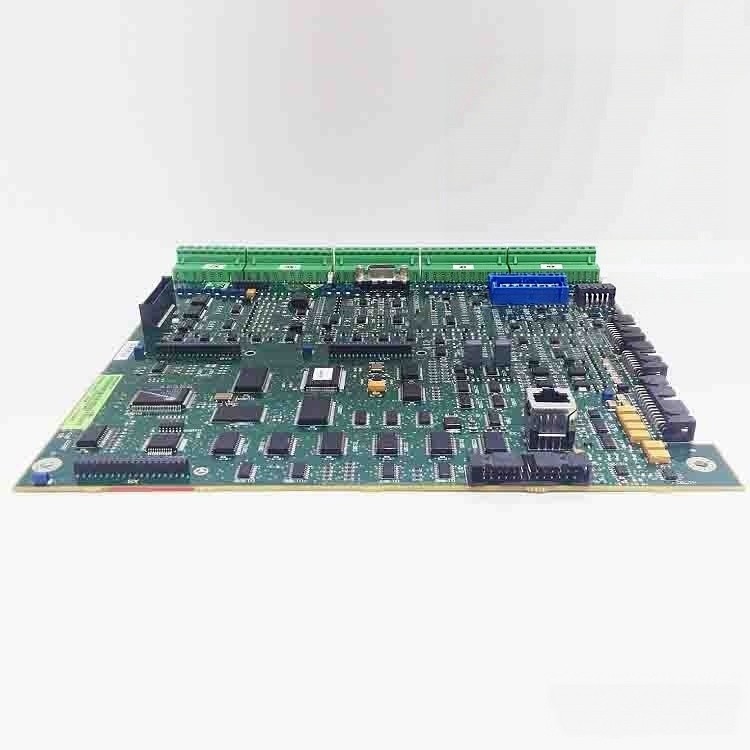

ABB SDCS‑CON‑4 3ADT313900R1501

The ABB SDCS-CON-4 (3ADT313900R1501) is the main control board (Control Board / CPU Board) used in ABB DCS800 series DC drive systems. It serves as the central processing and control unit of the drive, responsible for executing drive control algorithms, managing I/O signals, processing feedback data, and coordinating communication between the drive controller and external automation systems.

Within the DCS800 architecture, the SDCS-CON-4 acts as the "brain" of the converter system. It replaces the earlier SDCS-CON-2 / SDCS-CON-2A generation boards and provides improved processing capability, firmware storage, diagnostics, and system integration functions.

It is mainly applied in ABB high-performance DC drive platforms requiring precise speed, torque, and current control.

---

2. Product Parameters

Item	Description
Manufacturer	ABB
Product Type	Main Control Board / CPU Control Board
Model	SDCS-CON-4
Order Code	3ADT313900R1501
Compatible System	ABB DCS800 DC Drive Series
Board Function	Drive control, signal processing, communication management
Power Supply	Internal DC control supply (24 V class system supply)
Firmware Storage	FlashPROM
Communication	Serial communication interfaces (RS-232 / RS-485 related interfaces depending on configuration)
Digital I/O	Supports digital input/output expansion
Analog Processing	Supports voltage/current feedback processing
Monitoring Function	Voltage supervision, watchdog monitoring
Operating Environment	Industrial automation environment
Replacement Reference	Replaces 3ADT313900R1001 version

---

3. Core Function

3.1 Drive Control Execution

The primary task of SDCS-CON-4 is to execute the control software of the DCS800 drive.

It performs:

• Current loop regulation
• Speed loop control
• Torque control
• Field excitation control
• Protection logic processing
• Drive sequencing control

The board receives feedback signals from power interface boards and sensors, calculates control commands, and outputs firing/control signals to the thyristor power section.

---

3.2 Signal Processing and Feedback Management

The board processes:

• Armature current feedback
• Motor speed feedback
• Voltage measurement signals
• Temperature monitoring signals
• Encoder feedback signals

This enables stable closed-loop motor control.

---

3.3 Communication Management

SDCS-CON-4 provides the communication bridge between:

• Operator panels
• Engineering tools
• Higher-level PLC/DCS systems
• Optional communication modules

Parameters and firmware information can be managed through ABB configuration tools and drive interfaces.

---

3.4 System Diagnostics

Integrated diagnostic functions include:

• Fault detection
• Self-monitoring
• Watchdog supervision
• Supply voltage monitoring
• Drive status indication

The onboard watchdog helps ensure reliable execution of the control program.

---

4. Design Features

4.1 Embedded Control Architecture

The SDCS-CON-4 integrates:

• Processor unit
• Memory system
• Communication circuits
• Signal conditioning circuits
• Monitoring circuits

This reduces external control hardware requirements and improves system reliability.

---

4.2 FlashPROM Firmware Storage

A major design advantage is onboard non-volatile firmware storage.

Benefits:

• Firmware remains after power loss
• Easier replacement procedure
• Reduced commissioning time
• Simplified spare board management



---

4.3 Modular ABB Drive Architecture

The board is designed to work together with ABB DCS800 modules such as:

• SDCS-PIN interface boards
• SDCS-POW power supply boards
• I/O expansion boards

The modular design allows easier maintenance and system upgrades.

---

4.4 Industrial Reliability Design

The board includes:

• Electrical isolation interfaces
• Noise-resistant signal processing
• Industrial temperature tolerance
• Continuous operation capability

It is designed for demanding industrial environments.

---

5. Hardware Composition

The SDCS-CON-4 mainly consists of the following functional sections:

5.1 CPU Processing Unit

Responsible for:

• Running drive firmware
• Executing control algorithms
• Handling communication tasks

---

5.2 Memory System

Includes:

• FlashPROM firmware memory
• Parameter storage area
• Runtime data memory

---

5.3 Analog Signal Interface

Handles:

• Current feedback
• Voltage feedback
• Analog references
• Sensor signals

---

5.4 Digital I/O Interface

Used for:

• Start/stop commands
• External interlocks
• Fault reset
• Drive status outputs

---

5.5 Communication Interface

Provides connection with:

• Operator panels
• Programming tools
• Automation networks

---

5.6 Diagnostic Display

A status display interface provides:

• Drive operating state
• Fault information
• Commissioning assistance



---

6. Application Scenarios

6.1 Steel and Metal Processing

Used in:

• Rolling mills
• Coil processing lines
• Steel finishing equipment

Advantages:

• High torque accuracy
• Fast dynamic response
• Stable speed regulation

---

6.2 Paper and Printing Industry

Applications:

• Paper machines
• Web handling systems
• Roll drives

Benefits:

• Precise speed synchronization
• Smooth acceleration/deceleration

---

6.3 Mining and Heavy Machinery

Used for:

• Conveyor drives
• Hoisting systems
• Large DC motors

Benefits:

• High overload capability
• Reliable operation under heavy loads

---

6.4 Marine and Industrial Drives

Applicable to:

• Ship propulsion systems
• Large auxiliary motors
• Industrial DC drive retrofits

---

7. Maintenance Points

7.1 Check Power Supply Quality

Verify:

• Control voltage stability
• 5 V CPU supply condition
• Abnormal voltage alarms

Unstable supply voltage may cause CPU reset or communication failure.

---

7.2 Inspect Connectors

Regularly check:

• Board connectors
• Ribbon cables
• Interface terminals

Poor contact can cause:

• Feedback errors
• Communication faults
• Intermittent shutdowns

---

7.3 Protect Against Environmental Damage

Avoid:

• Dust accumulation
• Moisture
• Conductive contamination
• Excessive vibration

For harsh environments, coated versions may provide additional protection.

---

7.4 Firmware and Parameter Backup

Before replacing the board:

• Save drive parameters
• Record firmware version
• Verify compatibility

---

7.5 Fault Diagnosis

Common symptoms:

Symptom	Possible Cause
Drive cannot start	Control board failure or communication issue
Random reset	Power supply instability
Missing feedback	Interface or signal processing fault
Communication loss	Serial interface or configuration problem
Incorrect control response	Parameter/firmware mismatch

---

8. Comprehensive Evaluation

The ABB SDCS-CON-4 3ADT313900R1501 is a critical control component in ABB DCS800 DC drive systems. As the central controller, it provides the processing power, control algorithms, communication capability, and diagnostic functions required for advanced DC motor applications.
