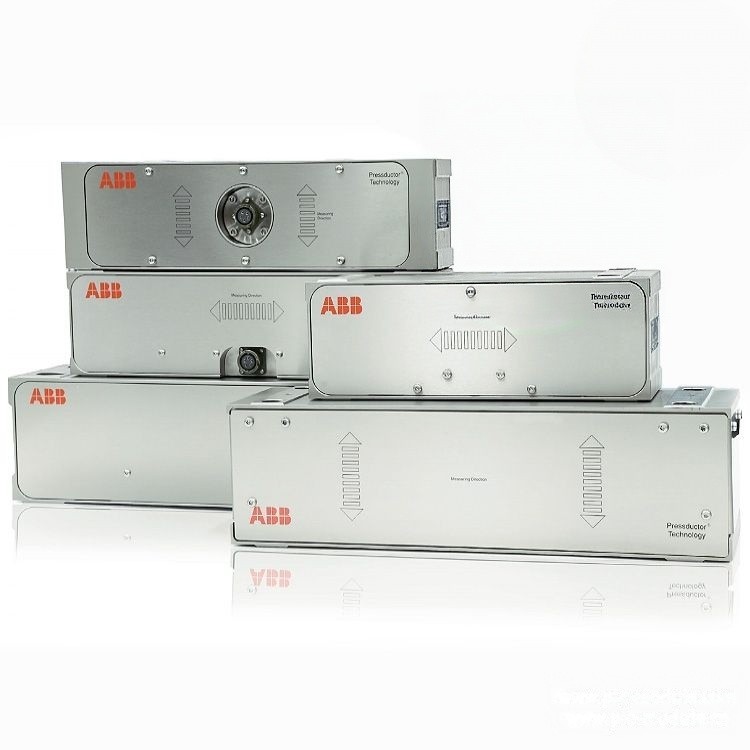

ABB PFCL201C‑20KN

ABB PFCL201C-20KN is a Pressductor® PillowBlock Load Cell designed for vertical force measurement and strip tension control in industrial processing lines. It belongs to ABB’s Millmate strip tension measurement family and is mainly used in steel processing equipment such as annealing, pickling, galvanizing, and rolling lines.

---

1. Product Positioning

ABB PFCL201C-20KN is a high-strength industrial load cell for web/strip tension measurement.

Unlike conventional strain-gauge load cells, it uses ABB Pressductor electromagnetic force measurement technology, providing high mechanical robustness, excellent overload resistance, and stable measurement performance in harsh industrial environments.

Main positioning:

• Industrial strip tension sensing element
• Vertical force measurement device
• Component of ABB Millmate tension control systems
• Designed for continuous process industries
• Suitable for high-temperature, dusty, corrosive environments

---

2. Core Functions

2.1 Vertical Force Measurement

The PFCL201C measures the vertical force applied through a roll bearing housing.

Typical measurement principle:

Strip tension → Roll force → Bearing housing → Load cell → Electrical signal → Tension controller

It can measure force in both directions, making it suitable for bidirectional tension monitoring.

---

2.2 Strip Tension Control

The sensor provides accurate tension feedback for:

• Steel strip processing lines
• Coil handling systems
• Continuous annealing lines
• Pickling lines
• Galvanizing lines

Accurate tension feedback helps prevent:

• Strip breakage
• Wrinkles
• Uneven coating
• Product quality variations



---

2.3 Mechanical Load Monitoring

Besides tension control, it can monitor:

• Roll loading forces
• Mechanical stress conditions
• Process stability

---

3. Design Features

3.1 Pressductor® Technology

The sensor uses ABB’s electromagnetic Pressductor principle:

• No traditional foil strain gauges
• High resistance to shock and overload
• Stable long-term performance
• Less sensitivity to mechanical damage



---

3.2 Solid Stainless-Steel Construction

The load cell is machined from a single block of stainless steel.

Advantages:

• High mechanical strength
• Excellent corrosion resistance
• High stiffness
• Low deformation



---

3.3 High Overload Capability

For the 20 kN version:

Parameter	Value
Rated measurement load	20 kN
Extended load	30 kN
Permitted transverse load	10 kN
Overload capacity (measurement direction)	200 kN
Deflection at rated load	0.020 mm



---

4. Hardware Composition

Mechanical Structure

Main components:

• Stainless-steel load body
• Integrated Pressductor sensing elements
• Mounting holes
• Bearing housing interface
• Cable/connector interface

---

Electrical Interface

PFCL201C version:

• Equipped with Cannon connector
• Requires connection to ABB tension electronics/controllers

Other variants:

Model	Connection Type
PFCL201C	Cannon connector
PFCL201CD	Fixed 20 m cable
PFCL201CE	Mill-duty cable with protective hose



---

Main Technical Data

Specification	Value
Product	PFCL201C-20KN
ABB Order Number	3BSE027070R20
Measurement type	Vertical force
Rated load	20 kN
Accuracy class	±0.5%
Repeatability error	< ±0.05%
Material	Stainless steel SIS 2387 / DIN X4CrNiMo165
Weight	Approx. 35–37 kg
Operating temperature	-10…+90 °C



---

5. Typical Applications

Steel Industry

Common installations:

• Continuous annealing lines
• Hot-dip galvanizing lines
• Pickling lines
• Tandem cold rolling mills

---

Process Industries

Used for:

• Web tension measurement
• Roll force monitoring
• Strip handling systems
• Production line automation



---

6. Maintenance Considerations

Mechanical Inspection

Regularly check:

• Mounting bolts
• Bearing housing alignment
• Mechanical deformation
• Foreign material accumulation

Incorrect installation can introduce measurement errors.

---

Cable and Connector Maintenance

Inspect:

• Connector corrosion
• Cable insulation
• Protective hose damage
• Water ingress

Especially important in:

• Pickling environments
• Wet processing lines
• High-temperature areas

---

Calibration

Recommended actions:

• Verify zero point stability
• Compare output against reference loads
• Check tension controller calibration

---

Replacement Considerations

When replacing:

• Confirm 20 kN capacity
• Verify PFCL201C compatibility
• Check mechanical dimensions
• Confirm controller compatibility

---

7. Comprehensive Evaluation

Category	Evaluation
Measurement accuracy	★★★★★
Mechanical durability	★★★★★
Harsh environment capability	★★★★★
Long-term stability	★★★★★
Maintenance requirement	Low
Industrial suitability	Excellent

Overall assessment:

ABB PFCL201C-20KN is a premium industrial tension measurement load cell optimized for demanding continuous-process applications. Its Pressductor technology, stainless-steel construction, and high overload tolerance make it particularly suitable for steel mills and heavy industrial production lines where reliability is more important than low-cost sensing.

It is best considered a critical measurement component in ABB Millmate strip tension control systems rather than a standalone sensor.
