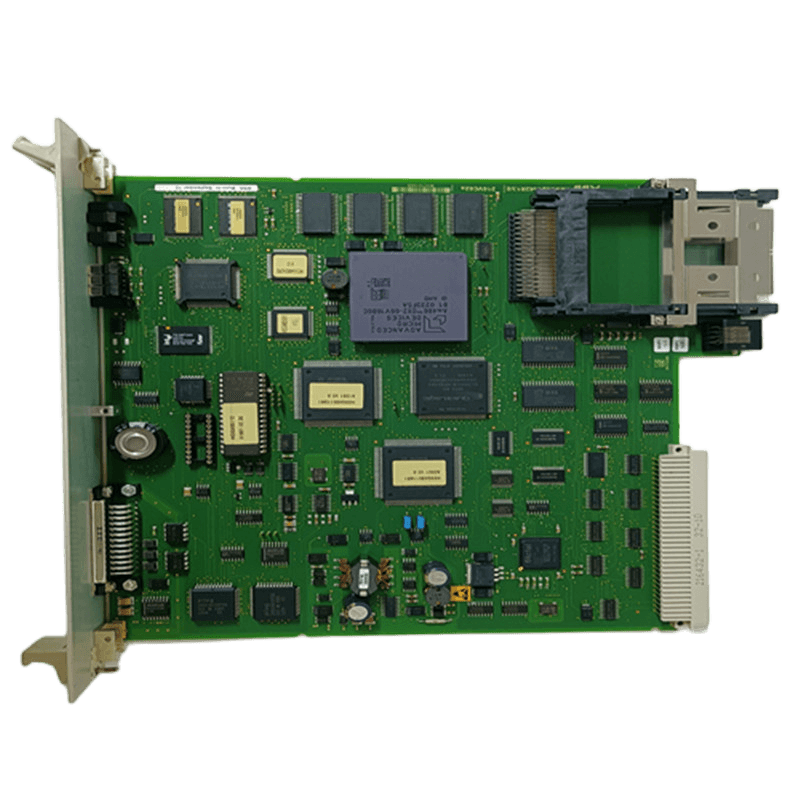

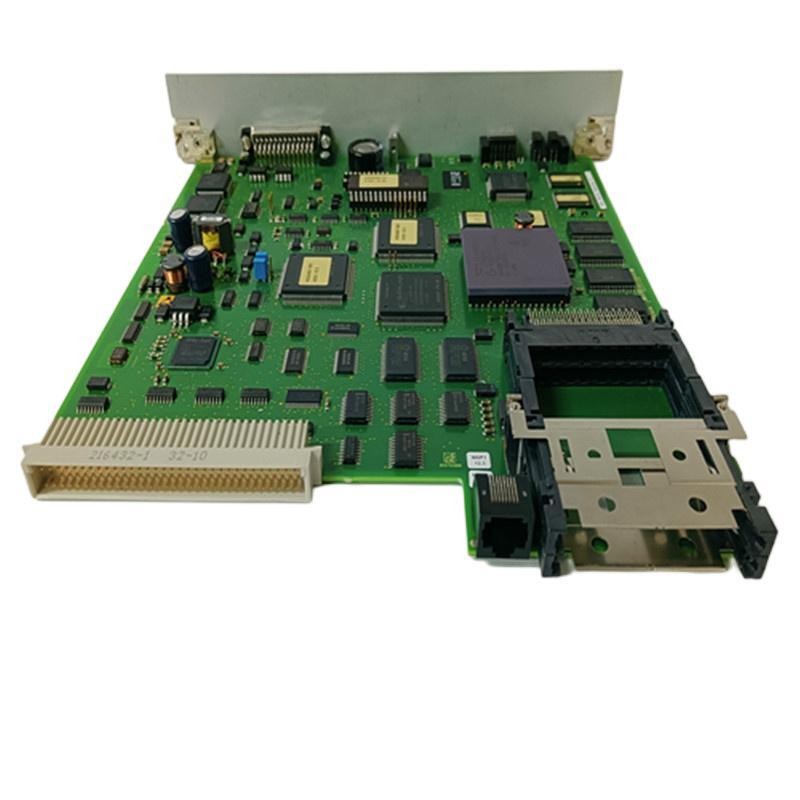

ABB 216VC62a HESG324442R13E HESG324442R112F

The ABB 216VC62A with ordering references HESG324442R13E and HESG324442R112F is a high-performance processor unit board mainly used in ABB REG 216 generator protection systems, substation automation systems (SMS/SAS), and industrial control platforms. It serves as the central computing and communication unit responsible for protection logic execution, data processing, system coordination, and interface management.

Within the ABB 216 series architecture, the 216VC62A acts as a CPU / processor module, working together with I/O modules, power supply units, and communication components to provide deterministic real-time control and protection functions.

Typical system roles include:

• Generator protection processing unit
• Substation automation processor
• Bay-level communication controller
• Protection logic execution core
• Industrial data acquisition and processing module

---

2. Product Parameters

Item	Specification
Manufacturer	ABB
Model	216VC62A
Ordering Codes	HESG324442R13E / HESG324442R112F
Product Type	Processor Unit Board / CPU Module
Application Platform	ABB REG 216 / RE.216 protection system
Main Function	Protection logic processing, communication management, control execution
Memory	Flash memory and EPROM support (configuration dependent)
Expansion Capability	Supports IndustryPack modules
Communication Interfaces	SPA Bus, RS-232/RS-423 interfaces; optional system communication interfaces
Mounting Type	Rack-mounted industrial control board
Construction	Industrial-grade PCB assembly
Application Environment	Power plants, substations, industrial automation systems

The 216VC62A hardware supports processor functions, memory retention for fault/event records, and communication interfaces required by ABB protection and automation systems.

---

3. Core Functions

3.1 Real-Time Protection Processing

The primary function of the 216VC62A is executing protection algorithms and control logic in the ABB REG 216 system.

Functions include:

• Protection calculation
• Trip decision processing
• Alarm and event handling
• Signal logic coordination
• Real-time system supervision

Protection functions stored in the REG 216 software environment can be configured according to plant requirements.

---

3.2 Data Processing and System Coordination

The processor unit manages:

• Input signal processing
• Protection measurement calculations
• Internal communication between modules
• Fault/event recording
• System diagnostics

It provides the computational foundation for high-speed electrical protection applications.

---

3.3 Communication Management

The module provides communication capability between the protection system and external devices.

Supported communication functions may include:

• SPA Bus communication
• Substation monitoring communication
• Serial engineering interfaces
• Bay-level data exchange

The board can operate as an interface between protection equipment and supervisory systems.

---

4. Design Features

4.1 Modular Architecture

The 216VC62A follows ABB’s modular protection-system philosophy.

Advantages:

• Easy replacement
• Flexible system expansion
• Reduced maintenance downtime
• Adaptability for different generator sizes and protection schemes

The REG 216 system uses modular electronic units and configurable software functions, allowing adaptation from small to large generator applications.

---

4.2 High Reliability Industrial Design

Designed for power-system applications, the board emphasizes:

• Continuous operation capability
• Stable processor execution
• Fault data preservation
• Industrial electromagnetic compatibility

---

4.3 Memory Backup Capability

The processor board includes memory support designed to preserve important operational information such as:

• Fault records
• Event lists
• Configuration information

Gold capacitor-backed memory retention is used in some variants to maintain stored information during temporary power interruptions.

---

4.4 Communication Flexibility

The architecture supports multiple communication solutions depending on system configuration:

• Protection relay communication
• Substation monitoring
• Engineering access
• External automation systems

---

5. Hardware Composition

The main hardware sections include:

5.1 Processor Section

Responsible for:

• Execution of protection algorithms
• Logic processing
• System control tasks
• Diagnostic routines

---

5.2 Memory Section

Includes:

• Program memory
• Configuration storage
• Event/fault record storage

Possible memory elements:

• Flash memory
• EPROM socket
• RAM area



---

5.3 Communication Interface Section

Provides:

• Serial communication ports
• System bus connection
• Protection network interfaces

---

5.4 Expansion Interface

Supports additional modules through IndustryPack technology for extended system capability.

---

5.5 PCB and Mechanical Assembly

Typical construction:

• Multi-layer industrial PCB
• Rack mounting structure
• Front-panel communication connectors
• Backplane connection interface

---

6. Application Scenarios

6.1 Power Generation Plants

Used in:

• Thermal power plants
• Hydropower stations
• Nuclear power facilities

Applications:

• Generator differential protection
• Generator monitoring
• Excitation system supervision
• Protection coordination



---

6.2 Electrical Substations

Used for:

• Substation automation
• Bay control
• Protection communication
• Remote monitoring

---

6.3 Heavy Industrial Facilities

Possible applications:

• Large motors
• Industrial power distribution
• Process automation systems

---

6.4 Energy Infrastructure

Suitable for:

• Grid-connected generation
• Transmission systems
• Industrial electrical networks

---

7. Maintenance Points

7.1 Visual Inspection

Regularly check:

• PCB contamination
• Connector oxidation
• Mechanical damage
• Loose rack connections

---

7.2 Environmental Control

Maintain:

• Stable temperature
• Low humidity
• Clean cabinet environment
• Proper ventilation

Avoid:

• Dust accumulation
• Excessive vibration
• Condensation

---

7.3 Communication Checks

Verify:

• Serial communication stability
• Bus communication status
• Error messages
• System diagnostics

---

7.4 Backup and Replacement Strategy

Recommended practices:

• Keep a tested spare module
• Record firmware/configuration information
• Verify compatibility before replacement
• Avoid unauthorized hardware modification

ABB documentation indicates that internal adjustments, wiring changes, and repairs should only be performed by qualified personnel.

---

7.5 Fault Diagnosis

Common fault symptoms:

Symptom	Possible Cause
System cannot start	Power supply or processor failure
Communication loss	Interface or configuration issue
Incorrect protection action	Parameter/configuration problem
Lost event records	Memory backup problem

---

8. Comprehensive Evaluation

The ABB 216VC62A HESG324442R13E / HESG324442R112F is a mission-critical processor module designed for ABB’s high-reliability protection and automation systems.

Strengths

✔ High-speed real-time processing
✔ Designed for power-system protection applications
✔ Modular and expandable architecture
✔ Strong communication capability
✔ Long service life in industrial environments

Limitations

• Legacy ABB architecture; replacement requires system compatibility verification
• Configuration and firmware dependency can complicate interchangeability
• Professional tools may be required for commissioning and diagnostics

Overall Assessment

The 216VC62A remains a valuable component for maintaining ABB REG 216 and related automation installations. It is particularly important in generator protection, substation automation, and industrial power control systems where reliability and deterministic processing are critical.

Overall Rating (Industrial Application): ★★★★★

• Reliability: ★★★★★
• Protection Performance: ★★★★★
• Maintainability: ★★★★☆
• Modernization Compatibility: ★★★☆☆
• Legacy System Value: ★★★★★
