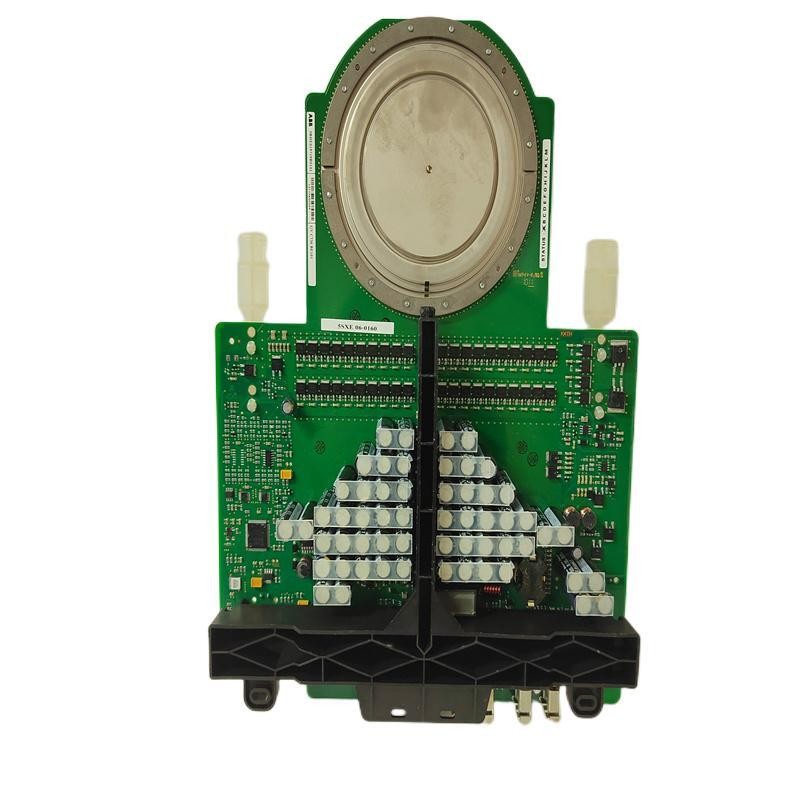

ABB 5SHY3545L0016 3BHB019719R0101

The ABB 5SHY3545L0016 with 3BHB019719R0101 is a high-power Integrated Gate Commutated Thyristor (IGCT) module assembly designed for ABB medium-voltage power conversion systems. It is mainly used as a core switching component in high-power converters, medium-voltage drives, and energy conversion equipment.

The 5SHY3545L0016 is part of ABB’s advanced IGCT semiconductor family, combining the advantages of thyristor technology and transistor-like high-speed switching capability. The module provides high voltage withstand capability, high current handling, low switching losses, and excellent reliability for demanding industrial power applications.

Product Parameters

Core Function

The ABB 5SHY3545L0016 IGCT module performs high-speed switching and power conversion control in high-voltage electrical systems.

Its main functions include:

• High-power switching control
  Enables rapid ON/OFF switching of large electrical currents in converter circuits.

• Voltage conversion regulation
  Supports AC/DC and DC/AC energy conversion processes.

• Motor drive control
  Provides precise power control for medium-voltage motors used in industrial equipment.

• Energy efficiency improvement
  Reduces conduction and switching losses compared with traditional thyristor solutions.

• Reliable fault operation
  Designed for demanding environments requiring continuous operation and high availability.

Design Features

High Voltage Capability

The module supports approximately 4.5 kV voltage-class operation, making it suitable for medium-voltage converters and industrial power systems.

High Current Switching Performance

IGCT technology provides:

• High current density
• Low conduction losses
• Fast switching response
• High short-time overload capability

Integrated Gate Control Technology

The IGCT design integrates advanced gate drive technology, allowing fast commutation and stable switching performance.

Industrial-Grade Reliability

The module is designed for long service life in harsh industrial environments such as:

• Continuous production lines
• Heavy-duty motor drives
• Power conversion stations

Hardware Composition

The ABB 5SHY3545L0016 / 3BHB019719R0101 assembly typically consists of:

• IGCT semiconductor wafer

  • Main power switching element
  • 4500 V voltage class

• Gate driver interface

  • Provides controlled switching pulses
  • Ensures reliable turn-on and turn-off operation

• Power terminals

  • High-current electrical connections

• Thermal interface structure

  • Transfers heat to the cooling system

• Mechanical mounting structure

  • Provides electrical insulation and mechanical stability

Some ABB configurations pair this IGCT with related gate driver and cooling components for complete converter valve assemblies.

Application Scenarios

The ABB 5SHY3545L0016 IGCT module is widely applied in:

Medium Voltage Drives (MV Drives)

Used in ABB high-power drive platforms for controlling:

• Pumps
• Fans
• Compressors
• Conveyors
• Mining equipment

Industrial Motor Control

Suitable for:

• Steel mills
• Cement plants
• Marine propulsion systems
• Large production machinery

Power Conversion Systems

Used in:

• High-power converters
• Renewable energy conversion systems
• Grid-related power electronics equipment

Industrial Energy Systems

Applied where high efficiency, high reliability, and precise power control are required.

Maintenance Considerations

For reliable operation, the following maintenance practices are recommended:

• Inspect cooling systems regularly to prevent overheating.
• Check gate drive signals and fiber-optic communication paths.
• Monitor converter alarms related to overcurrent and overvoltage.
• Verify electrical connections and mounting torque.
• Replace aging thermal interface materials when servicing.
• Perform insulation and semiconductor tests during preventive maintenance.

When replacing IGCT modules, compatibility with the original ABB converter configuration should be confirmed, including gate driver and cooling assembly matching.

Overall Evaluation

The ABB 5SHY3545L0016 3BHB019719R0101 IGCT module is a high-performance power semiconductor component designed for ABB’s medium-voltage and high-power conversion platforms. Its combination of 4500 V voltage capability, high-current switching performance, low losses, and industrial reliability makes it a critical spare part for applications requiring stable long-term operation.
