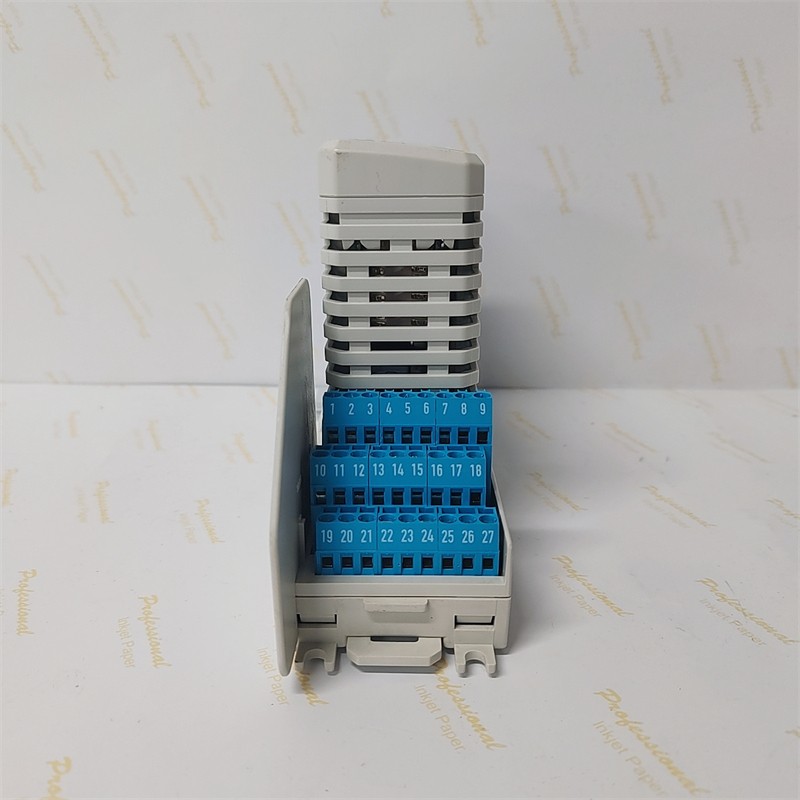

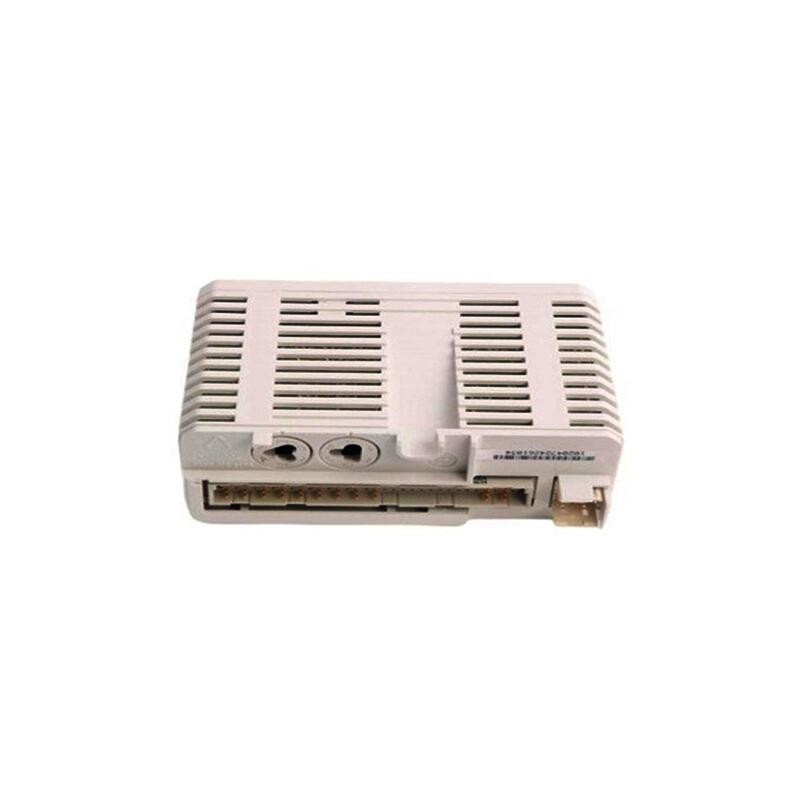

ABB  AI895 3BSC690089R1

The ABB AI895 3BSC690089R1 is an Intrinsic Safety (IS) Analog Input Module designed for the ABB S800 I/O system. It is mainly used in process automation applications where reliable acquisition of hazardous-area field signals is required. The module provides 8-channel 4–20 mA analog input capability with HART communication, allowing direct connection to intrinsically safe two-wire transmitters without additional external safety barriers.

AI895 is commonly integrated with ABB System 800xA and AC 800M controller platforms, providing accurate field signal conversion for industries such as oil & gas, chemical processing, power generation, and other continuous process applications.

Product Parameters

Core Function

The ABB AI895 module performs the following key functions:

• Analog signal acquisition
  Converts 4–20 mA current signals from field transmitters into digital process data for the control system.

• HART communication support
  Enables simultaneous transmission of analog process values and digital diagnostic information through the same current loop.

• Intrinsic safety interface
  Provides built-in safety protection for connecting field devices installed in hazardous environments.

• Two-wire transmitter power supply
  Each channel can power and monitor two-wire process transmitters while maintaining intrinsic safety requirements.

• Reliable process monitoring
  Supports measurement of industrial parameters including pressure, flow, temperature, and level signals.

Design Features

1. Integrated Intrinsic Safety Protection

Each AI895 input channel includes intrinsic safety protection components, enabling direct connection to Ex-certified field instruments and reducing the need for external barriers.

2. Eight Independent Analog Input Channels

The module provides eight 4–20 mA input channels, making it suitable for compact distributed I/O installations where multiple field transmitters must be monitored.

3. HART Instrument Management

With HART capability, maintenance engineers can access transmitter diagnostics, configuration parameters, and additional device information without separate communication wiring.

4. Industrial Reliability

The S800 I/O architecture provides modular installation, easy replacement, and stable operation in demanding industrial automation environments.

5. Compact Modular Structure

AI895 uses the ABB S800 I/O mechanical design and is installed together with compatible Module Termination Units (MTUs), such as TU890 or TU891.

Hardware Composition

The ABB AI895 system configuration typically includes:

AI895 Analog Input Module

• 8-channel 4–20 mA analog input processing unit
• HART communication interface
• Intrinsic safety protection circuits
• LED status indicators for operation and diagnostics

Compatible MTU (Module Termination Unit)

• TU890: Used for intrinsic safety applications
• TU891: Used for non-Ex applications

S800 I/O Communication Infrastructure

The module communicates with ABB controllers through the S800 I/O communication architecture and integrates with ABB System 800xA engineering and operation environments.

Application Scenarios

The ABB AI895 3BSC690089R1 is widely applied in:

Oil & Gas Industry

• Pressure transmitter monitoring
• Flow measurement
• Tank level monitoring
• Hazardous area instrumentation

Chemical and Petrochemical Plants

• Process parameter acquisition
• Reactor monitoring
• Safety-related measurement systems

Power Generation

• Boiler instrumentation
• Turbine auxiliary systems
• Plant process monitoring

Pharmaceutical and Manufacturing Industries

• Precision process measurement
• Distributed control system (DCS) signal acquisition

Maintenance Points

• Verify correct installation with compatible MTU modules such as TU890/TU891.
• Check terminal wiring and intrinsic safety requirements before commissioning.
• Monitor front-panel diagnostic LEDs for module status and HART communication activity.
• Keep the cabinet environment clean and ensure proper ventilation.
• Periodically inspect field wiring, connectors, and signal integrity.
• Use ABB diagnostic tools and System 800xA engineering software for troubleshooting.

Comprehensive Evaluation

The ABB AI895 3BSC690089R1 is a high-reliability analog input module designed for demanding process automation environments. Its combination of 8-channel 4–20 mA acquisition, HART communication, and integrated intrinsic safety protection makes it particularly suitable for hazardous-area applications where reliability and operational safety are critical.
