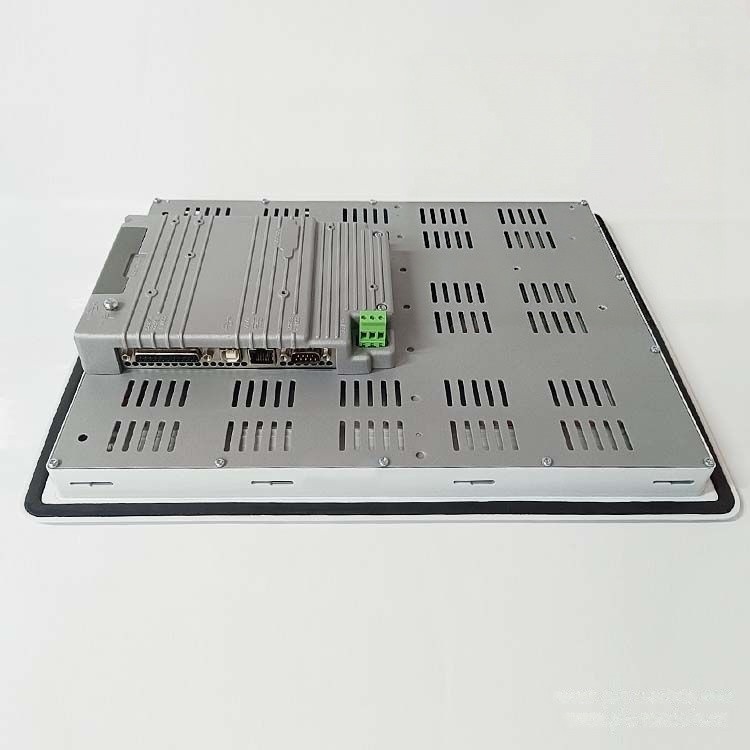

ABB PP865A 3BSE042236R2
The ABB PP865A (3BSE042236R2) is a Panel 800 series industrial touch panel / HMI (Human Machine Interface) designed for operator interaction, process visualization, and equipment control in ABB automation systems. It is mainly used with ABB System 800xA and related industrial control environments, providing a graphical interface between operators and automation processes.
As a high-performance operator panel, PP865A combines a large TFT display, resistive touch operation, and industrial communication interfaces, making it suitable for demanding industrial applications requiring reliable monitoring and control.
Product Parameters
| Parameter |
Specification |
| Manufacturer |
ABB |
| Model |
PP865A |
| Part Number |
3BSE042236R2 |
| Product Type |
Industrial Touch Panel / HMI |
| Product Family |
ABB Panel 800 |
| Display Size |
15-inch TFT LCD |
| Resolution |
1024 × 768 pixels (XGA) |
| Display Type |
Color graphics and text display |
| Touch Technology |
Resistive touch screen |
| Touch Operation Life |
Approx. 1 million operations |
| Power Supply |
+24 VDC (20–30 VDC) |
| Communication Ports |
RS232 / RS422 / RS485 interfaces, Ethernet, USB (depending on configuration) |
| Configuration Software |
Panel Builder 800 Version 5 |
| Front Protection |
IP66 front panel protection |
| Operating Temperature |
0°C to +50°C |
| Storage Temperature |
-20°C to +70°C |
| Weight |
Approx. 3.7–4.6 kg (varies by specification source) |
| Mounting Type |
Panel mounting |
Core Function
1. Industrial Process Visualization
PP865A provides graphical visualization of industrial processes, allowing operators to monitor:
- Process parameters
- Equipment status
- Alarm information
- Trend curves
- Production data
It enables intuitive operation of automation systems through a large color touchscreen display.
2. Operator Control Interface
The HMI allows operators to:
- Start and stop equipment
- Adjust process parameters
- Monitor system conditions
- Access diagnostic information
- Manage alarms and events
3. Communication with Automation Systems
The panel communicates with ABB controllers and industrial automation networks to exchange real-time process information, supporting integration into DCS and PLC-based control architectures. ABB Library
Design Features
Large 15-inch Industrial Display
The 15-inch TFT screen with 1024 × 768 resolution provides clear visualization of complex control graphics, making it suitable for applications requiring detailed process monitoring.
Durable Touchscreen Design
The resistive touchscreen supports operation in industrial environments and can be used with gloves, improving usability on factory floors.
Compact Industrial Construction
The panel features a space-saving design with integrated display, processor, and power electronics, allowing convenient installation in control cabinets and operator stations.
Engineering Compatibility
PP865A requires Panel Builder 800 Version 5 for configuration and application development.
Hardware Composition
The ABB PP865A consists of:
- 15-inch TFT LCD display module
- Resistive touchscreen layer
- Industrial processor unit
- Internal memory system
- Communication interface board
- Power supply circuit
- Rear connection terminals
- Protective front panel assembly
The panel integrates display, control, and communication functions into one industrial HMI platform.
Application Scenarios
ABB PP865A is commonly applied in:
Industrial Automation Systems
- PLC control stations
- Machine operation panels
- Production line monitoring systems
Process Industries
- Chemical plants
- Oil & gas facilities
- Power generation plants
- Water treatment systems
ABB System 800xA Applications
- Operator workstations
- Local control panels
- Equipment monitoring stations
Infrastructure Systems
- Energy management systems
- Factory automation
- Distributed control environments
Maintenance Points
To ensure reliable operation:
- Keep the touchscreen surface clean and avoid excessive mechanical impact.
- Check the 24 VDC power supply stability regularly.
- Inspect communication cables and connectors for corrosion or looseness.
- Maintain proper cabinet ventilation to prevent overheating.
- Use the recommended RX865 touch cover when additional screen protection is required.
- Back up HMI configuration projects before replacement or maintenance.
Comprehensive Evaluation
The ABB PP865A 3BSE042236R2 is a reliable industrial HMI solution within the ABB Panel 800 family. With a large 15-inch TFT touchscreen, robust industrial design, and compatibility with ABB automation platforms, it provides an effective interface for process monitoring and operator control.
