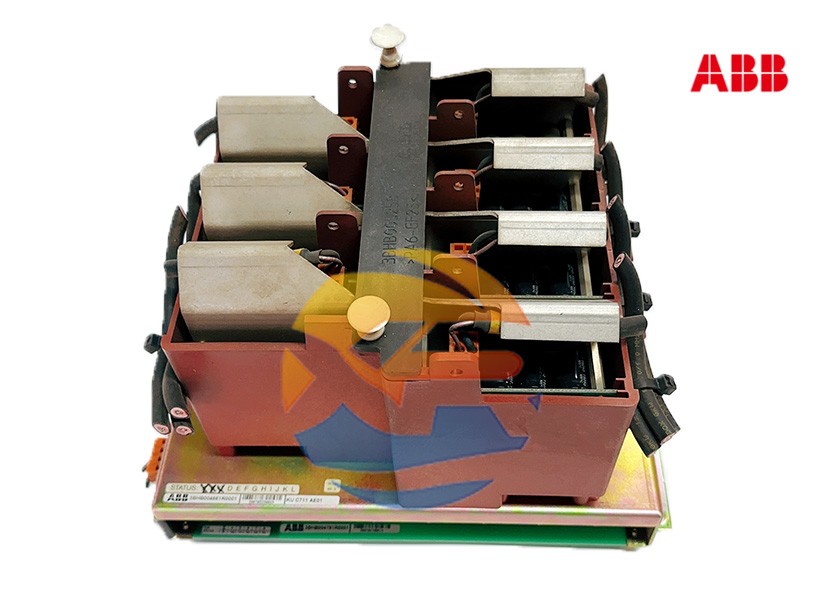

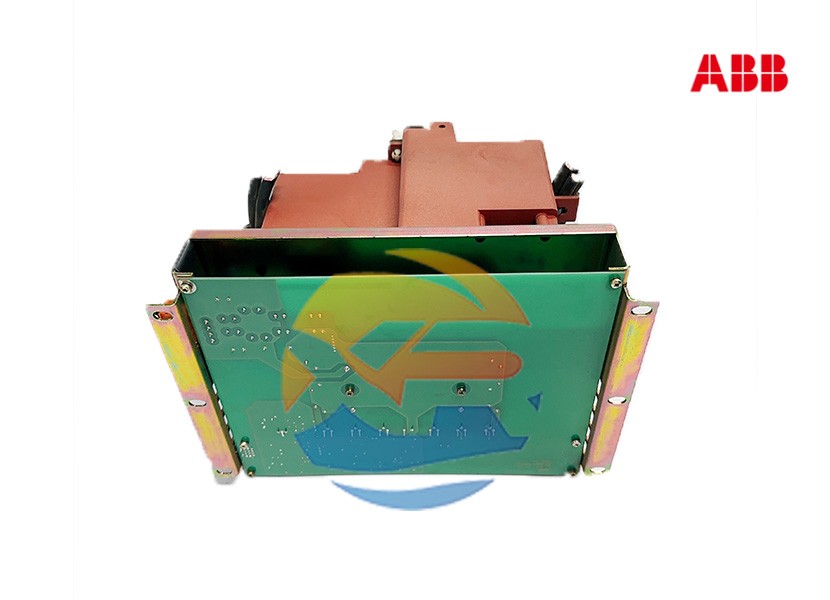

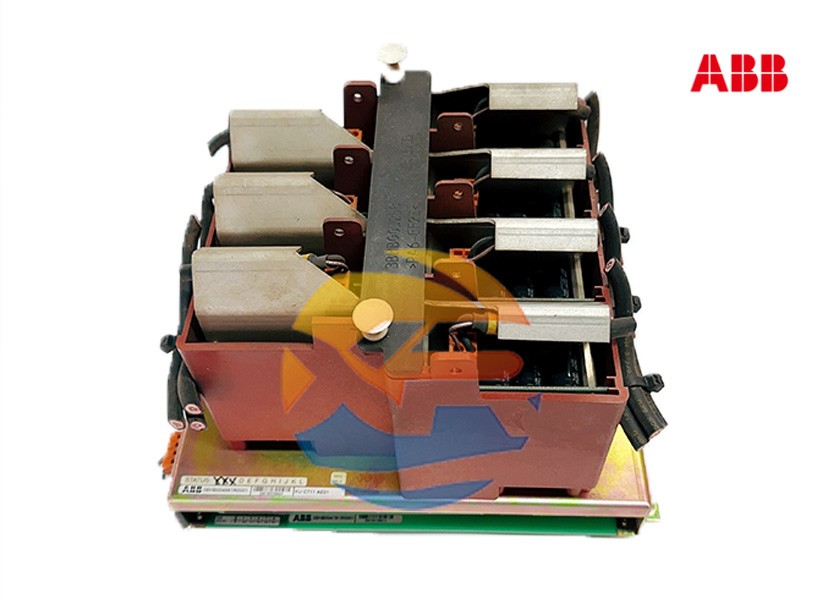

Model：ABB KUC711AE101 3BHB004661R0101

Brand: ABB
Price range (USD): 1000-2000
Country: CHINA
Parameter: Model: KUC711AE101
Part Number: 3BHB004661R0101
Input Voltage: 24V DC ±20%
Output Voltage: 24V DC
Maximum Output Current: 5A
Output Power: 10W
Dimensions: 85×85×35 mm
Weight: Approximately 30 g
Operating Temperature Range: -20°C to 85°C

ABB KUC711AE101 3BHB004661R0101 is a high-performance industrial automation module mainly used for controlling and monitoring industrial processes and equipment. It integrates functions such as power supply, digital input/output, excitation control, and supports multiple communication interfaces (such as Ethernet and serial communication). It is programmable and can achieve precise control of industrial processes and machines through programming

Product parameters
Model: KUC711AE101
Part number: 3BHB004661R0101
Input voltage: 24V DC ± 20%
Output voltage: 24V DC
Maximum output current: 5A
Output power: 10W
Size: 85 × 85 × 35 millimeters
Weight: Approximately 30 grams
Working temperature range: -20 ℃ to 85 ℃
Storage temperature range: -20 ℃ to 85 ℃
Protection level: IP67
Communication interface: Supports Ethernet, serial communication, etc
Response time:<1 millisecond
Accuracy: ± 0.1% (full scale)

Product specifications
Shell material: Aluminum alloy
Input types: single ended and differential
Output type: Relay
Protection functions: overload protection,
short circuit protection, overheating protection

Series and Functions

This module belongs to the KUC711A series and is part of the ABB Advant 800xA control system, suitable for various scenarios in the field of industrial automation

Characteristic

High reliability: Made with high-quality components to ensure long-term stable operation
Efficient and energy-saving: reduce power consumption and heat generation
Easy to install: compact size, easy to install and maintain; Support DIN rail installation
High precision: With an accuracy of up to 0.2% or 0.5%, it is suitable for industrial environments that require precise control
Multifunctionality: Supports multiple communication protocols (such as Modbus TCP/IP, RS-232/485, etc.) for easy integration with other devices

Action and use

The main function of ABB KUC711AE101 3BHB004661R0101 is to provide stable power support and precise control functions for industrial automation systems. It is widely used in the following fields:
Industrial automation: used to control and monitor various industrial equipment and processes, ensuring efficient and reliable operation
Power system: used for controlling equipment such as power transformers and distribution cabinets
Power generation industry: used for excitation control and voltage output regulation in power plants
Oil and gas industry: used for equipment control and monitoring
Chemical processing industry: used for process control in chemical plants
Building automation: used for control of building systems
Infrastructure management: used for monitoring critical infrastructure projects

Application area

This module is suitable for the following application areas:
industrial automation control system
Power system control
Control of frequency conversion equipment in power plants and water treatment plants
Industrial access control system
Access control systems for data centers, government agencies, financial institutions, and other locations
Process control systems for industries such as petrochemicals, metallurgy, and electricity
