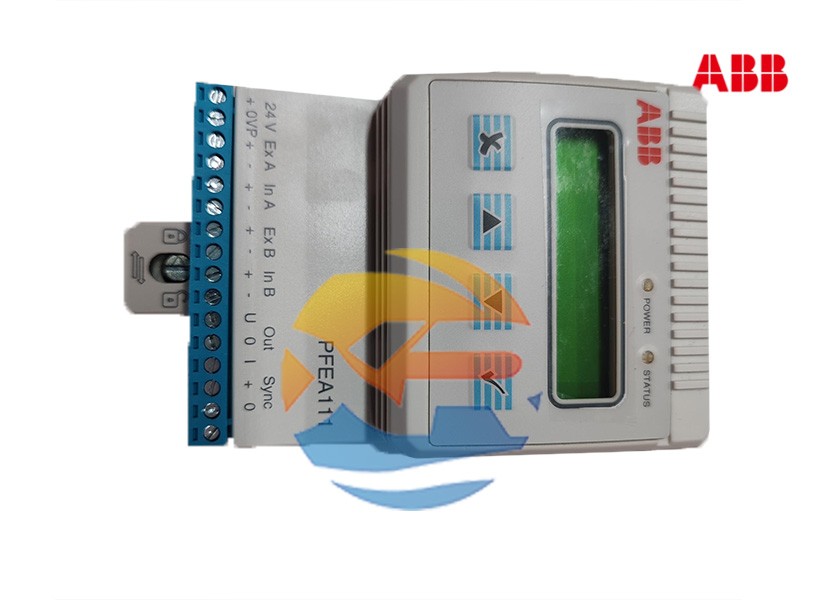

ABB PFEA111-20 3BSE050090R20 Product Overview
Item | Key Parameters / Features |
---|---|
Product Category | Tension Electronic Control Module (Tension Controller), part of the ABB PFEA series of tension control modules. |
Core Function | Precisely measures and regulates material tension during processing to maintain constant tension and prevent breakage, wrinkles, or slack. Supports analog outputs (0-10 V DC / 4-20 mA) for direct integration with PLC, DCS, and other control systems. |
Electrical Specifications | - Input Voltage: 24 V DC - Output Voltage: 0-10 V DC - Power Consumption: Approx. 7.5 W |
Operating Environment | - Temperature Range: -20 °C to +60 °C - Protection Rating: IP20 |
Mechanical Dimensions | Approx. 120 mm × 80 mm × 30 mm; Weight ≈ 0.2 kg |
Communication Interfaces | Standard digital/analog I/O (8 DI, 4 DO, 4 AI, 2 AO); certain versions support RS-232/RS-485 or Ethernet interfaces. |
Typical Applications | - Tension control of roll materials such as paper, film, and metal foil - Process quality assurance in printing, papermaking, plastic film, and textile industries - Automated production lines requiring precise tension monitoring |
Certification / Quality | CE and RoHS certified; original factory packaging; 1-year warranty |
Description

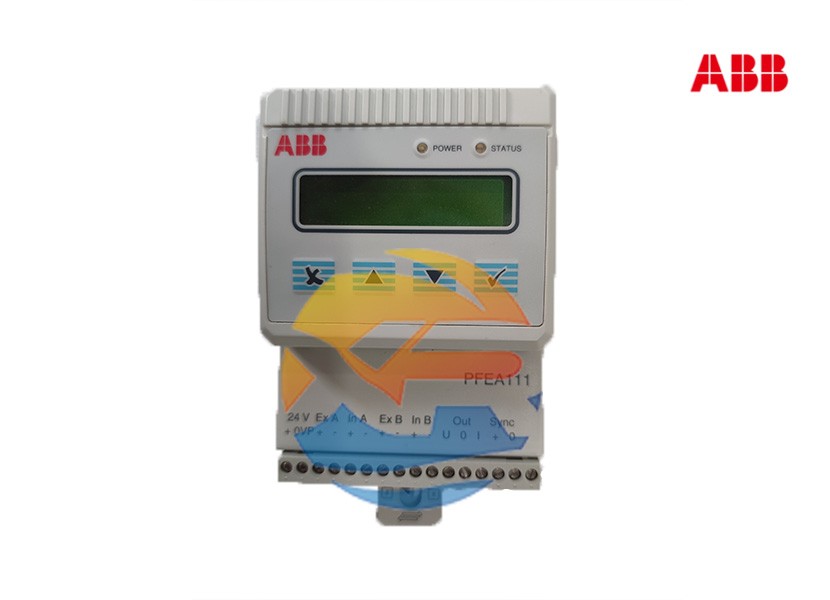

The ABB PFEA111-20 (3BSE050090R20) is an electronic module specifically designed for industrial tension control. Powered by a 24 V DC supply, it provides standard analog output signals (0-10 V DC or 4-20 mA), enabling seamless integration with existing PLC or DCS systems.
With high-precision measurement and built-in self-diagnostics, the module enhances production line reliability and product quality. It is widely used for tension regulation of paper, film, and metal foil in continuous-roll processing.
The PFEA111-20 offers strong environmental adaptability (-20 °C to +60 °C, IP20/IP65 versions) and complies with international standards such as CE and RoHS, making it suitable for demanding industrial environments.
