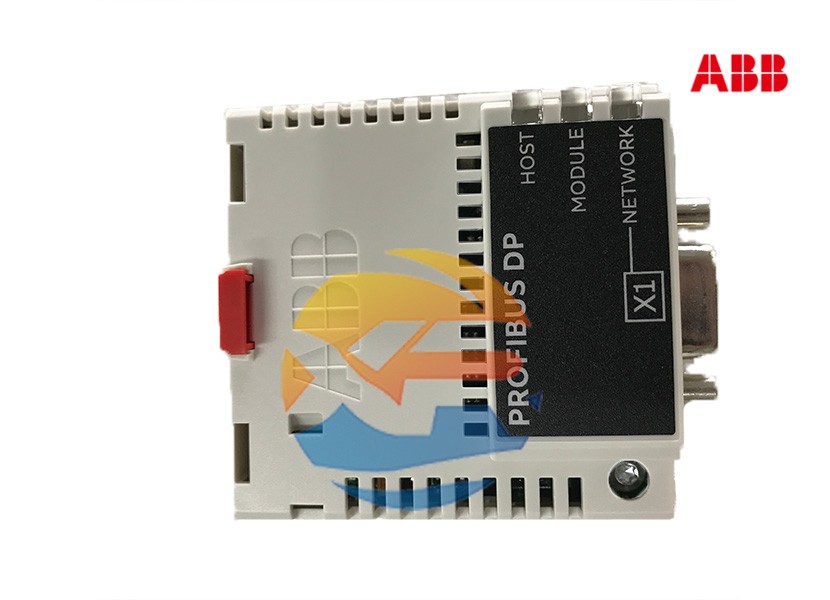

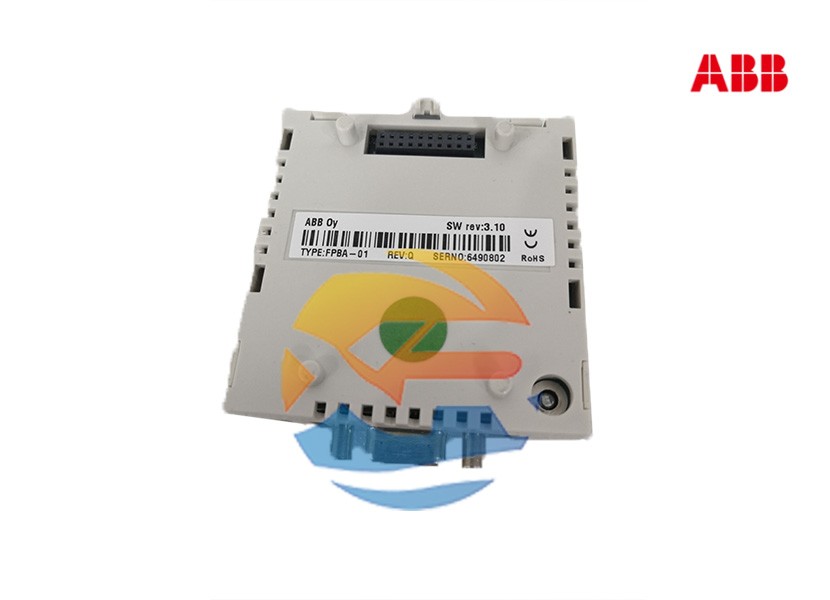

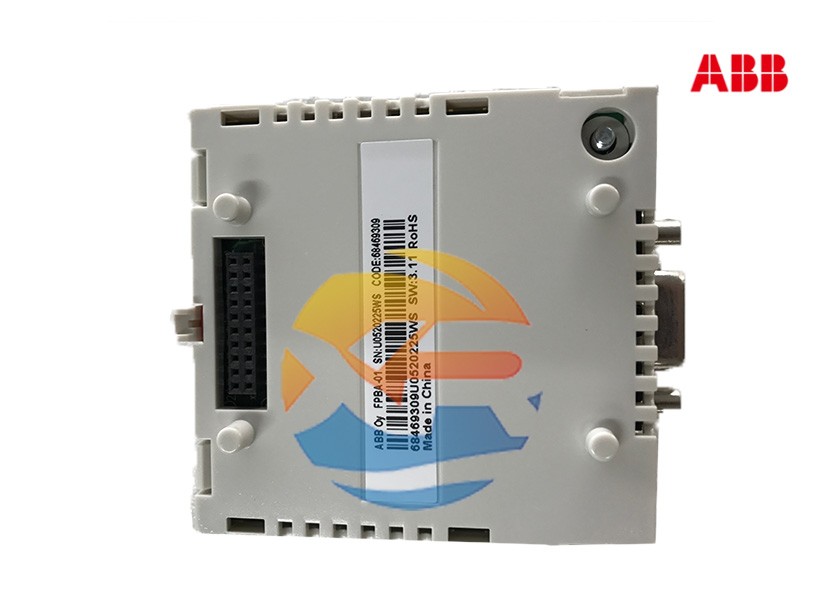

ABB FPBA-01 Overview

Product Positioning

The ABB FPBA-01 is a PROFIBUS DP fieldbus adapter module designed by ABB for its variable frequency drives (VFDs) and motor controllers. It allows ABB drives—such as the ACS380, ACS550, ACS800, and ACS880—to connect to a PROFIBUS DP network, enabling remote monitoring, parameter configuration, and fault diagnostics.

Communication Features

Supports both DP-V0 and DP-V1 communication protocols with automatic message type detection.

Compatible with PPO messages 1-8 and standard messages 1 and 2.

Supported communication profiles include PROFIdrive, ABB Drives, Transparent 16-bit, and Transparent 32-bit modes.

Hardware Interface

Uses a 9-pin (or optionally 25-pin) D-Sub connector. The module is plug-mounted into the drive’s option slot.

Operating voltage: 24 V DC; power consumption: < 5 W.

Transmission rate: 9.6 kbps ~ 12 Mbps.

Environmental Conditions and Dimensions

Operating temperature: -20 °C ~ +60 °C; storage temperature: -40 °C ~ +80 °C.

Protection class compliant with industrial environments (IP65/IP67, depending on model).

Standard dimensions: approximately 89 mm × 30 mm × 25 mm; weight: 135 g – 150 g.

Main Application Areas

Ideal for industrial environments where motor drives need to be integrated into fieldbus networks, such as automated production lines, conveyor systems, pumps, compressors, warehouse logistics, and mining operations.
Through the PROFIBUS DP network, it supports data acquisition, remote control, condition monitoring, and fault diagnostics, improving system reliability and maintenance efficiency.

Installation and Configuration Guidelines

Insert the FPBA-01 module into the drive’s option slot and secure it with screws.

Connect the PROFIBUS cable (shielded twisted pair) and install 220 Ω terminators at both ends (or use active terminators).

Enable the FBA function in the drive parameters (e.g., ACS350/355: parameter 9802 = EXT FBA, or ACSM1: parameter 50.01 = ENABLE) and set the node address and communication profile.

Advantages

Plug-and-play design — enables PROFIBUS DP connectivity without additional hardware.

Highly compatible with various ABB drives and communication profiles, adaptable to different host systems (e.g., Siemens S7, Rockwell Allen-Bradley, etc.).

High reliability: industrial-grade protection, wide temperature tolerance, and low power consumption make it suitable for harsh environments.

In summary, the ABB FPBA-01 is a PROFIBUS DP adapter purpose-built for ABB variable-speed drives, providing a standardized fieldbus interface that facilitates networked and remote management of drive systems.
