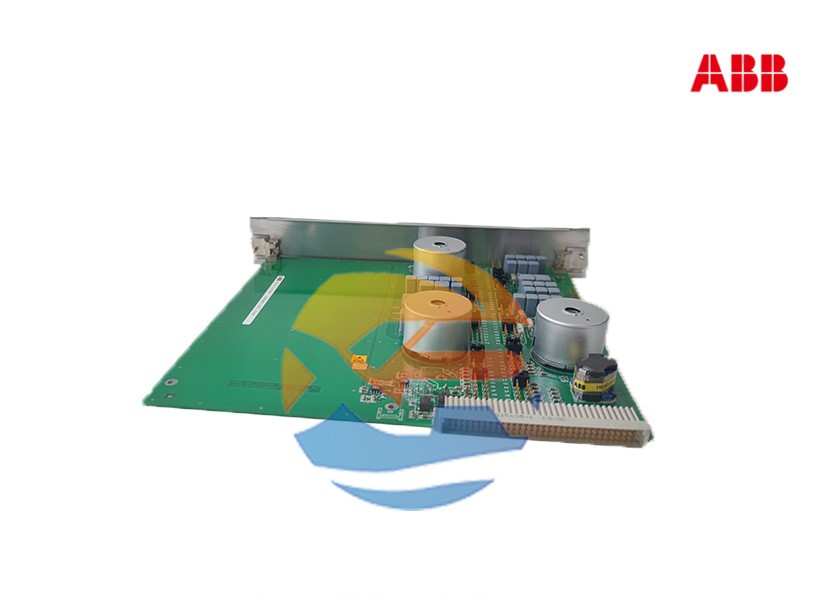

ABB P4LR 1KHL015107R0001 Overview
The ABB P4LR 1KHL015107R0001 is a compact programmable logic controller (PLC) module from ABB’s P4LR series, widely used in industrial automation, process control, and distributed control systems (DCS).
Key Technical Specifications
| Item | Description |
|---|---|
| Model | 1KHL015107R0001 (P4LR) |
| Communication Interfaces | PROFIBUS DP (9-pin D-type connector), transmission rate up to 12 Mbps; also supports Ethernet, CANopen, RS-232/RS-485, and other interfaces |
| Power Supply | 24 V DC, power consumption < 2 W |
| I/O Configuration (typical) | 8 digital inputs, 6 digital outputs; some versions provide 16 digital I/O channels |
| Operating Temperature | –20 °C to +60 °C (storage: –40 °C to +85 °C) |
| Protection Class | IP20 |
| Dimensions / Weight | 82 mm × 30 mm × 23 mm, approx. 80 g |
Features and Functions
High Reliability – Equipped with short-circuit and over-voltage protection; compliant with DIN 43650; supports both point-to-point and multi-master configurations; automatic baud-rate detection.
Multi-protocol Compatibility – In addition to PROFIBUS DP, optional modules enable communication via OPC UA, Modbus, EtherNet/IP, and other industrial protocols.
Modular Design – Can be combined with ABB FlexSystem or other P4LR I/O expansion modules, supporting up to 10 local I/O expansions.
Programming Environment – Configured and programmed using ABB Automation Builder software, enabling offline programming, debugging, and online monitoring.
Typical Applications
Manufacturing – Precision control and monitoring of production lines to enhance productivity and quality.
Energy Sector – Intelligent supervision and protection in power generation and distribution systems.
Building Automation – Centralized control of HVAC, lighting, and security systems.
Transportation & Logistics – Fleet management, warehouse automation, and related applications.
Summary
The ABB P4LR 1KHL015107R0001 is a compact, low-power PLC module featuring PROFIBUS DP and multiple industrial communication protocols. Its modular structure, high reliability, and flexible connectivity make it ideal for a wide range of industrial process control and data acquisition applications.
