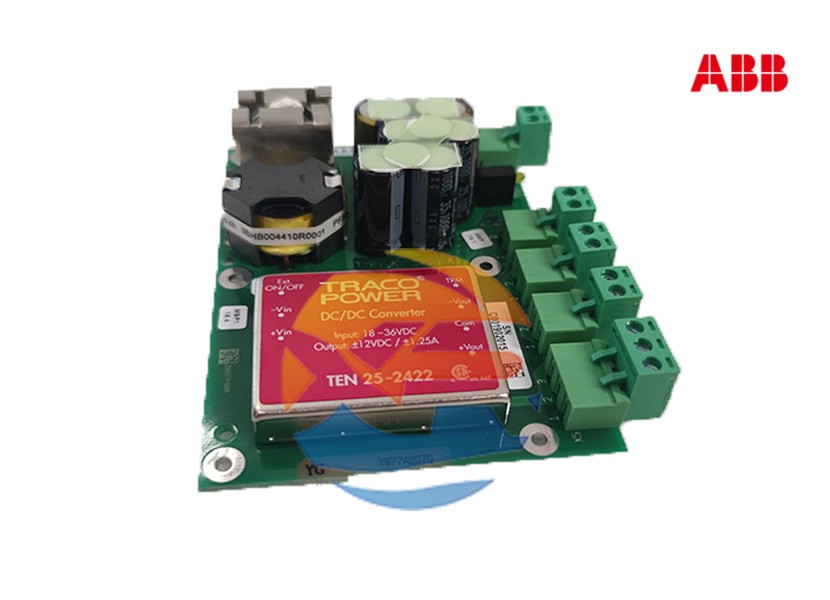

ABB KVC758A124 3BHE021951R1024 OverviewA
The ABB KVC758A124 (3BHE021951R1024) is a high-performance module developed by ABB for industrial automation and process control systems. It is commonly used in DCS/PLC systems, excitation control, and robotic control applications. The following provides an overview of its core features and specifications.
1. Product Positioning and Main Functions
Type: DCS/PLC I/O module; can also function as an excitation controller or Ethernet CIU communication module.
Core Functions:
High-speed digital and analog signal acquisition/output
Support for multiple fieldbus standards (Profibus, Modbus, H1 CI interface, etc.)
Real-time control, remote monitoring, and self-diagnostic capabilities
Full compatibility with other ABB control units (such as AC800M and PM891 series)
2. Key Technical Specifications (Typical Values)
| Parameter | Description |
|---|---|
| Operating Voltage | 24 V DC (some versions support 380 V AC) |
| I/O Channels | Multiple digital and analog I/O channels (4-20 mA, 0-10 V) |
| Communication Interfaces | RS-485, CAN, Ethernet (CIU) |
| Protection Rating | IP20 (industrial version); some models rated IP67 |
| Operating Temperature | −20 °C to +80 °C (some variants −10 °C to +40 °C) |
| Dimensions / Weight | Approx. 185 mm × 100 mm × 110 mm; about 3 kg |
3. Typical Application Areas
Power Systems: Generator excitation control, transformer monitoring
Industrial Manufacturing: Robotic control, automated production lines, logistics and warehousing
Process Industries: Chemical, petrochemical, steel, and water treatment plants
Transportation & Energy: Ultra-high-voltage transmission, rail transit, and other critical infrastructure systems
