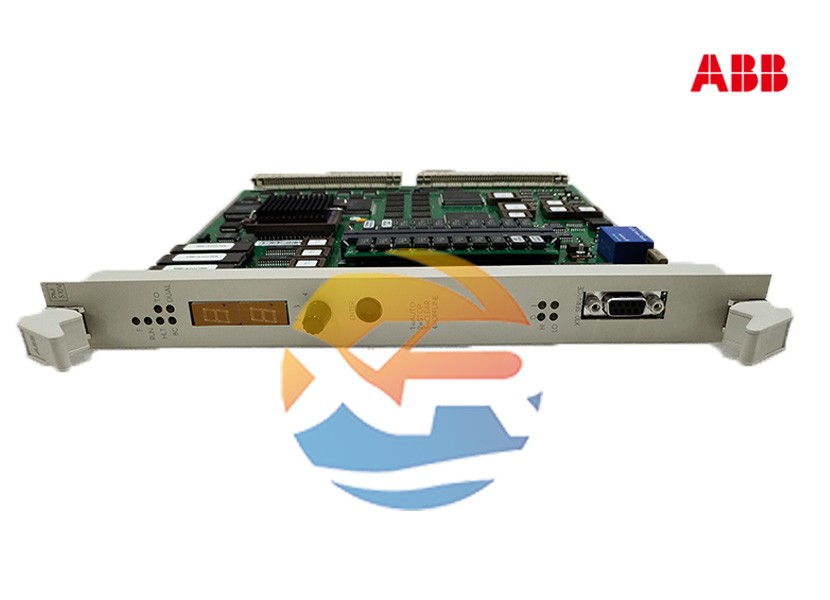

Sweden ABB PM510V16 Processor Module Overview
| Item | Main Parameters / Features | |
|---|---|---|
| Product Positioning | ABB PM510V16 is a High-performance industrial control/processor module, serving as the core computing unit for ABB Advant OCS, DCS, and PLC systems | |
| Processor | PowerPC 440GX, clock speed ≈ 400 MHz | |
| Memory | 16 MB dynamic RAM (with 256 KB Flash in some models) | |
| Communication Interfaces | • Ethernet (dual ports) • RS-232 / RS-485 • CAN • Profibus / FIP | |
| Operating Voltage | 120 – 240 V AC/DC | |
| Operating Temperature | –20 °C to +60 °C (IP20) / –25 °C to +70 °C (IP65) | |
| Dimensions & Weight | Approx. 85 mm × 30 mm × 22 mm; weight ≈ 0.1 kg (compact and lightweight) | |
| Main Functions | • Real-time control and data processing • Multitasking scheduling • Support for multiple industrial communication protocols • ECC error correction for data integrity | |
| Typical Applications | • Power generation, chemical, and oil & gas industries • Building automation and transportation systems • Water / wastewater treatment and manufacturing • Robotics and motion control systems | |
| Certifications | CE, UL, CSA, and other international safety certifications | |
| Additional Features | • PCMCIA slot for expandable storage • Low power consumption (≤ 5 W) • Supports Modbus TCP, IEC 60870-5-104, and DNP3 protocols |
Key Advantages
High-Performance Computing:
Powered by the PowerPC 440GX processor and 16 MB RAM, the PM510V16 delivers fast, reliable real-time control even in demanding industrial environments.
Comprehensive Communication Capabilities:
Multiple Ethernet, serial, CAN, and Profibus interfaces enable easy integration into existing fieldbus and industrial networks.
Modular and Compact Design:
The small form factor and light weight facilitate installation in space-constrained control cabinets, while the PCMCIA slot offers flexible storage expansion.
Reliability and Safety:
With ECC error correction, a wide operating temperature range, and international safety certifications (CE/UL/CSA), the module ensures long-term stable operation.
Broad Applicability:
From power plants and chemical facilities to building automation and robotic systems, the PM510V16 provides the processing performance and communication compatibility required for modern industrial applications.
Example Application Scenarios
Power Systems: Real-time monitoring and control of generator sets and substations.
Process Industries: Process control and data acquisition for chemical, petrochemical, and natural gas production lines.
Building and Transportation: Used in building automation, traffic signal management, and tunnel monitoring systems.
Robotics and Motion Control: Serves as the core computing unit in ABB robot controllers, supporting high-precision motion planning..jpg)
