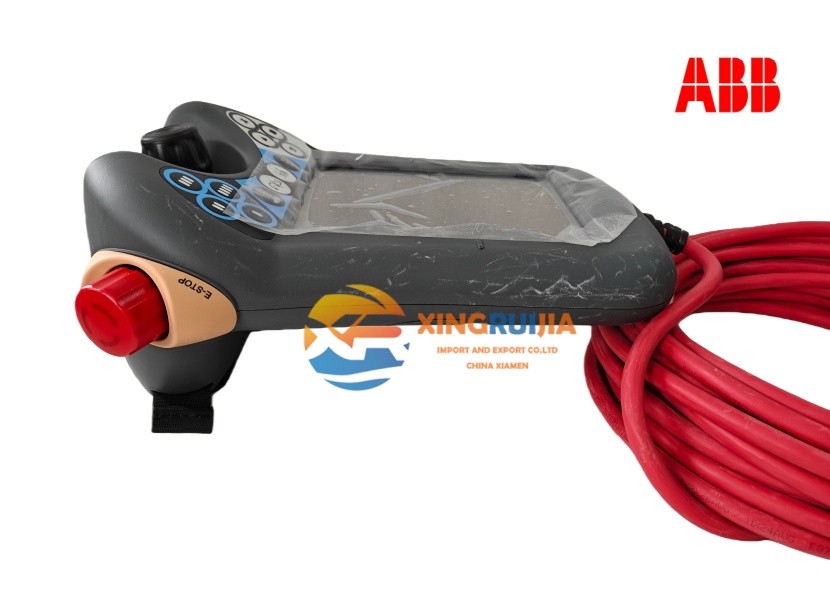

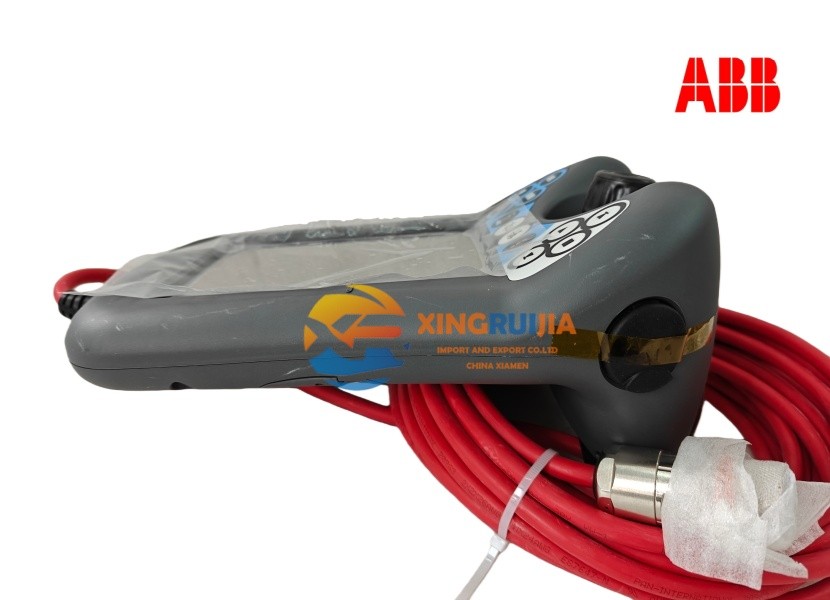

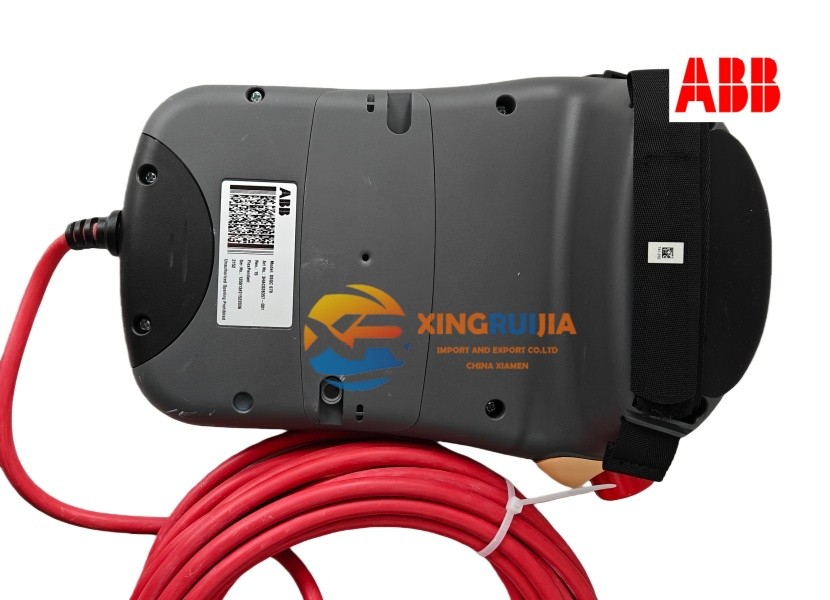

Sweden ABB DSQC679 (Part No. 3HAC028357-001) Overview
Product Type:
Teach Pendant for the ABB IRC5 series robots, also known as the teach pendant keypad membrane.
Main Functions:
Designed for programming, path teaching, and on-site operation of ABB robots. The unit supports both Chinese and English user interfaces and features a 6.7-inch full-color touchscreen for intuitive operation.
Compatible Models:
Suitable for ABB IRC5, IRC5C Compact Controllers, and other ABB robot control systems.
.jpg)
Technical Specifications
(Extracted from ABB official and supplier data)
| Item | Specification |
|---|---|
| Display | 6.7-inch full-color touchscreen |
| Interface | 15-pin connector (for robot connection) |
| Dimensions | Approx. 380 mm × 340 mm × 220 mm |
| Weight | Approx. 3.06 kg |
| Operating Temperature | 0 °C to +55 °C |
| Memory | 16 MB internal, expandable to 128 MB |
| Axis Control | Up to 32 axes |
| I/O Points | 176 points (digital/analog mix) |
| Network Support | DeviceNet, Ethernet/IP, Modbus TCP, ProfiNet IO, etc. |
| Safety Functions | Safety speed monitoring, safe position control, and safe work-zone definition; compliant with IEC 61508 and IEC 62061 safety standards |
Applications
Offline robot programming and on-site debugging
Rapid deployment for automated tasks such as material handling, assembly, welding, and painting
High-risk operations requiring safety monitoring (speed, position, and workspace)
.jpg)
.jpg)
.jpg)
