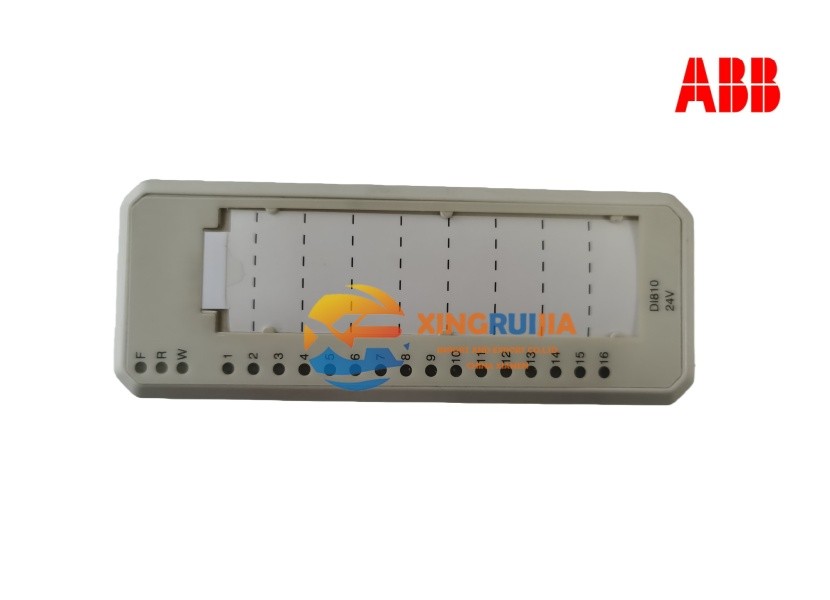

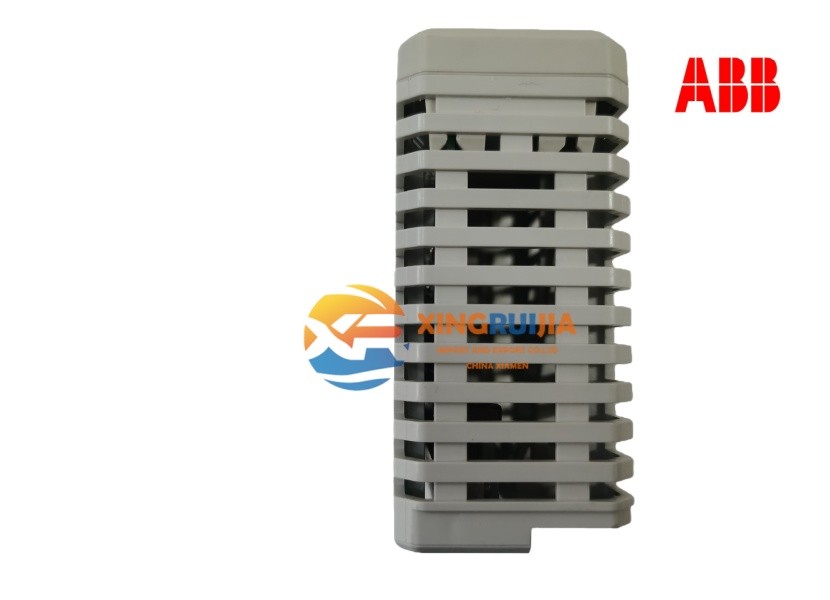

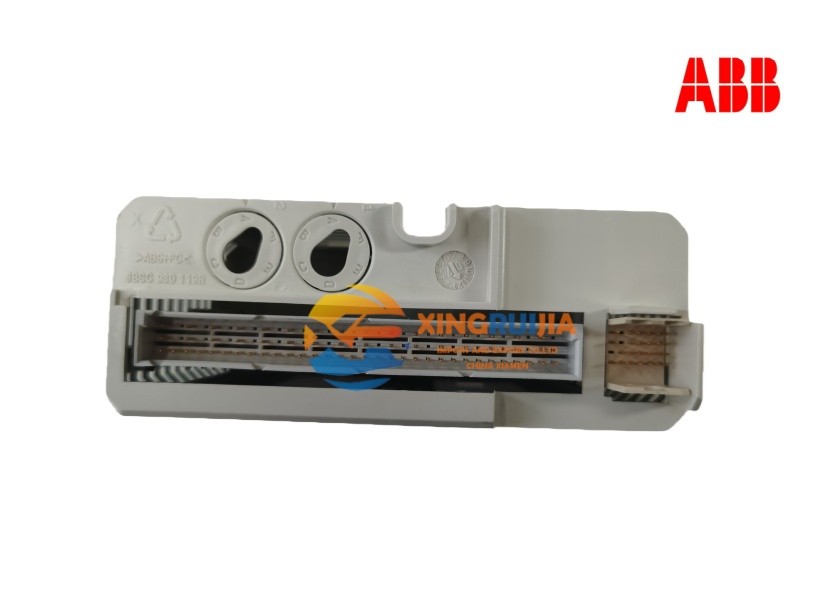

Model：ABB DI810 3BSE008508R1 Digital Input Module

Brand: ABB 2025-11-10
Price range (USD): 2000-4000
Country: Sweden
Parameter: Product Model： DI810 (Order Code 3BSE008508R1)
Function： 24 V DC digital input module, applicable to ABB Advant 800xA, AC 800M, and PLC systems
Number of Channels： 16 digital input channels (divided into two groups of 8 each)

Contact Me

Xiamen Xingruijia Import and Export Co., Ltd. has been specializing in the sales of industrial control equipment spare parts for 20 years. For more ABB models, please refer to the product list . If you need other brands or models, please contact us. We have a variety of brands and models in stock, and we can purchase difficult to order models for you. We look forward to your inquiry!!!

First hand source//affordable price//Spot inventory!

•Shipping Port: Xiamen

•Manager: Rhonda

•E-mail: sales7@saulplc.com

•Tel/WhatsApp/Wechat: + 86-15359273796

•Ship to you via Fedex/DHL/TNT/UPS/EMS

•Package: Original packing with cartons

==============================================================================================================================================

ABB DI810 (Part No. 3BSE008508R1) Digital Input Module Overview

Item	Main Parameters
Product Model	DI810 (Order Code 3BSE008508R1)
Function	24 V DC digital input module, applicable to ABB Advant 800xA, AC 800M, and PLC systems
Number of Channels	16 digital input channels (divided into two groups of 8 each)
Input Voltage	24 V DC (operating range 18–30 V DC)
Input Current	6 mA (at 24 V)
Isolation	Two electrically isolated groups, isolation voltage 500 VAC
Voltage Supervision	One voltage monitoring input per group, capable of detecting power loss and generating fault signals
LED Indicators	Each channel equipped with a status LED for on-site diagnostics
Protection Class	IP20 (for DIN-rail mounting)
Dimensions	Approx. 102 mm × 119 mm × 45 mm
Weight	Approx. 0.15 kg – 0.3 kg
Operating Temperature	0 °C ~ +55 °C
Communication Interface	Supports Profibus DP, Modbus TCP/IP, ModuleBus (AF100), and other fieldbuses
Additional Features	– Input impedance ≈ 3.5 kΩ – Selectable input filter time: 2 / 4 / 8 / 16 ms – Max. field cable length 600 m – Diagnostic indicators: fault, run, warning, and channel status
Applicable Industries	Power generation, steel, cement, pulp & paper, marine, and general manufacturing automation and process control

Key Advantages

High Reliability:
Dual-group isolation design, EMC protection, and current-limiting components ensure signal integrity in noisy industrial environments.

Flexible Integration:
Seamless communication with host systems via Profibus DP, Modbus TCP/IP, and AF100 fieldbus interfaces.

Field Diagnostics:
Per-channel LEDs and voltage monitoring inputs enable quick fault identification and troubleshooting.

Modular Design:
Compact DIN-rail mount module allows easy cabinet installation and I/O expansion.

Typical Application Scenarios

Discrete signal acquisition (e.g., switches, sensors, alarms) in large-scale industrial facilities such as power plants, steel mills, and cement plants.

High-speed digital input for safety loops or status monitoring in process control systems.

Centralized management of multi-point discrete signals in machine automation, integrated with PLC/DCS for logic control.
