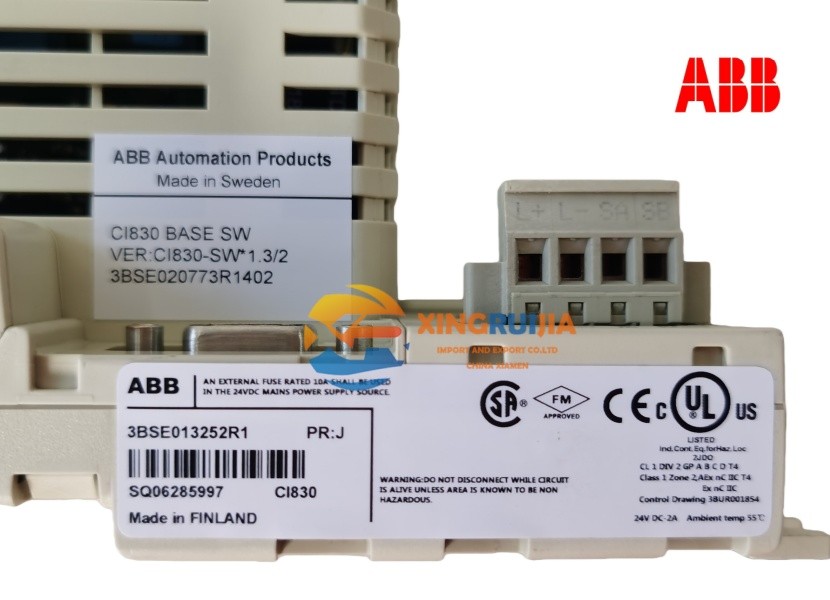

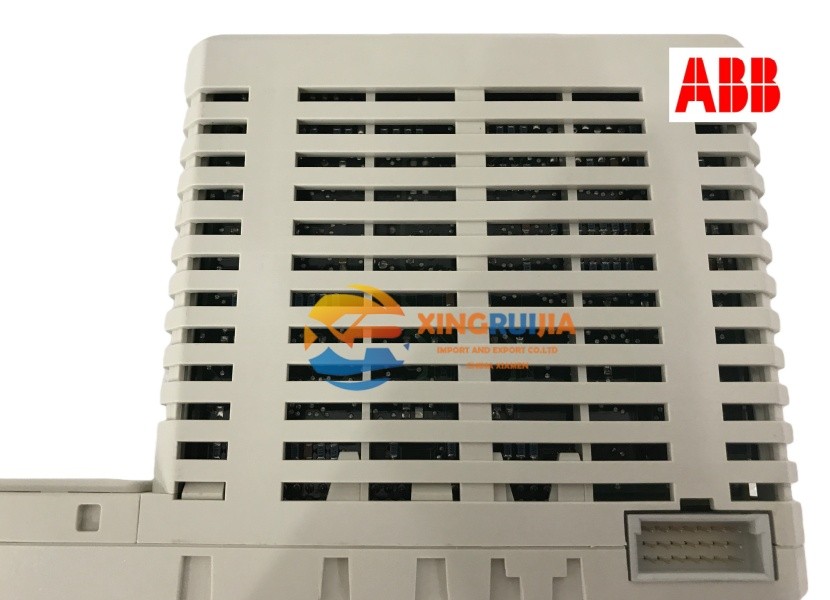

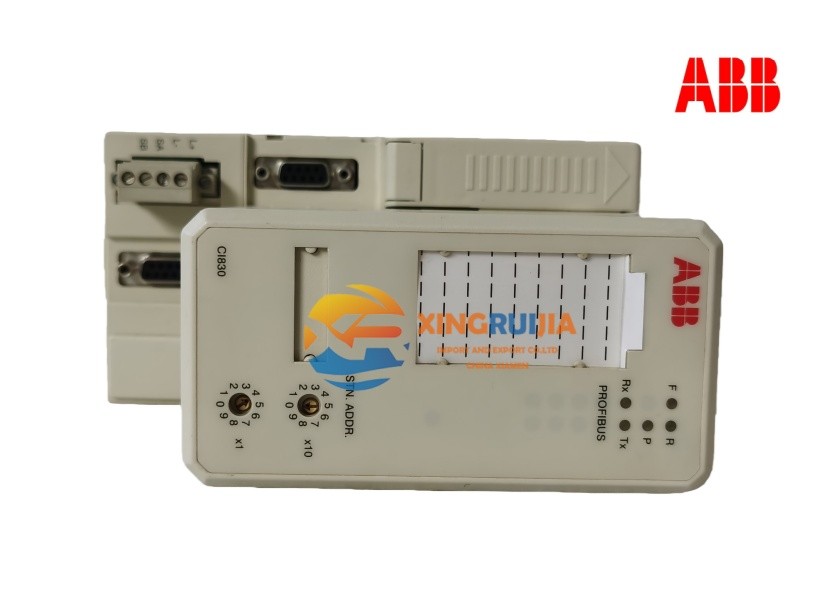

ABB CI830 Overview
The ABB CI830 (Model 3BSE013252R1) is a Profibus DP communication interface module designed for industrial automation systems. It connects ABB S800 I/O or Advant 800xA systems to a Profibus DP network, enabling reliable fieldbus data transmission and control.
| Item | Key Parameters |
|---|---|
| Product Type | Profibus DP Fieldbus Communication Module (FCI Series) |
| Compatible Systems | ABB S800 I/O (Versions 4.0/4.1/5.0) and Advant 800xA Systems |
| Model / Part Number | 3BSE013252R1 (also known as CI830) |
| Power Supply | 24 V DC ± 20 % (powered by SD821/SD822/SD823 or external battery) |
| Operating Temperature | –40 °C to +70 °C |
| Dimensions | 120 mm × 120 mm × 62 mm (DIN-rail mounting) |
| Weight | Approx. 0.33 kg |
| Communication Protocol | Profibus DP V1 (compatible with Profibus DP-V1) |
| Interface | 9-pin D-sub connector (for Profibus-DP bus) |
| Main Functions | - Connects S800 I/O modules to Profibus DP networks - Supports stand-alone and redundant operation (with CI840 for full redundancy) - Provides 24 V DC isolated input for power monitoring - Supports Hot Configuration in Run (HCIR) and HART pass-through |
| Typical Applications | Power, process, and motion control industries requiring reliable fieldbus communication |
Technical Highlights
High speed and reliability:
Equipped with a 32-bit processor for fast data acquisition and transmission, meeting real-time control requirements.
Modular design:
Fully compatible with other ABB CI-series modules (CI801, CI810, CI820, CI840), providing a flexible communication solution that supports both redundant and non-redundant configurations.
Summary
The ABB CI830 serves as a critical Profibus DP communication bridge within the ABB S800 I/O and Advant 800xA systems. With its robust electrical design, wide operating temperature range, and flexible redundancy options, it is widely deployed in industrial control environments that demand high-reliability fieldbus communication..jpg)
