ABB PM862 Overview

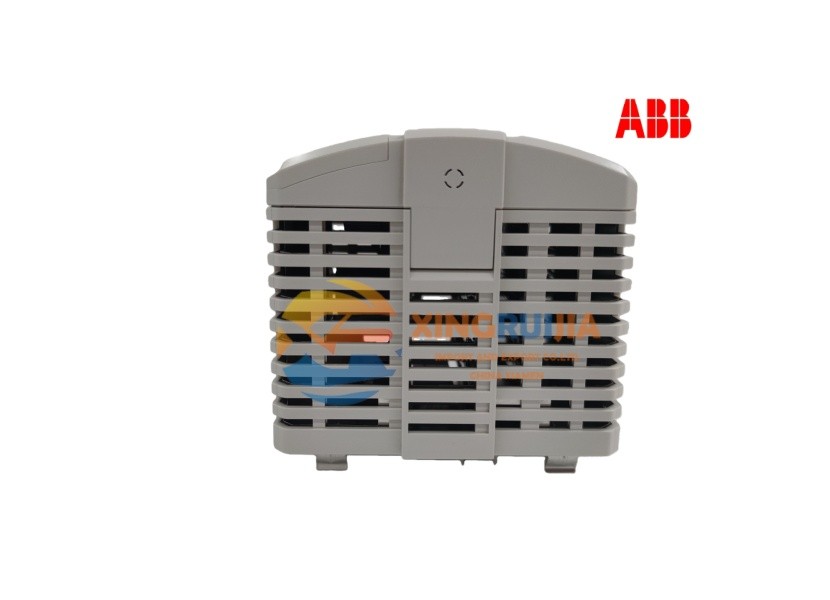

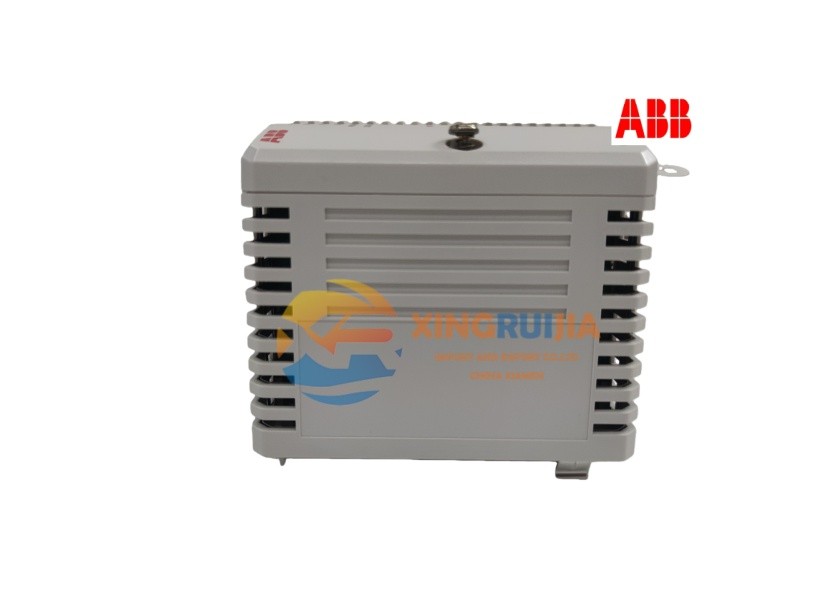

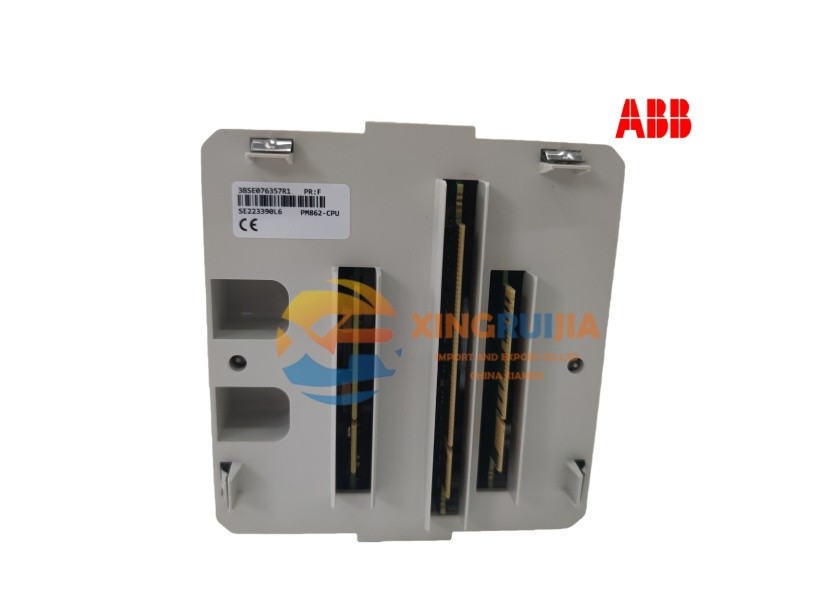

The ABB PM862 is a redundant processor unit designed for the AC 800M / 800xA series, serving as the core control component in industrial process automation systems. It is typically available in two models—PM862K01 (Part No. 3BSE076940R1) and PM862K02 (Part No. 3BSE081636R1)—and is used together with the TP830 baseplate and TB807 bus terminators to form a complete controller package..jpg)
Main Technical Features
| Item | Description |
|---|---|
| CPU and Memory | Dual-CPU redundant design; CPU frequency approx. 67 MHz; memory 32 MB (optional 64 MB for some models) |
| Storage Medium | Supports CompactFlash cards for program download and backup |
| Communication Interfaces | - Two RJ45 Ethernet ports (CN1, CN2) - Two RJ45 serial ports: COM3 (RS-232C with modem signals) and COM4 (isolated configuration port) |
| Redundancy and Reliability | Dual-CPU redundancy ensures high availability; certified to ISA and EMC safety standards; protection class IP20 |
| Software Compatibility | Compatible with 800xA Control Builder 6.0.2 and later versions; supports Compact Control Builder |
| Operating Environment | Operating temperature 0 °C to 55 °C (some models −25 °C to 70 °C); Power supply 24 V DC |
| Application Fields | Process control, batch production, and infrastructure industries such as oil & gas, chemical, pulp & paper, textile, and power generation |
| Package Contents | Typically includes 2 PM862 CPUs, 2 TP830 baseplates, 2 TB807 bus terminators, RCU-Link cable, and backup battery |
Common Models and Part Numbers
| Model | Part Number | Description |
|---|---|---|
| PM862K01 | 3BSE076940R1 | Main processor unit |
| PM862K02 | 3BSE081636R1 | Redundant processor unit, typically paired with K01 for dual-CPU operation |
Selection and Procurement Notes
Redundancy Configuration:
For critical process applications (e.g., refining, continuous chemical production), it is recommended to purchase both K01 and K02 units to enable full CPU redundancy.
Compatibility Check:
Ensure that the system’s 800xA / AC 800M software version is 6.0.2 or later to guarantee full functionality.
Accessories:
When purchasing, confirm that TP830 baseplates, TB807 terminators, RCU-Link cables, and backup batteries are included to avoid downtime due to missing components.
Reference Sources
Product technical documentation, part numbers, and hardware specifications
Redundant processor unit packaging list and performance data
Official ABB product page information on certifications, communication interfaces, and software compatibility
Supplier quotations and typical application scenarios
Summary
The ABB PM862 series is a high-reliability redundant processor designed for industrial automation. With its dual-CPU architecture, versatile Ethernet and serial communication interfaces, CompactFlash storage, and ISA/EMC-compliant design, it serves as a critical control node within AC 800M / 800xA systems.
When selecting a model, users should consider software version compatibility, redundancy requirements, and the completeness of accompanying hardware to ensure optimal system performance.
